제조사부품번호

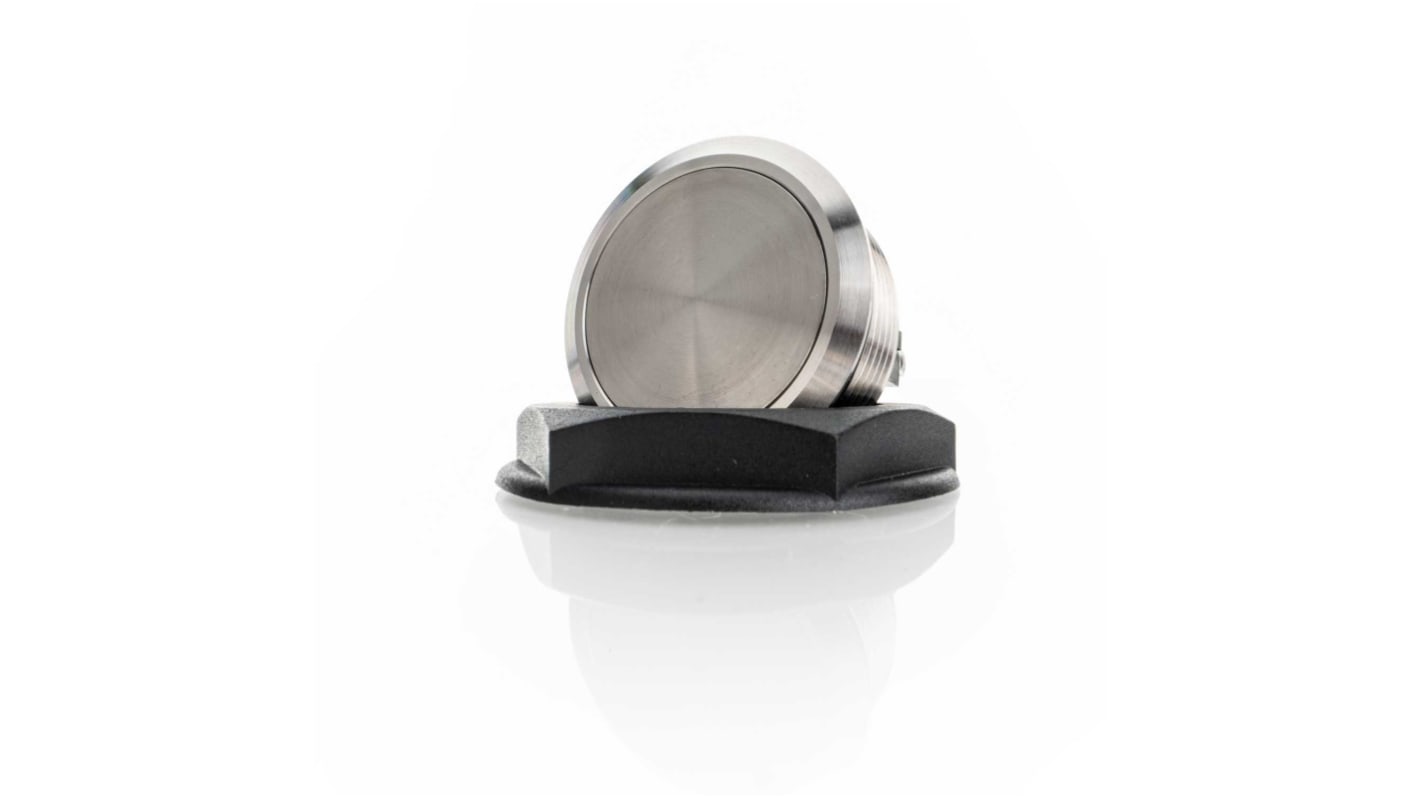

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 32mm Cutout, SPDT, Clear LED, 250V ac, IP67

RS 재고 번호:: 240-1231
제조 부품 번호:: 76-9512/4044
제조업체:: ITW Switches

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 32mm Cutout, SPDT, Clear LED, 250V ac, IP67

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩49,707.20

재고있음

140 개 단위 배송 준비 완료
추가로 2025년 12월 22일 부터 30 개 단위 배송
추가로 2026년 1월 20일 부터 200 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 - 6	₩49,707.20
7 - 12	₩48,222.00
13 +	₩46,755.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 240-1231
제조 부품 번호:: 76-9512/4044
제조업체:: ITW Switches

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ITW Switches
	Switch Operation	Momentary
	Illuminated	No
	Series	76-95
	Panel Cut Out Diameter	32mm
	Mounting Type	Panel Mount
	Push Button Colour	Silver
	Contact Configuration	Single Pole Double Throw (SPDT)
	Voltage Rating	250V ac
	Push Button Style	Round
	LED Colour	Clear
	IP Rating	IP67
	Contact Current Rating	10 A @ 250 V ac
	Contact Material	Fine Silver
	Case Colour	Silver
	Contact AC Voltage Rating	250V
	Manufacturer Part No.	76-9512/4044
	Contact DC Voltage Rating	5V
	Operating Temperature Range	-30 → +105°C
	Minimum Operating Temperature	-30°C
	Terminal Type	Solder
	Maximum Operating Temperature	+105°C

	모두 선택
	브랜드 ITW Switches
	Switch Operation Momentary
	Illuminated No
	Series 76-95
	Panel Cut Out Diameter 32mm
	Mounting Type Panel Mount
	Push Button Colour Silver
	Contact Configuration Single Pole Double Throw (SPDT)
	Voltage Rating 250V ac
	Push Button Style Round
	LED Colour Clear
	IP Rating IP67
	Contact Current Rating 10 A @ 250 V ac
	Contact Material Fine Silver
	Case Colour Silver
	Contact AC Voltage Rating 250V
	Manufacturer Part No. 76-9512/4044
	Contact DC Voltage Rating 5V
	Operating Temperature Range -30 → +105°C
	Minimum Operating Temperature -30°C
	Terminal Type Solder
	Maximum Operating Temperature +105°C

76-95 Series-0615 Datasheet

Large Actuation Area Switches

The 76–95 series are best suited to applications where vandal resistance is a necessity and have been designed to withstand a high degree of impacts. The body and buttons of the switch have been machined from hard-wearing stainless steel.

They have a panel sealed IP67 rating and come in either front mount or rear mount versions. Both types have been designed to reduce the possibility of a vandal forcing an object behind the switch to lever it from its mounting.

They are momentary action and have solder terminals at the rear of the switch. Terminals are tin plated bass with a nickel lash undercoat. The contacts are made of a fine silver material helping to prolong life and increase reliability.

IP67 sealed with microswitch action for use in harsh environments
The flush mounting with low profile and the large actuation area make this unit ideal for public usage
Momentary action n/o + n/c contacts
Contact Rating: 10A / 250Vac; 5A / 28Vdc

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 32mm Cutout, SPDT, Clear LED, 250V ac, IP67

Large Actuation Area Switches

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
