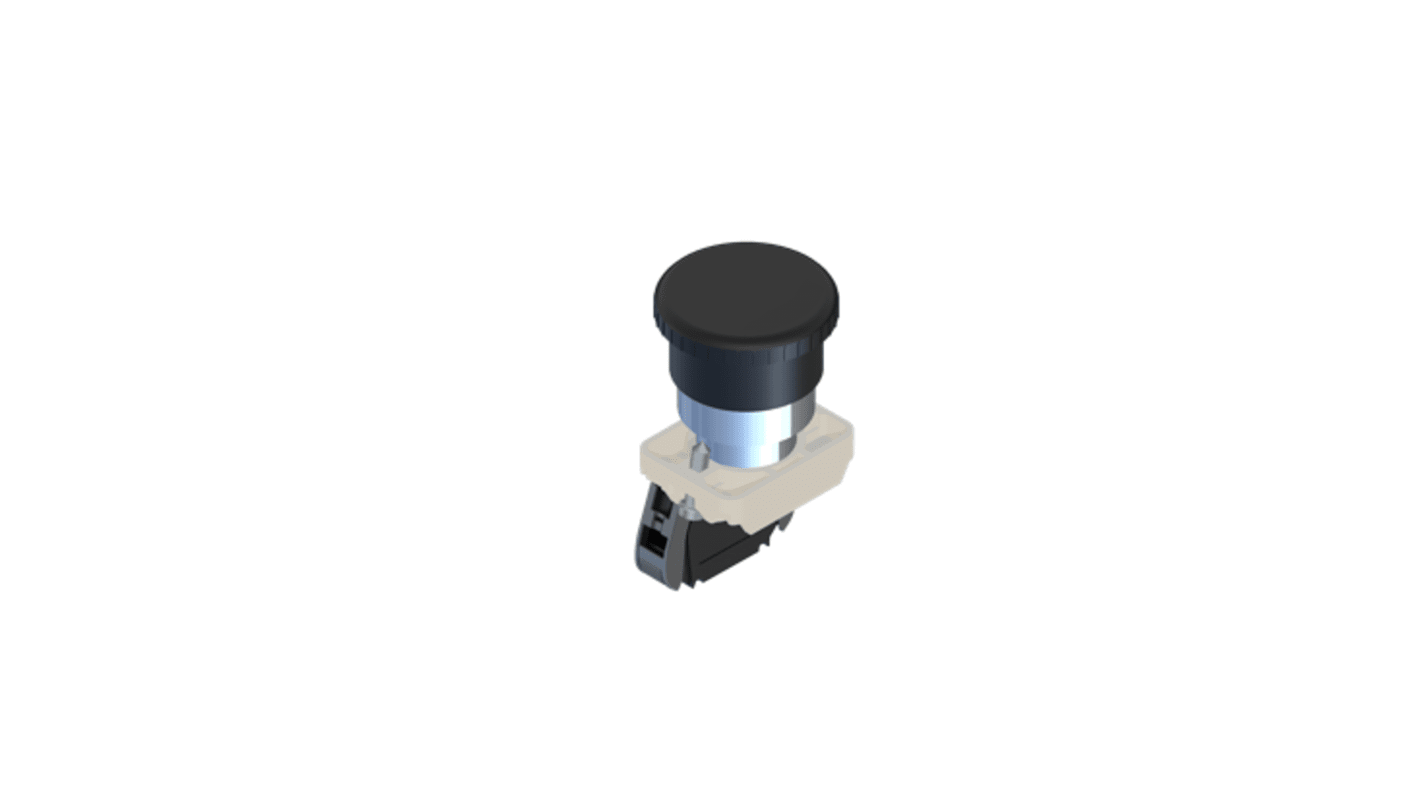

RS PRO ECX1 Series Push Button Complete Unit, Panel, 22.5 mm Cutout Black, SPST, IP65

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩30,625.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 19일 부터 11 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩30,625.20
5 +₩25,210.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
239-8186
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Push Button Complete Unit

Illuminated

No

Cutout Diameter

22.5mm

Series

ECX1

Push Button Actuation

Momentary

Mount Type

Panel

Push Button Colour

Black

Contact Configuration

SPST

Push Button Style

Mushroom

Push Button Shape

Mushroom

Terminal Type

Screw

IP Rating

IP65

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

70°C

Standards/Approvals

UL, EN, UKCA, CE

Hazardous Area Certification

No

Body Material

Chrome Plated Zamak

COO (Country of Origin):
IT

RS PRO Non-Illuminated Push Button Complete Unit


RS PRO is proud to introduce this mushroom style push button complete unit made from the highest quality materials and include a momentary actuation contact block, and support base.

Upon inspection, the push button head is non-illuminated, has a Chrome-Plated Zamak casing, 1NO contact block configuration and support base which mounts securely into panels up to 6mm thick eliminating movement in the mounting hole.

Push buttons units are mechanical devices designed to open or close electrical contacts. They are commonly used in start/stop machine applications. They are front panel mounted via a 22 mm cut-out and should be connected to a support base secured with screws.

Features and Benefits


  • Front panel mount

  • Mushroom push button head

  • Illuminated

  • Push button Actuation: Momentary

  • Colour: Black

  • 24 VAC/VDC

  • Contact Configuration: 1NO

  • Support base

  • Connecting Terminals: Screw with captive cable clamp

  • Cut-out Diameter: 22.5 mm

  • Outer diameter: 40 mm

  • IP Rating: IP65, IP20

    • Applications


  • Automotive

  • Building and Public Works

  • Industrial Controls

  • Control System

  • Lighting Controls

  • Medical Equipment

    • Why would you choose RS PRO Push Button Complete Units?


    RS PRO offer a comprehensive range of push button complete units which include non-illuminated and illuminated. Each unit is of the high-quality, available in a variety of switch actuations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
