TE Connectivity PB7 Series Push Button Switch, On-On, Panel, 13.6 mm Cutout, 1 NC, Blue, Green, Red, White, Yellow LED,
- RS 제품 번호:
- 239-6737
- 제조사 부품 번호:
- PB7B2FM3M1CAL00Y500
- 제조업체:
- TE Connectivity

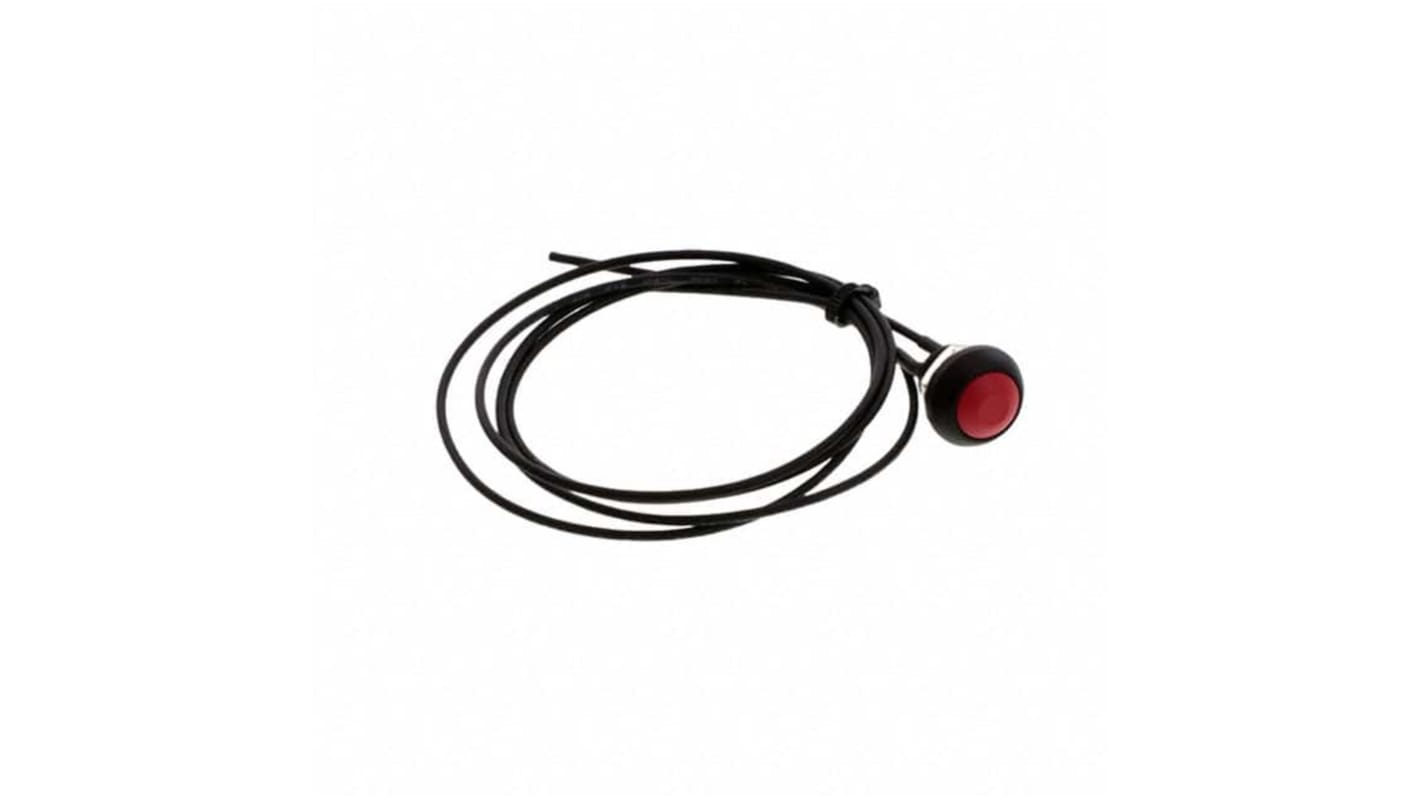

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 239-6737
- 제조사 부품 번호:
- PB7B2FM3M1CAL00Y500
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Push Button Switch | |
| Switch Operation | On-On | |
| Illuminated | No | |
| Panel Cutout Size | 13.6 mm | |
| Series | PB7 | |
| Mount Type | Panel | |
| Contact Configuration | 1 NC | |
| Terminal Type | Solder | |
| LED Colour | Blue, Green, Red, White, Yellow | |
| IP Rating | IP68 | |
| Contact DC Voltage | 50V dc | |
| Contact AC Voltage | 125V ac | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SP | |
| Standards/Approvals | RoHS | |
| Length | 50mm | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Push Button Switch | ||
Switch Operation On-On | ||
Illuminated No | ||
Panel Cutout Size 13.6 mm | ||
Series PB7 | ||
Mount Type Panel | ||
Contact Configuration 1 NC | ||
Terminal Type Solder | ||
LED Colour Blue, Green, Red, White, Yellow | ||
IP Rating IP68 | ||
Contact DC Voltage 50V dc | ||
Contact AC Voltage 125V ac | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SP | ||
Standards/Approvals RoHS | ||
Length 50mm | ||
Legend Blank | ||
The TE Connectivity’s PB7 series of sub-miniature pushbutton is a portfolio of high quality,IP68 rated switches that comprises various cap styles and LED illumination options. This pushbutton switch with 500 mm heat shrink lead is offered in a Matte finish Flat cap actuators. These leads provide ease of installation without the need of soldering. This switch is available in red colour (Without LED) and it can be used in a wide variety of applications which demand for a switch with M1 Solder lug terminations.
It is rated IP68 (1 meter, 60 minutes)
Normally open and Normally closed versions available
Flat cap in red colour with no LED
