EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3mm Cutout, SPDT, Red/Green LED, 240V, IP65,
- RS 제품 번호:
- 239-4946
- Distrelec 제품 번호:
- 302-46-106
- 제조사 부품 번호:
- 82-6151.1AA4.B002
- 제조업체:
- EAO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩61,739.20
재고있음
- 추가로 2026년 1월 12일 부터 24 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩61,739.20 |
| 10 - 49 | ₩59,032.00 |
| 50 + | ₩53,128.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 239-4946
- Distrelec 제품 번호:
- 302-46-106
- 제조사 부품 번호:
- 82-6151.1AA4.B002
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 22.3mm | |
| Series | 82 | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPDT | |
| Voltage Rating | 240V | |
| LED Colour | Red/Green | |
| IP Rating | IP65, IP67 | |
| Push Button Material | Stainless Steel | |
| Contact Current Rating | 3A | |
| Contact Material | Silver Alloy | |
| Manufacturer Part No. | 82-6151.1AA4.B002 | |
| Contact DC Voltage Rating | 240V | |
| Case Colour | Silver | |
| Legend | Standby Symbol | |
| Contact AC Voltage Rating | 240V | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -30°C | |
| Operating Temperature Range | -30°C to +70°C | |
| Terminal Type | Plug In, Solder | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 22.3mm | ||
Series 82 | ||
Mounting Type Panel Mount | ||
Contact Configuration SPDT | ||
Voltage Rating 240V | ||
LED Colour Red/Green | ||
IP Rating IP65, IP67 | ||
Push Button Material Stainless Steel | ||
Contact Current Rating 3A | ||
Contact Material Silver Alloy | ||
Manufacturer Part No. 82-6151.1AA4.B002 | ||
Contact DC Voltage Rating 240V | ||
Case Colour Silver | ||
Legend Standby Symbol | ||
Contact AC Voltage Rating 240V | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -30°C | ||
Operating Temperature Range -30°C to +70°C | ||
Terminal Type Plug In, Solder | ||
- COO (Country of Origin):
- CH

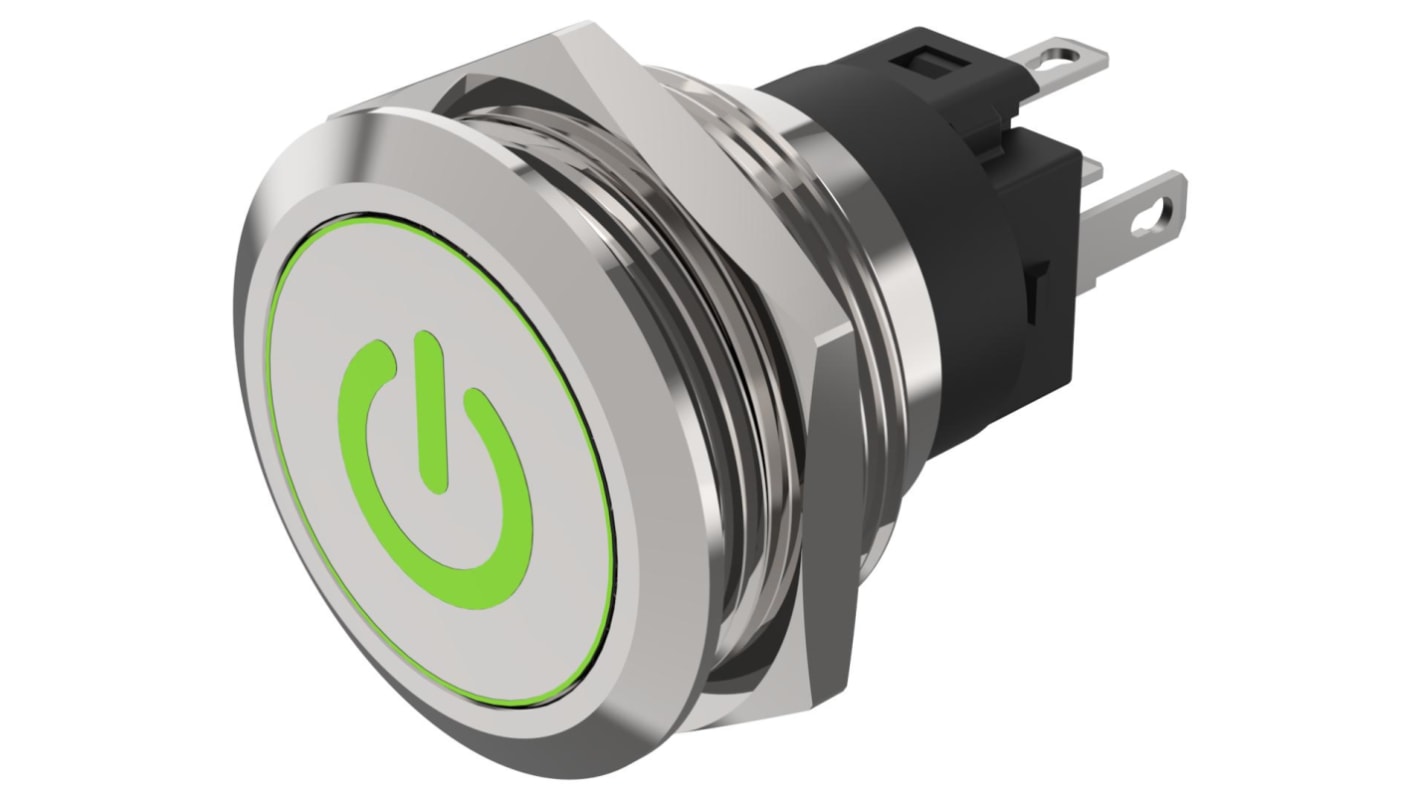

The EAO illuminated pushbutton with 22 mm diameter made with stainless steel 304. This is a 82 series silver colour flush mounted illuminated pushbutton. Illumination colour of this pushbutton is red/green that is Bi-colour-LED having a standby symbol.
Vandal-resistant impact resistant to IK10
Front protection up to IP67
Gold contacts available for low voltages and currents
Optional illumination and laser markings
Excellent tactile feedback
Long service life more than 1 million cycles of operation
Stainless steel anodised aluminium or brass coloured switches
Typical application areas
Exposed public areas for e.g. ticketing and vending machines
Industrial machinery and factory equipment
Lifting and moving like elevators and people movers
Building management access control and security systems
Audio and video equipment
Medical equipment
Food industry
