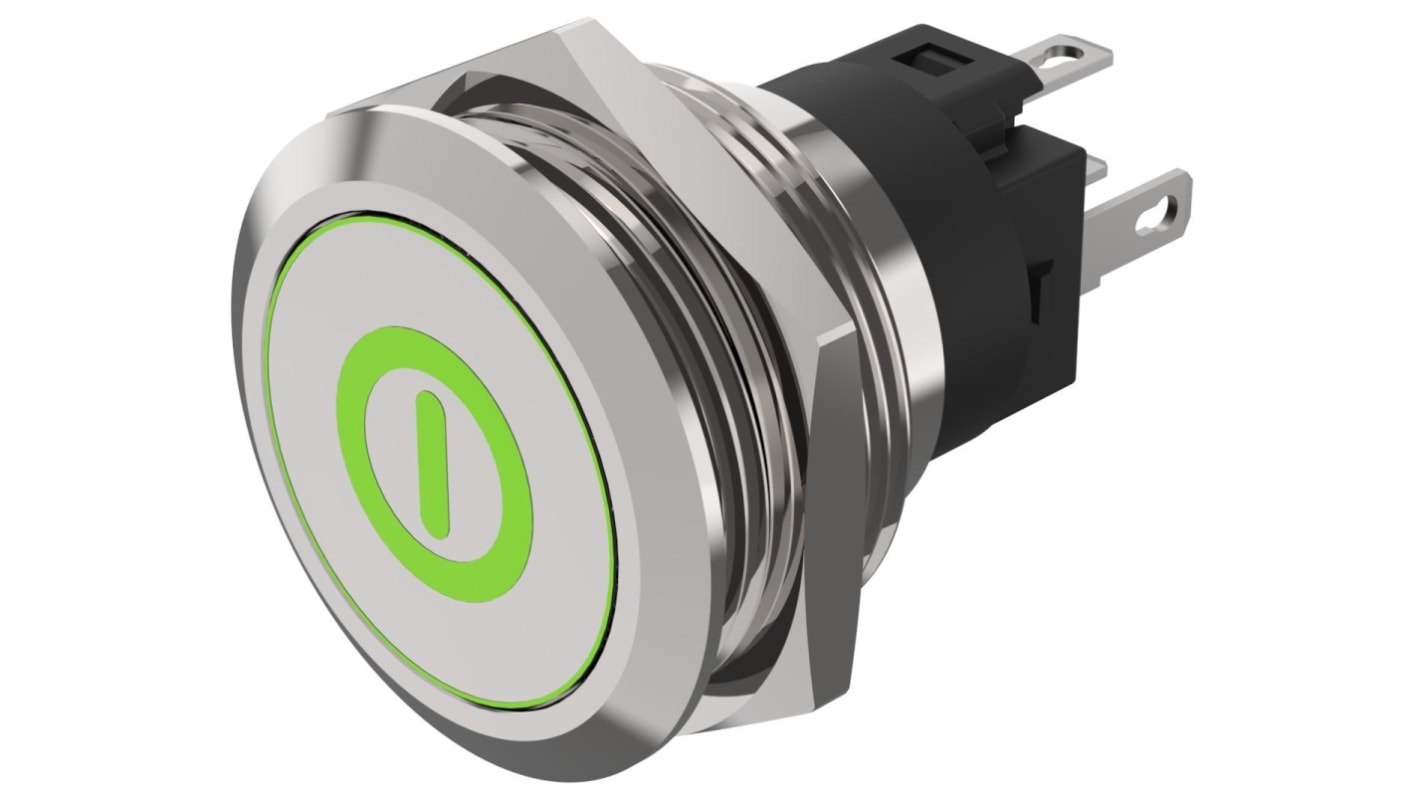

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel, 31 x 31 mm Cutout, SPDT, Green, Red LED, IP65, IP67, 240

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩63,337.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 19일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩63,337.20
10 - 49₩60,573.60
50 +₩54,501.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
239-4945
Distrelec 제품 번호:
302-46-105
제조사 부품 번호:
82-6151.1AA4.B001
제조업체:
EAO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EAO

Product Type

Push Button Switch

Switch Operation

Momentary

Actuator Colour

Silver

Illuminated

Yes

Series

82

Panel Cutout Size

31 x 31 mm

Mount Type

Panel

Contact Configuration

SPDT

LED Colour

Green, Red

IP Rating

IP65, IP67

Contact DC Voltage

240V

Minimum Operating Temperature

-30°C

Actuator Style

Push-in

Contact AC Voltage

240V

Maximum Operating Temperature

70°C

Switch Contact Current

3 A

Standards/Approvals

RoHS, REACH, CB, CE, UL, C UL, CCC

Legend

On-Off

COO (Country of Origin):
CH
The EAO illuminated pushbutton with 22 mm diameter made with stainless steel 304. This is a 82 series silver colour flush mounted illuminated pushbutton. Illumination colour of this pushbutton is red/green that is Bi-colour-LED.

Vandal-resistant impact resistant to IK10

Front protection up to IP67

Gold contacts available for low voltages and currents

Optional illumination and laser markings

Excellent tactile feedback

Long service life more than 1 million cycles of operation

Stainless steel anodised aluminium or brass coloured switches

Typical application areas


Exposed public areas for e.g. ticketing and vending machines

Industrial machinery and factory equipment

Lifting and moving like elevators and people movers

Building management access control and security systems

Audio and video equipment

Medical equipment

Food industry
