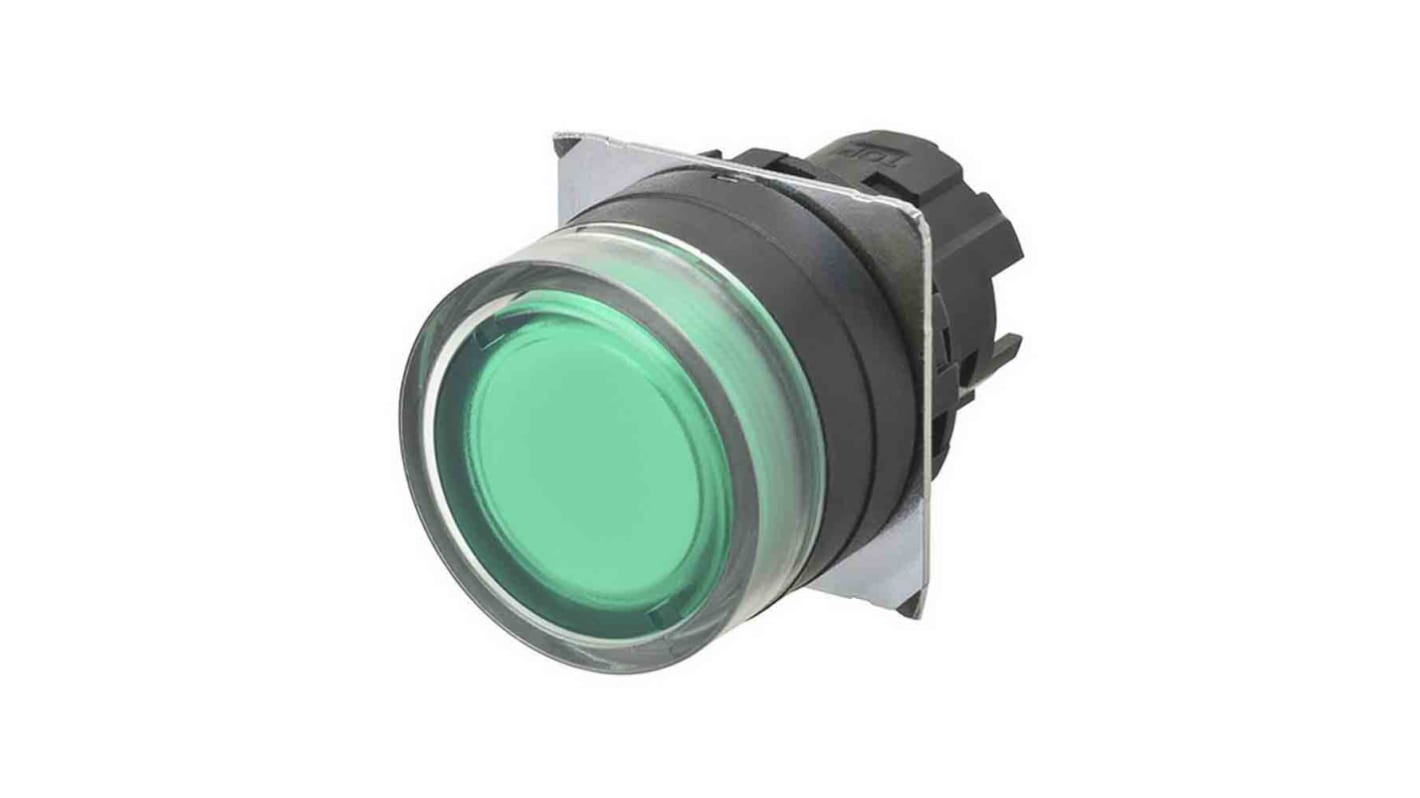

Omron A22NZ Series Illuminated Push Button Switch, Momentary, Panel, 22 mm Cutout, SPST, Green LED, IP66, 30 V
- RS 제품 번호:
- 215-5298
- 제조사 부품 번호:
- A22NZ-BGM-TGA
- 제조업체:
- Omron
Subtotal (1 unit)*
₩14,325.60
재고있음
- 33 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩14,325.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 215-5298
- 제조사 부품 번호:
- A22NZ-BGM-TGA
- 제조업체:
- Omron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Omron | |
| Product Type | Push Button Switch | |
| Actuator Colour | Green | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cutout Size | 22 mm | |
| Series | A22NZ | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| LED Colour | Green | |
| IP Rating | IP66 | |
| Contact AC Voltage | 24V | |
| Actuator Style | Round | |
| Minimum Operating Temperature | 55°C | |
| Contact DC Voltage | 30V | |
| Maximum Operating Temperature | -25°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | UL, CSS, CE | |
| Switch Contact Current | 10 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Omron | ||
Product Type Push Button Switch | ||
Actuator Colour Green | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cutout Size 22 mm | ||
Series A22NZ | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
LED Colour Green | ||
IP Rating IP66 | ||
Contact AC Voltage 24V | ||
Actuator Style Round | ||
Minimum Operating Temperature 55°C | ||
Contact DC Voltage 30V | ||
Maximum Operating Temperature -25°C | ||
Switch Configuration On-Off | ||
Standards/Approvals UL, CSS, CE | ||
Switch Contact Current 10 mA | ||
Omron Push Button Switch, Momentary Switch Operation, IP66 Rating - A22NZ-BGM-TGA
This Omron push-button comes with a 22mm diameter along with a transparent green bezel. It features a momentary reset method and a lighted design with a green LED lamp.
Features & Benefits
• The full guard design provides protection against accidental activation, ensuring safety in industrial environments
• The color-coded bezel allows easy identification and enhances visual clarity
• The built-in green LED lamp provides clear status indication, even in low-light conditions
Applications
• Ideal for use in control panels, machinery, and equipment where reliable push-button switches are needed
• Suitable for automation systems, conveyors, and production lines
• Used in various industrial machinery applications, such as start/stop buttons and emergency shutdowns
Is This push-button suitable for outdoor use?
No, it’s designed for indoor use due to its plastic bezel material.
Can I replace the LED lamp with a different colour?
Yes, Omron offers interchangeable LED lamps for customisation.
What’s the voltage rating for the LED lamp?
The LED operates at 24V DC.
