Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, 22.5 mm Cutout, SPDT, Red LED, IP66,

RS 제품 번호:: 212-4831
제조사 부품 번호:: XB4BW3435
제조업체:: Schneider Electric

Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, 22.5 mm Cutout, SPDT, Red LED, IP66,

Subtotal (1 unit)*

₩225,186.00

제조사가 재고 비축중

2026년 7월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩225,186.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:: 212-4831
제조사 부품 번호:: XB4BW3435
제조업체:: Schneider Electric

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Switch Operation	Spring Return
	Product Type	Push Button Switch
	Actuator Colour	Red
	Illuminated	Yes
	Series	Harmony
	Panel Cutout Size	22.5 mm
	Contact Configuration	SPDT
	LED Colour	Red
	Terminal Type	Screw Clamp
	IP Rating	IP66, IP67, IP69, IP69K
	Contact AC Voltage	120V ac
	Contact DC Voltage	600V dc
	Actuator Style	Round
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	55°C
	Switch Contact Current	3A
	Length	101mm
	Width	30mm
	Standards/Approvals	UL 508, JIS C8201-5-1, JIS C8201-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14
	Height	47mm
	Better World Product	Yes
	Legend	Blank

	모두 선택
	브랜드 Schneider Electric
	Switch Operation Spring Return
	Product Type Push Button Switch
	Actuator Colour Red
	Illuminated Yes
	Series Harmony
	Panel Cutout Size 22.5 mm
	Contact Configuration SPDT
	LED Colour Red
	Terminal Type Screw Clamp
	IP Rating IP66, IP67, IP69, IP69K
	Contact AC Voltage 120V ac
	Contact DC Voltage 600V dc
	Actuator Style Round
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 55°C
	Switch Contact Current 3A
	Length 101mm
	Width 30mm
	Standards/Approvals UL 508, JIS C8201-5-1, JIS C8201-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14
	Height 47mm
	Better World Product Yes
	Legend Blank

로그인하여 CAD 모델 다운로드

제외

COO (Country of Origin):: CZ

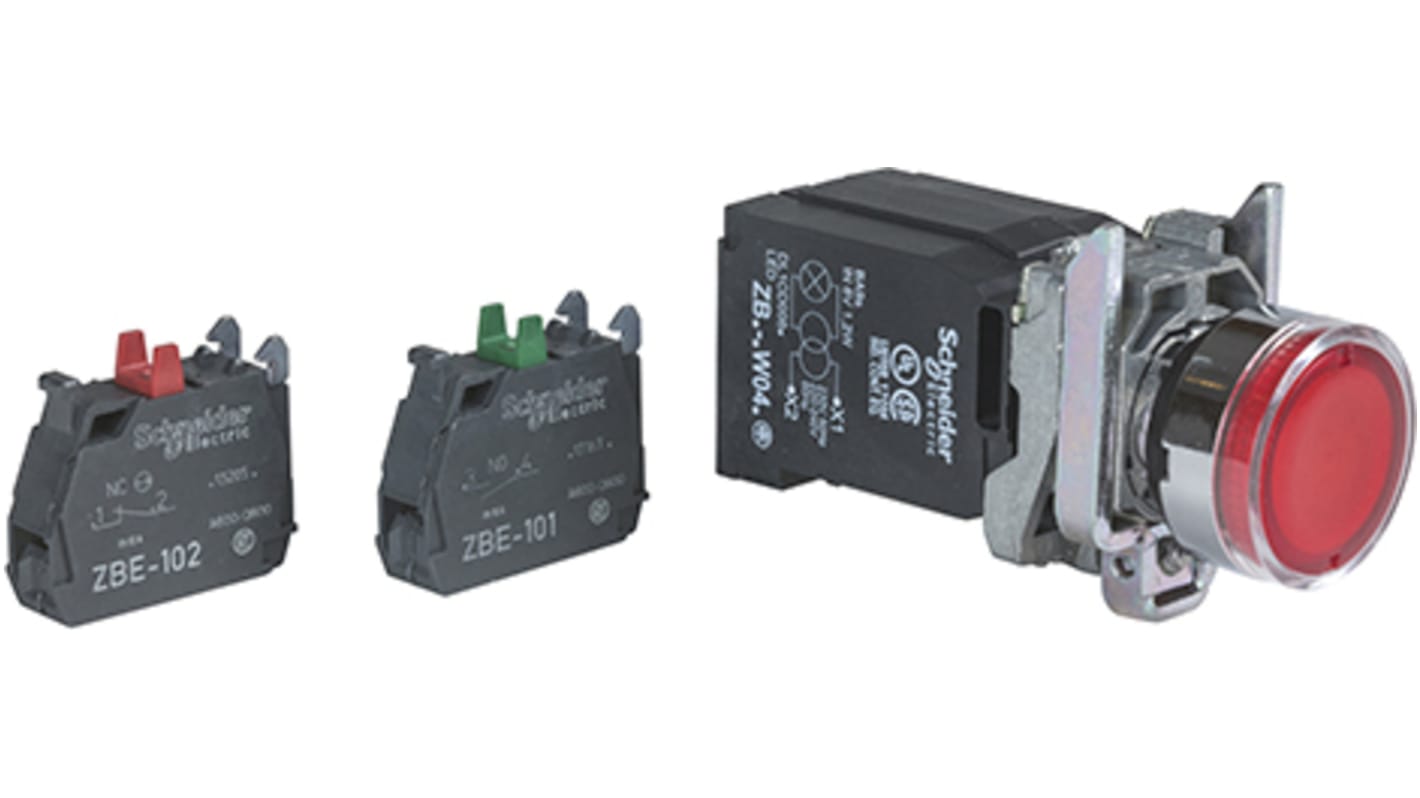

The Schneider Electric XB4BW3435 is a red flush complete Illuminated pushbutton , Ø22 mm , spring return operator , 1NO+1NC Contacts Type

Bezel material Chromium plated metal

Steady Signalling

IP degree of protection IP66

Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, 22.5 mm Cutout, SPDT, Red LED, IP66,
