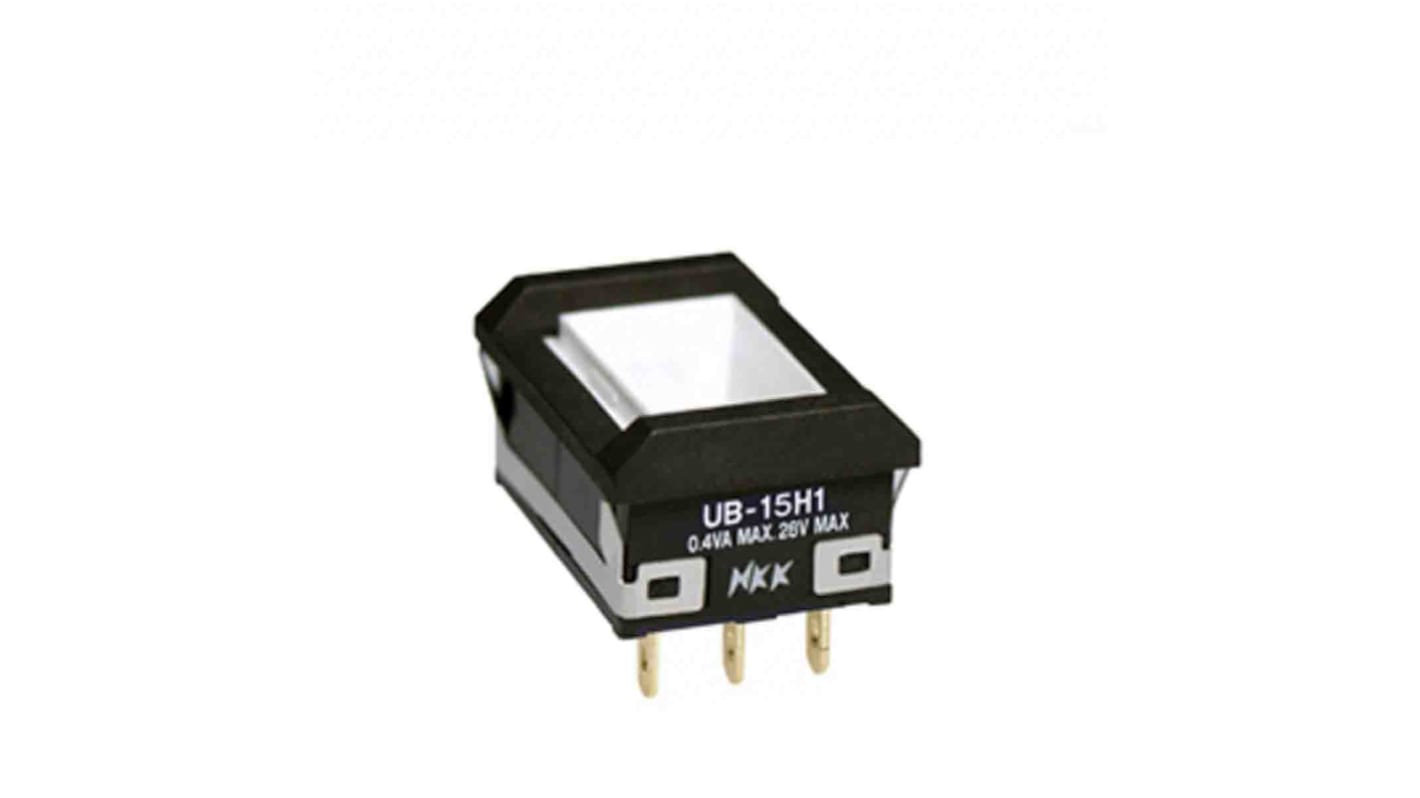

NKK Switches UB Series Illuminated Push Button Switch, Momentary, PCB, 17.8 x 24 mm Cutout, SPDT, Amber LED, IP40, 28 V
- RS 제품 번호:
- 196-0303
- 제조사 부품 번호:
- UB15NBKG015D
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩20,717.60
일시적 품절
- 2026년 5월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩20,717.60 |
| 5 + | ₩18,649.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 196-0303
- 제조사 부품 번호:
- UB15NBKG015D
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Amber | |
| Illuminated | Yes | |
| Panel Cutout Size | 17.8 x 24 mm | |
| Series | UB | |
| Mount Type | PCB | |
| Contact Configuration | SPDT | |
| Terminal Type | Solder Lug | |
| LED Colour | Amber | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 28V | |
| Contact AC Voltage | 28V | |
| Actuator Style | Plunger | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS, UL | |
| Switch Contact Current | 0.4 VA | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Amber | ||
Illuminated Yes | ||
Panel Cutout Size 17.8 x 24 mm | ||
Series UB | ||
Mount Type PCB | ||
Contact Configuration SPDT | ||
Terminal Type Solder Lug | ||
LED Colour Amber | ||
IP Rating IP40 | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 28V | ||
Contact AC Voltage 28V | ||
Actuator Style Plunger | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS, UL | ||
Switch Contact Current 0.4 VA | ||
- COO (Country of Origin):
- PH
The NKK Switches Low Profile Illuminated Pushbutton Switch has a Gold Plating Contact Finish and belongs to UB Series. It has a Rectangular Cap type of actuator.
Epoxy Sealed Terminals
Poles SPDT
