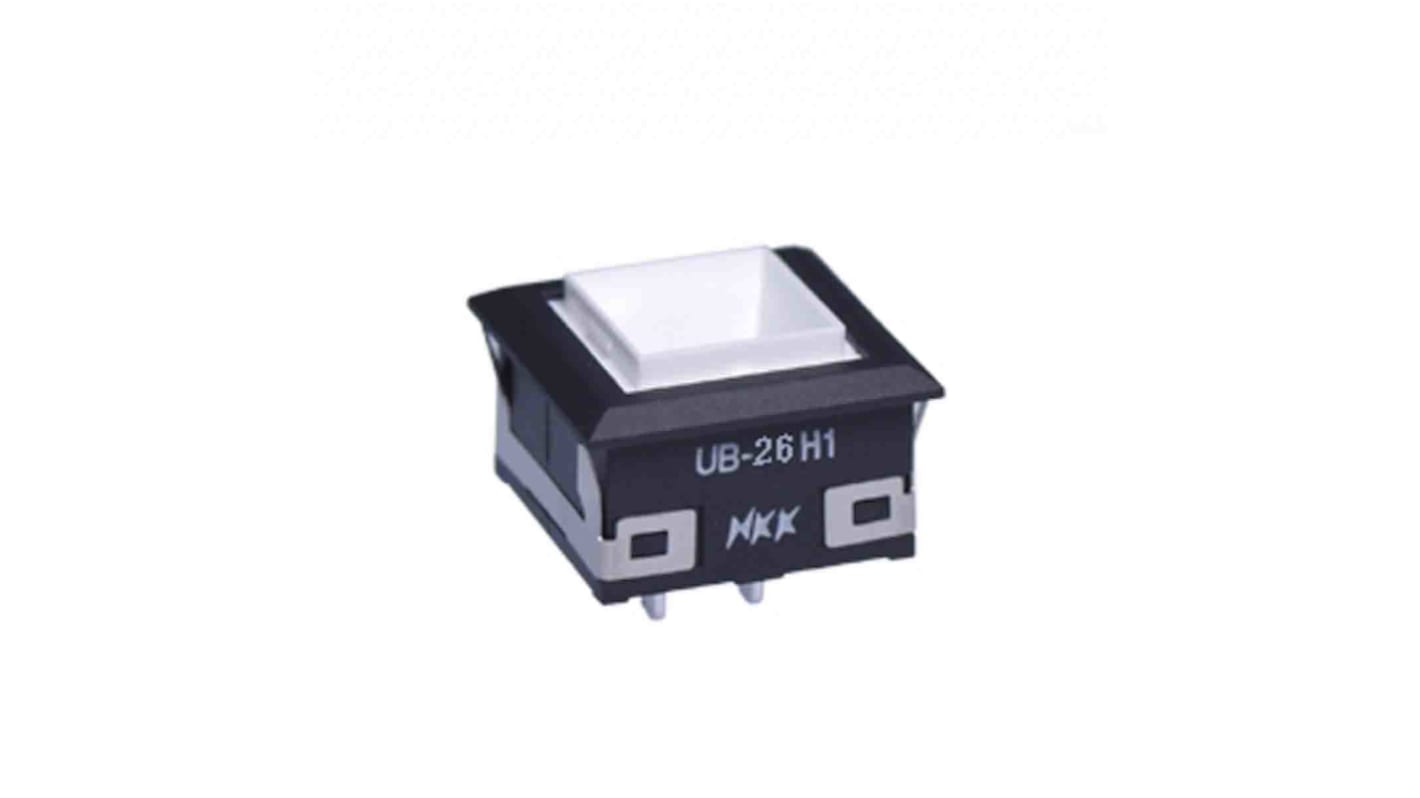

NKK Switches UB Series Illuminated Push Button Switch, On-On, PCB, 17.8 x 17.8 mm Cutout, DPDT, Green LED, IP40, 30 V dc
- RS 제품 번호:
- 196-0292
- 제조사 부품 번호:
- UB26KKW015F
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩18,343.16
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩18,343.16 |
| 5 + | ₩16,506.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 196-0292
- 제조사 부품 번호:
- UB26KKW015F
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Switch Operation | On-On | |
| Actuator Colour | Green | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | UB | |
| Panel Cutout Size | 17.8 x 17.8 mm | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder Lug | |
| LED Colour | Green | |
| IP Rating | IP40 | |
| Contact DC Voltage | 30V dc | |
| Actuator Style | Square | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -25°C | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 50°C | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | CSA, RoHS, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Switch Operation On-On | ||
Actuator Colour Green | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series UB | ||
Panel Cutout Size 17.8 x 17.8 mm | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Terminal Type Solder Lug | ||
LED Colour Green | ||
IP Rating IP40 | ||
Contact DC Voltage 30V dc | ||
Actuator Style Square | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -25°C | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 50°C | ||
Switch Contact Current 5 A | ||
Standards/Approvals CSA, RoHS, UL | ||
- COO (Country of Origin):
- PH
The NKK Switches Low Profile Illuminated Pushbutton Switch has a Silver Contact Finish and belongs to UB Series. It has a Square Cap type of actuator.
Termination Style Solder Lug
Illumination Type Bright LED
Illumination Color Green
