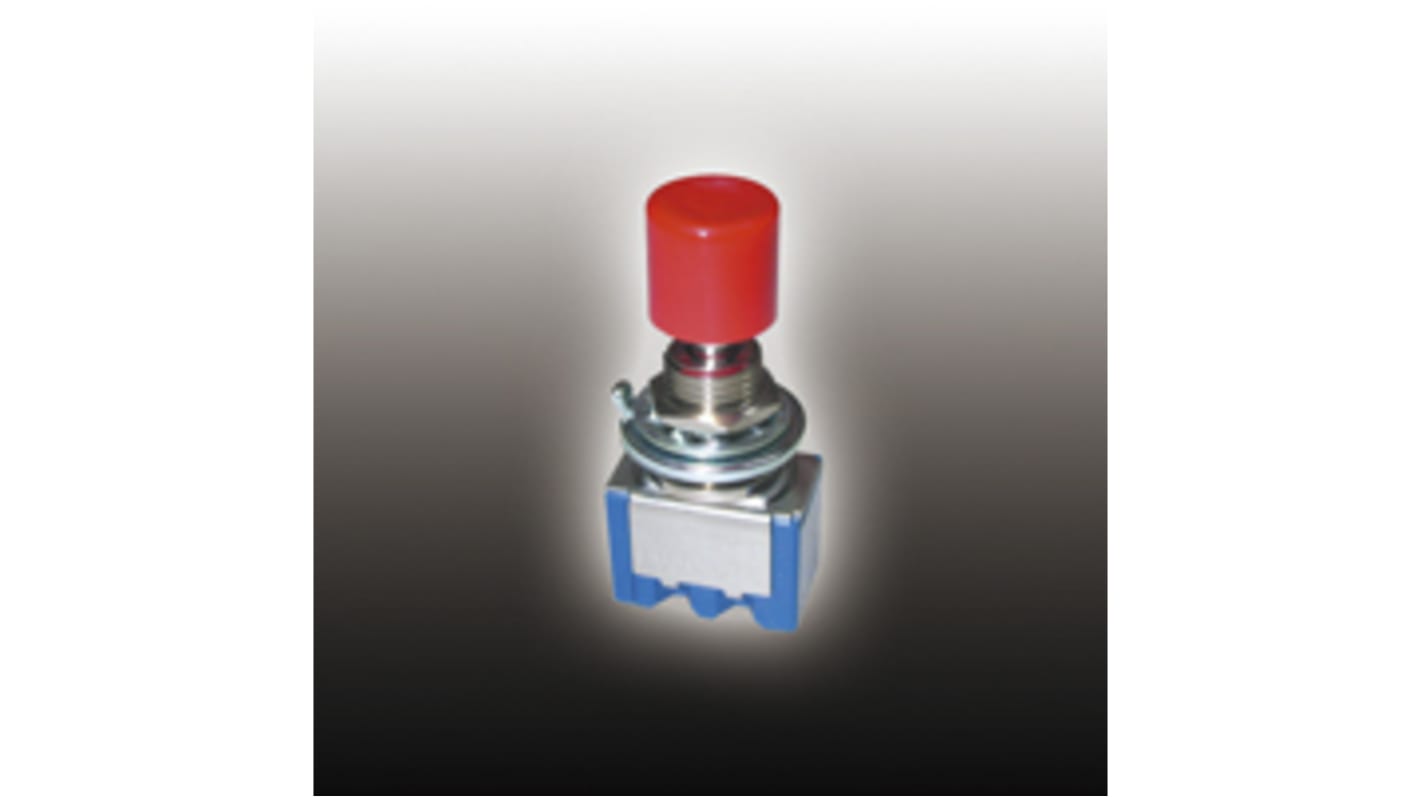

Nidec Components 8 Series Push Button Switch, Latching, Panel, 1.5 to 2.5 mm Cutout, SPDT, 30 V dc 125 V ac
- RS 제품 번호:
- 180-6928
- 제조사 부품 번호:
- 8R1011-N-Z
- 제조업체:
- Nidec Components
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 180-6928
- 제조사 부품 번호:
- 8R1011-N-Z
- 제조업체:
- Nidec Components
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nidec Components | |
| Product Type | Push Button Switch | |
| Switch Operation | Latching | |
| Illuminated | No | |
| Series | 8 | |
| Panel Cutout Size | 1.5 to 2.5 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -30°C | |
| Actuator Style | Cylinder | |
| Contact DC Voltage | 30V dc | |
| Contact AC Voltage | 125V ac | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 3 A | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nidec Components | ||
Product Type Push Button Switch | ||
Switch Operation Latching | ||
Illuminated No | ||
Series 8 | ||
Panel Cutout Size 1.5 to 2.5 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Solder | ||
Minimum Operating Temperature -30°C | ||
Actuator Style Cylinder | ||
Contact DC Voltage 30V dc | ||
Contact AC Voltage 125V ac | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 3 A | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
Contacts
Silver or gold-plated contacts.
Epoxy resin case
Self-extinguishing epoxy.
Actuator style
Over 30 actuator variations.
Insulation between terminal and ground: 4 mm minimum.
Prevention of flux entry
The epoxy resin seal on bottom of the switch helps prevent the entry of solder and flux
Insulation barrier:
Insulation barrier design between poles helps prevent short-circuiting between poles ensuring high reliability.
