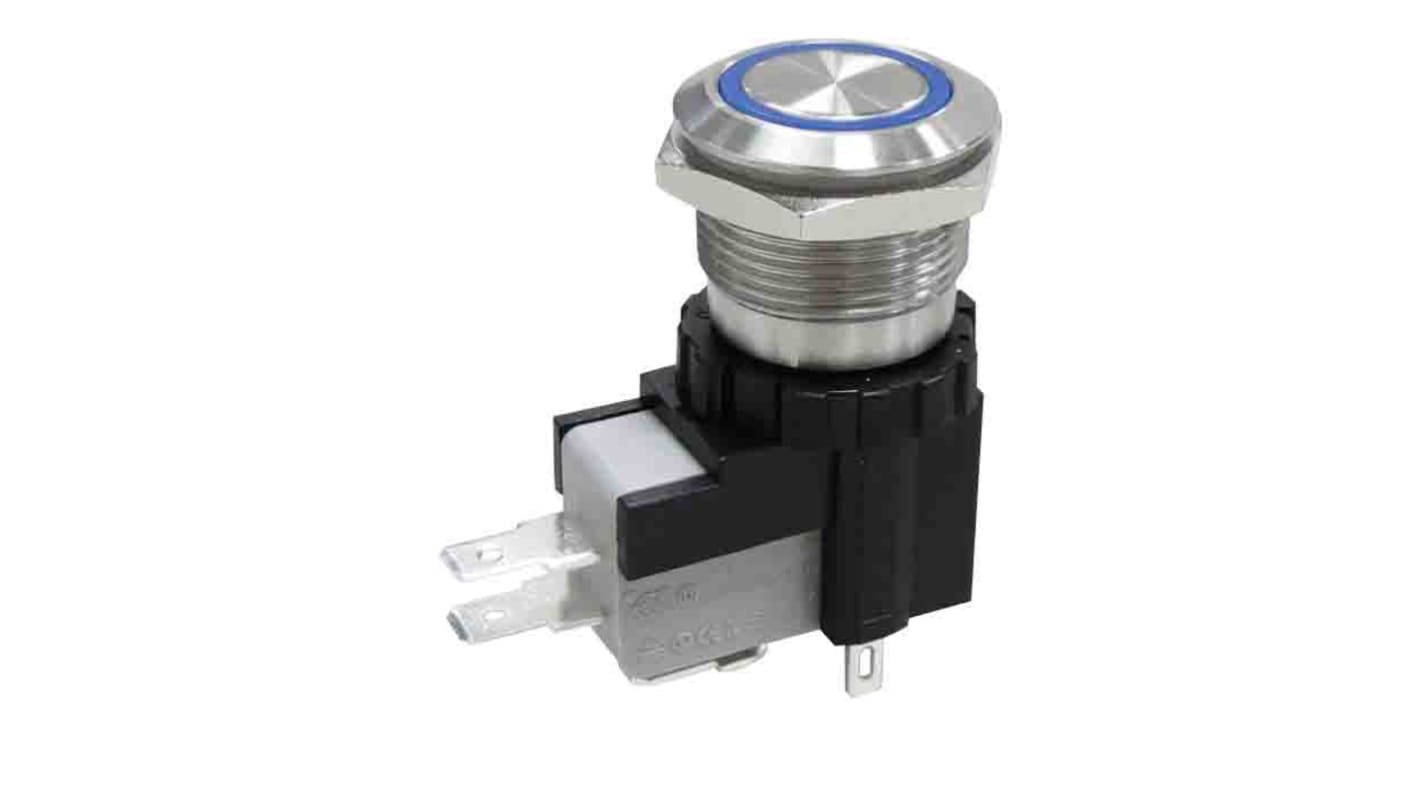

RS PRO MW19 Series Push Button Switch, Momentary, Momentary, Panel, Panel Mount, 19.1 mm Cutout, SPST, IP67, IP67, 36 V
- RS 제품 번호:
- 175-9054
- 제조업체:
- RS PRO
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 175-9054
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Switch Operation | Momentary, Momentary | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 19.1 mm | |
| Series | MW19 | |
| Mount Type | Panel, Panel Mount | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| IP Rating | IP67, IP67 | |
| Minimum Operating Temperature | -35°C | |
| Actuator Style | Flat | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 36V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | cULus Recognized, EC18, EN18, RS, UL 94 V-0, UL 94 V-2 | |
| Switch Contact Current | 26A | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Switch Operation Momentary, Momentary | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 19.1 mm | ||
Series MW19 | ||
Mount Type Panel, Panel Mount | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
IP Rating IP67, IP67 | ||
Minimum Operating Temperature -35°C | ||
Actuator Style Flat | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 36V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals cULus Recognized, EC18, EN18, RS, UL 94 V-0, UL 94 V-2 | ||
Switch Contact Current 26A | ||
- COO (Country of Origin):
- CN
High Current Anti-Vandal Pushbutton Switches (MW Series)
IP67 rated. Available in 19mm, 22mm, 25mm and high current.
The micro-switch and bushing can be replaced, which solves the user's troubles in maintenance and increases the convenience of replacement.
The high-current switch also has a variety of indicator options, such as non-indicator, ring indicator, power Symbol indicator and customer design options.
Applications
Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
