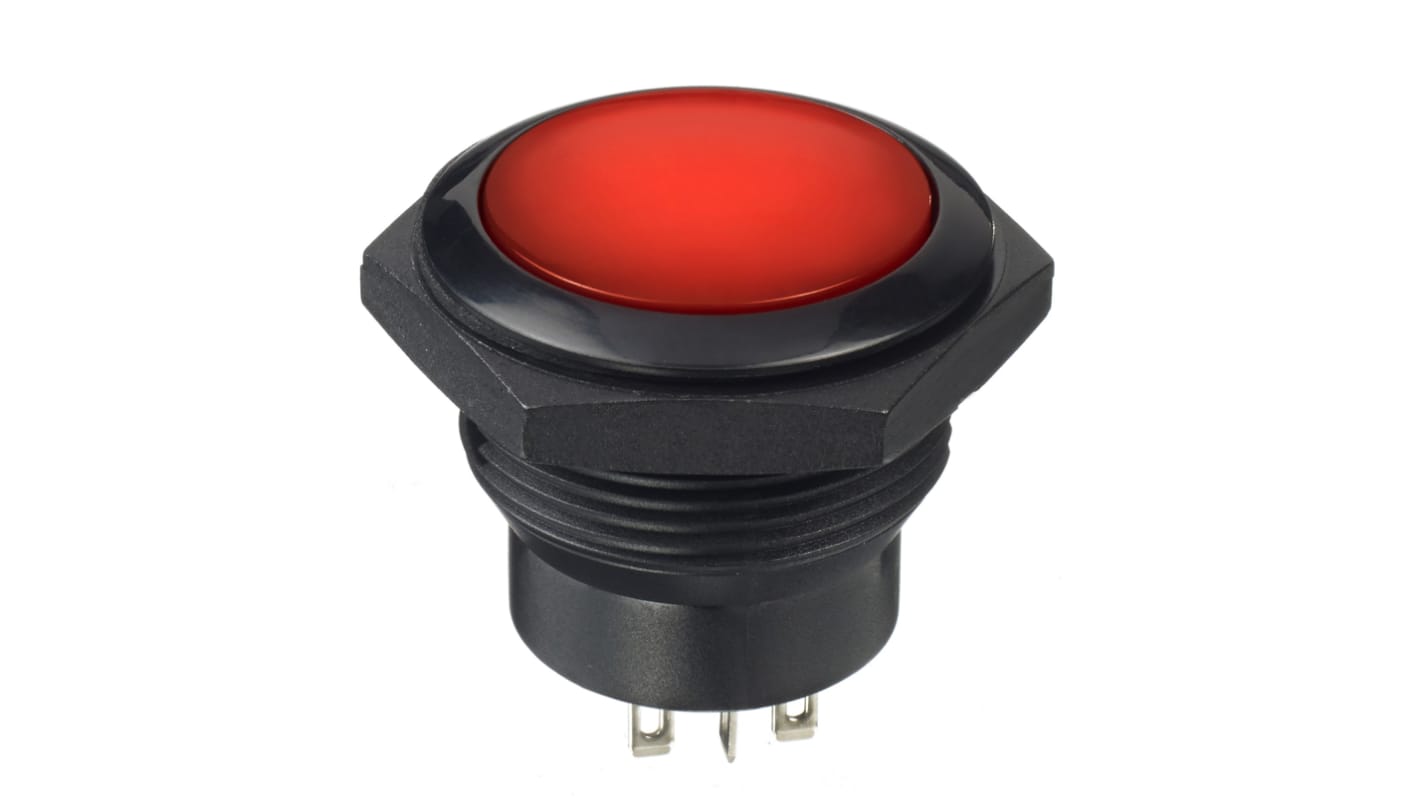

APEM Illuminated Push Button Switch, Momentary, Panel Mount, 30mm Cutout, DPDT, Red LED, 12V dc

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩62,733.72

Add to Basket
수량 선택 또는 입력
재고있음
  • 21 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩62,733.72
10 - 24₩60,222.04
25 - 49₩57,710.36
50 +₩56,456.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
174-9005
제조사 부품 번호:
FPDR3D1462C1XXX
제조업체:
APEM
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

APEM

Switch Operation

Momentary

Illuminated

Yes

Panel Cut Out Diameter

30mm

Mounting Type

Panel Mount

Push Button Colour

Red

Contact Configuration

DPDT

Voltage Rating

12V dc

Push Button Style

Round

LED Colour

Red

Contact Current Rating

200 mA @ 12 V dc

Contact Material

Silver

Manufacturer Part No.

FPDR3D1462C1XXX

Case Colour

Black

Contact DC Voltage Rating

12V

Terminal Type

Solder Lug

COO (Country of Origin):
FR
FP 30 mm series illuminated pushbutton switches feature a dia. 30 mm bushing and are available with fully-illuminated plunger or with laser-etched illuminated symbols. Snap-in and threaded bushing models available. These really visible products are ideal for applications including tractors, buses, trucks and automotive.

FP series Fully illuminated pushbutton switches - bushing Ø 30 mm - momentary or latching

Full actuator or symbol illumination
Snap-in and threaded bushing models
Large but lightweight
Pad printed or laser etched symbols

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
