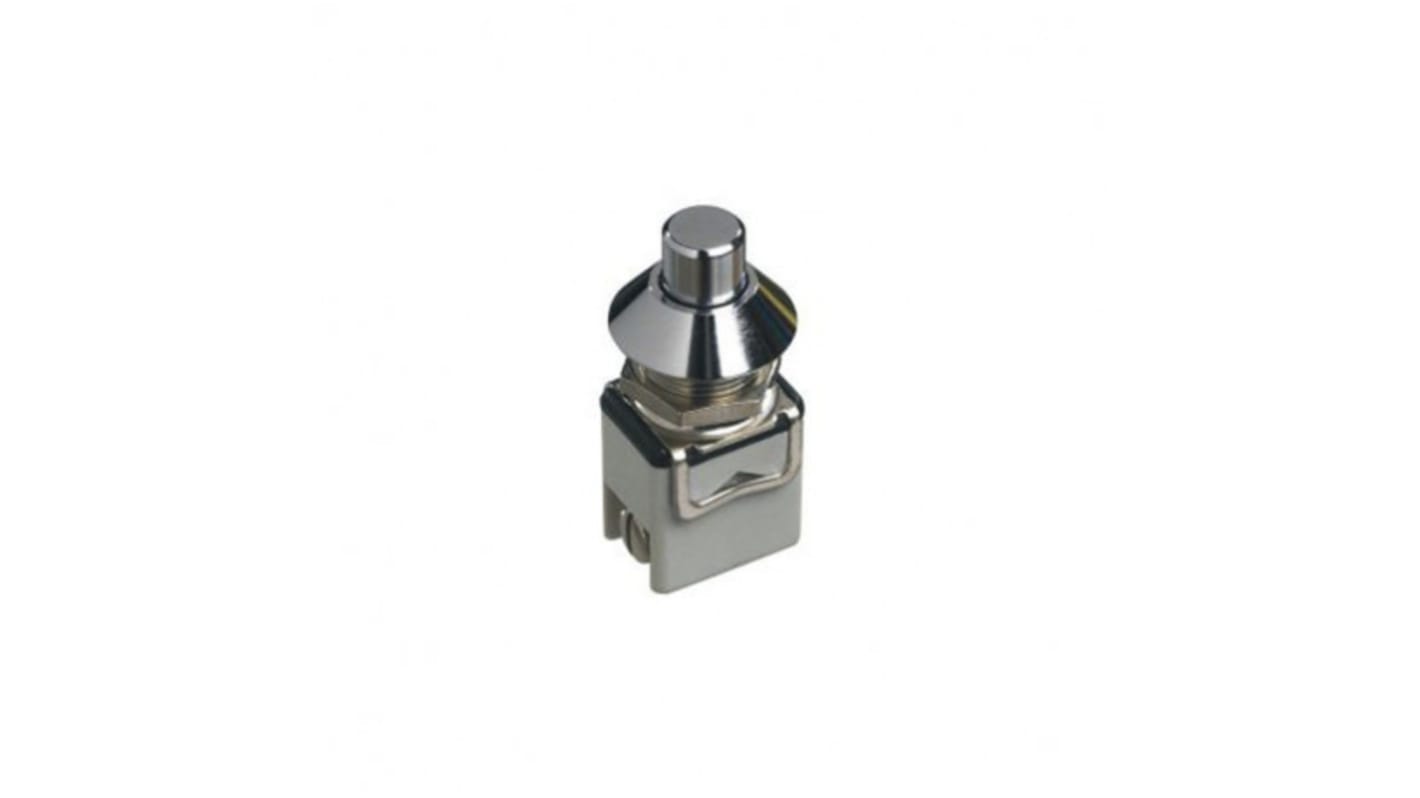

APEM 1200M Series Push Button Switch, Momentary, Panel, 6.4 x 7.2 mm Cutout, SPST, 24 V dc 250 V ac
- RS 제품 번호:
- 174-8997
- 제조사 부품 번호:
- 1223MA
- 제조업체:
- APEM
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩33,482.80
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩33,482.80 |
| 10 - 24 | ₩32,129.20 |
| 25 - 49 | ₩30,794.40 |
| 50 + | ₩30,192.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 174-8997
- 제조사 부품 번호:
- 1223MA
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Actuator Colour | Black | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | 1200M | |
| Panel Cutout Size | 6.4 x 7.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| Contact DC Voltage | 24V dc | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Flat | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 4 A, 8 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Actuator Colour Black | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series 1200M | ||
Panel Cutout Size 6.4 x 7.2 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
Contact DC Voltage 24V dc | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Flat | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
Switch Contact Current 4 A, 8 A | ||
- COO (Country of Origin):
- FR
The 1200 series are robust momentary pushbutton switches with metal plugger.
Momentary pushbutton switches round plunger
Butt action contacts
Double break
