EOZ DJET Series Push Button Switch, Momentary, Panel, 10 mm Cutout, SPST, IP67

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩238,515.60

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 추가로 2026년 1월 19일 부터 25 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 14₩238,515.60
15 - 49₩231,352.80
50 - 99₩224,190.00
100 - 249₩219,433.60
250 +₩214,658.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
174-4054
제조사 부품 번호:
17.17252.22
제조업체:
EOZ
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EOZ

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Momentary

Illuminated

No

Series

DJET

Panel Cutout Size

10 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Solder

IP Rating

IP67

Actuator Style

Round

Minimum Operating Temperature

-40°C

Contact AC Voltage

110V

Maximum Operating Temperature

85°C

Switch Configuration

CO

Switch Contact Current

2.5 A

Standards/Approvals

RoHS

COO (Country of Origin):
CH

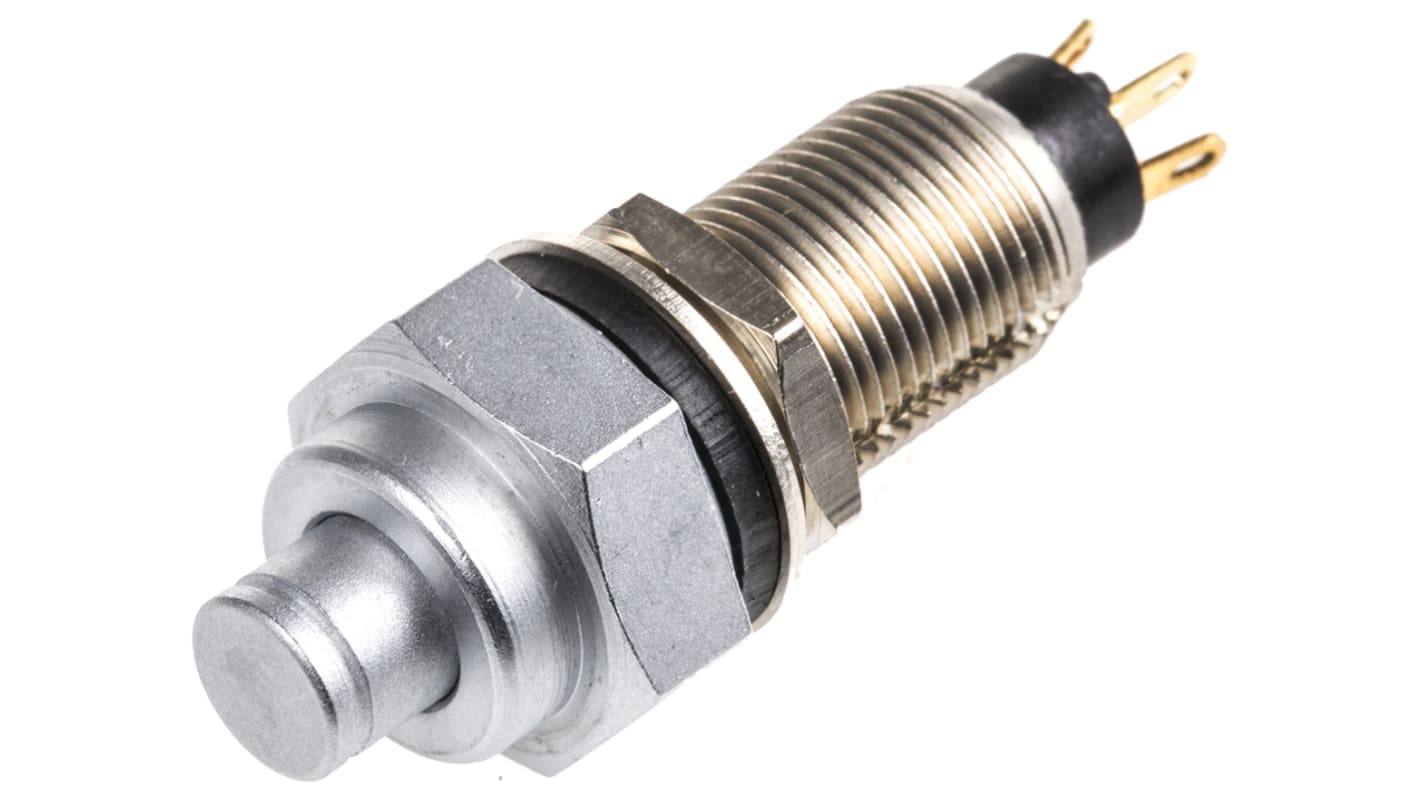

This 17.17252.22 momentary push button switch has a mat chrome finish.

Features and Benefits


• Gold contact material offers the best corrosion resistance.

• IP67 front sealing – (totally protected against dust and protected against the effects of temporary immersion in liquids between 15cm and 1m. Duration of test 30 minutes).

• Single pole switch which controls just one circuit.

• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.

• Fit in to a mounting hole of 10 mm diameter.

DJET miniature pushbuttons


These DJET series toggle and pushbutton switches are ideal for use across a number of industries and environments such as:-

• Outdoor applications

• Telecommunications

• Military Equipment

• Aviation Equipment

• Medical Equipment

• Power Supplies

How are they fitted?


The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.
