ITW Switches 57M Series Illuminated Push Button Switch, Momentary, Panel Mount, 16.1mm Cutout, SPST, Blue LED, 48V dc,
- RS 제품 번호:
- 173-8554
- 제조사 부품 번호:
- 57M 511B
- 제조업체:
- ITW Switches

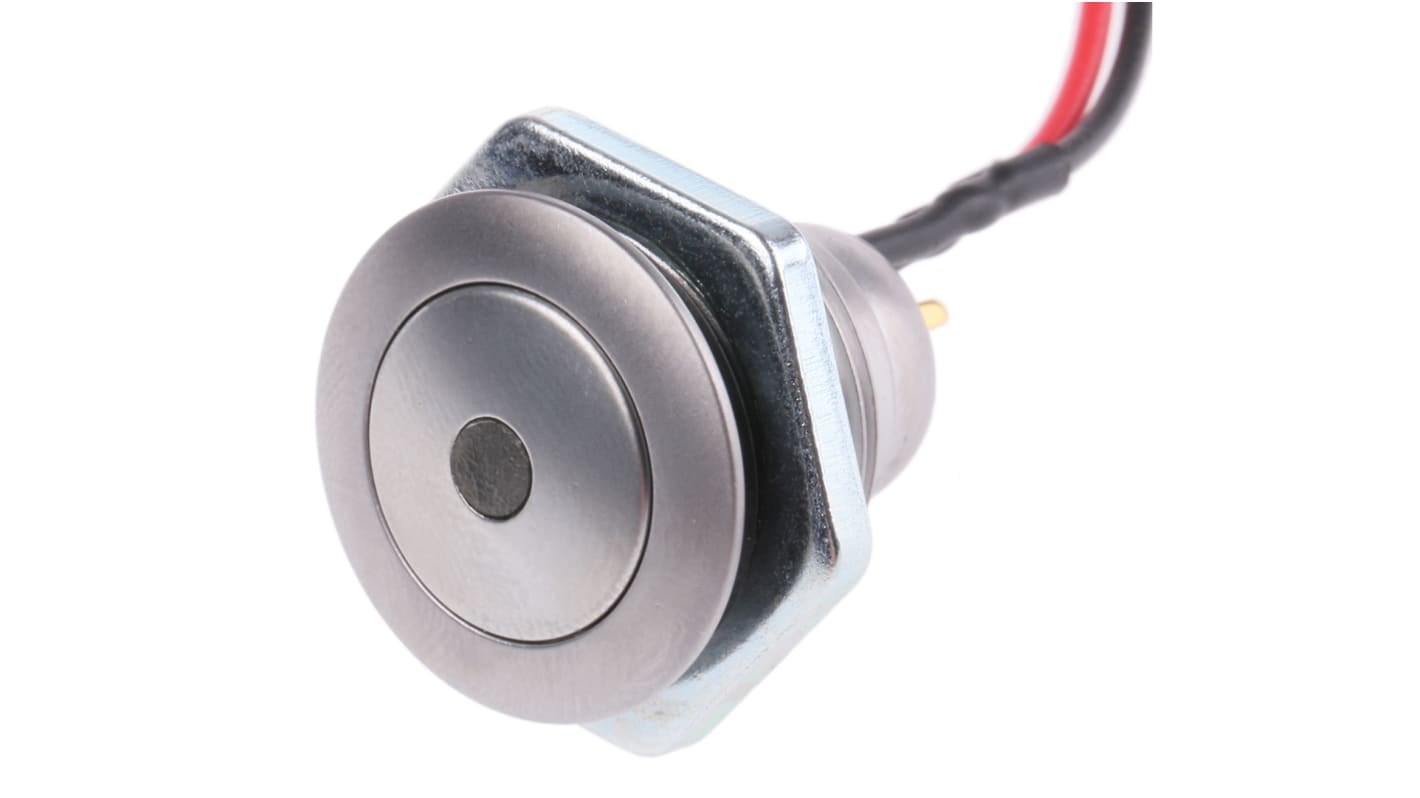

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Box of 50 units)*
₩1,393,926.00
재고있음
- 추가로 2025년 12월 08일 부터 750 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 50 - 50 | ₩27,878.52 | ₩1,393,907.20 |
| 100 - 150 | ₩27,265.64 | ₩1,363,244.40 |
| 200 + | ₩26,679.08 | ₩1,333,972.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 173-8554
- 제조사 부품 번호:
- 57M 511B
- 제조업체:
- ITW Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ITW Switches | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | 57M | |
| Panel Cut Out Diameter | 16.1mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Chrome | |
| Contact Configuration | SPST | |
| Voltage Rating | 48V dc | |
| Push Button Style | Round | |
| LED Colour | Blue | |
| IP Rating | IP67 | |
| Contact Current Rating | 250 mA @ 12 V dc | |
| Contact Material | Gold Plated | |
| Case Colour | Stainless Steel | |
| Manufacturer Part No. | 57M 511B | |
| Contact DC Voltage Rating | 48V | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Terminal Type | PC Pin | |
| 모두 선택 | ||
|---|---|---|
브랜드 ITW Switches | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series 57M | ||
Panel Cut Out Diameter 16.1mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Chrome | ||
Contact Configuration SPST | ||
Voltage Rating 48V dc | ||
Push Button Style Round | ||
LED Colour Blue | ||
IP Rating IP67 | ||
Contact Current Rating 250 mA @ 12 V dc | ||
Contact Material Gold Plated | ||
Case Colour Stainless Steel | ||
Manufacturer Part No. 57M 511B | ||
Contact DC Voltage Rating 48V | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Terminal Type PC Pin | ||
- COO (Country of Origin):
- TW
57M Series Panel-sealed Metal
Miniature metal bodied pushbutton switches panel-sealed to IP67
Chrome plated zinc alloy housing and actuator
Gold-plated contacts and terminations
SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc
18.5mm bezel diameter, 16mm mounting hole
Suitable for panel thickness of 0.5 to 3.0mm
Gold-plated contacts and terminations
SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc
18.5mm bezel diameter, 16mm mounting hole
Suitable for panel thickness of 0.5 to 3.0mm
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
ITW Sealed
