ITW Switches 76-94 Series Push Button Switch, Momentary, Panel, 22 mm Cutout, SPDT, Clear LED, IP67

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 30 units)*

₩1,594,371.60

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 2월 10일 부터 60 개 단위 배송
  • 추가로 2026년 2월 17일 부터 60 개 단위 배송
  • 추가로 2026년 5월 12일 부터 270 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
30 - 30₩53,145.72₩1,594,388.52
60 - 90₩51,976.36₩1,559,307.72
120 +₩50,861.52₩1,525,828.68

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
173-8536
제조사 부품 번호:
76-9410/439088G
제조업체:
ITW Switches
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ITW Switches

Switch Operation

Momentary

Product Type

Push Button Switch

Actuator Colour

Green

Illuminated

No

Panel Cutout Size

22 mm

Series

76-94

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

LED Colour

Clear

IP Rating

IP67

Minimum Operating Temperature

-40°C

Actuator Style

Round

Contact AC Voltage

250V

Switch Configuration

On-Off

Maximum Operating Temperature

125°C

Standards/Approvals

CSA, UL

Switch Contact Current

10 A

COO (Country of Origin):
BZ

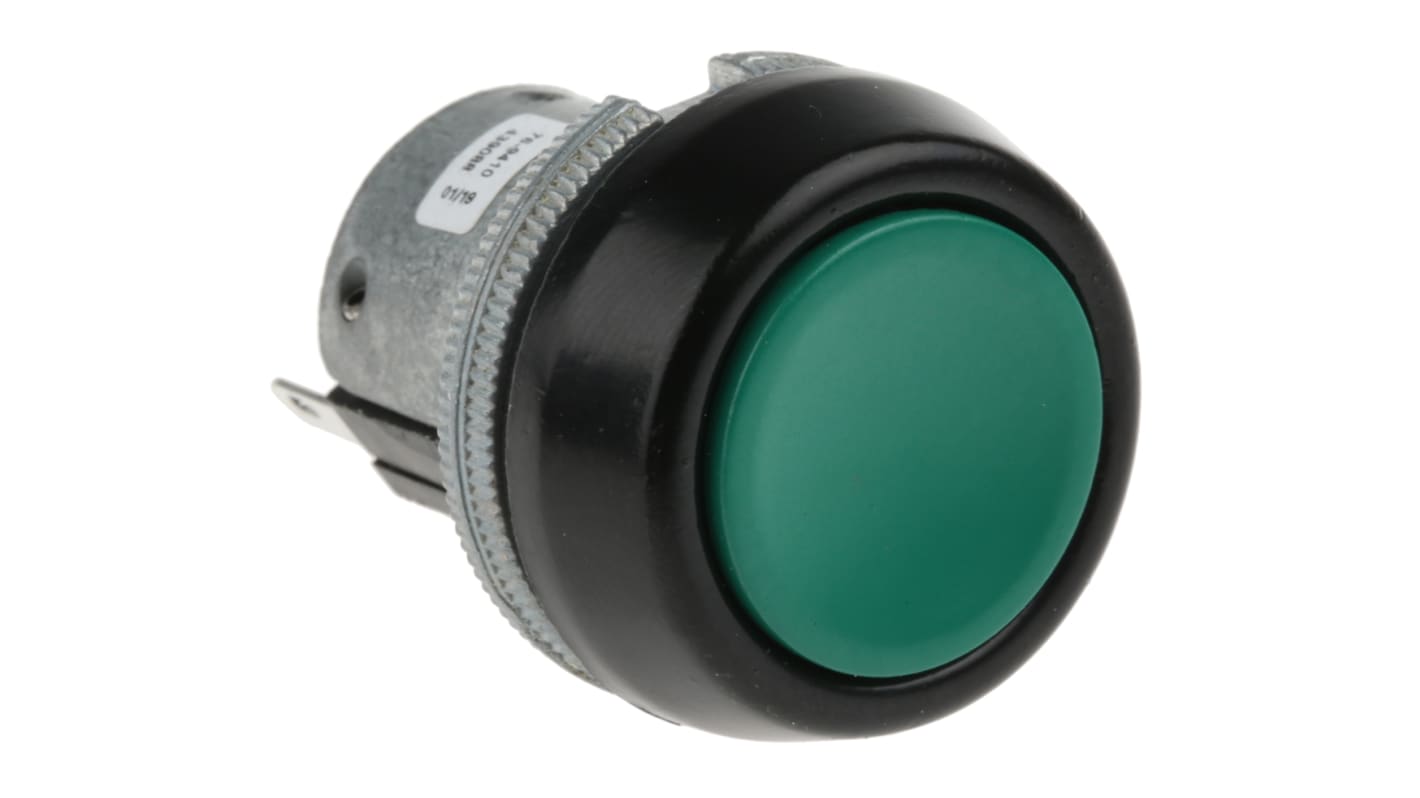

This 76-9410/439088G is a momentary, panel mount push button switch.

Features and Benefits


• Flush button

• Push-button & rotary

• Solder/faston, 1 pole

• Green indicator colour

• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.

High Impact IP67 Pushbutton Switches


The 76-94 Series from ITW, have been designed to cover a wide range of harsh environmental applications. Such as:-

• Military Environments

• Robust Industrial

• Vandal resistant requirements

• Mining Industries

• Petrochemical

• Process control

• Material Handling

Features and Benefits


• The range is available in 3 styles, push-button, rotary and panel lamp.

• Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.

• The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.

• The indicator version is available with a red, green or amber lens.

• Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).

(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).

• The bezels and the actuators have been designed from non- sparking zinc alloy.

• Explosive-proof material used.

Note

These switches are not positive break types and should not be used for emergency stop applications.Accessories listed are not ITW products. Suitable wedge base lamps include 106-357 , 655-9637 , 655-9665 .
