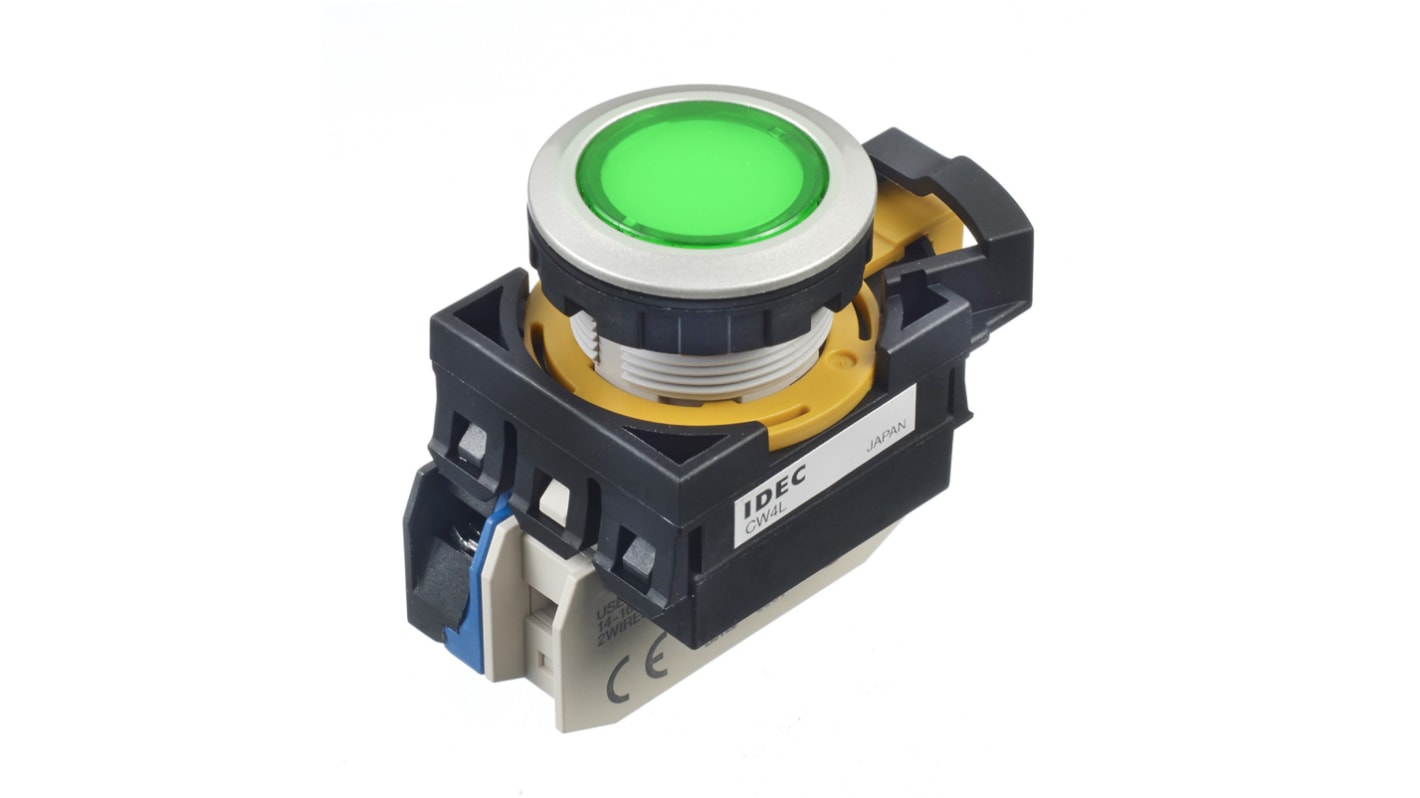

Idec CW Series Illuminated Push Button Switch, Maintained, Panel, 22 mm Cutout, SPST, Green LED, IP65
- RS 제품 번호:
- 168-2771
- 제조사 부품 번호:
- CW4L-A1E10Q4G
- 제조업체:
- Idec
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 168-2771
- 제조사 부품 번호:
- CW4L-A1E10Q4G
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Switch Operation | Maintained | |
| Actuator Colour | Green | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | CW | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Green | |
| Terminal Type | Screw | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 10A | |
| Standards/Approvals | CSA C22.2 No.14, EU Low Voltage Directive, GB14048.5, UL/c-UL File No. E68961, UL508, EN60947-5-1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Switch Operation Maintained | ||
Actuator Colour Green | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series CW | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Green | ||
Terminal Type Screw | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 10A | ||
Standards/Approvals CSA C22.2 No.14, EU Low Voltage Directive, GB14048.5, UL/c-UL File No. E68961, UL508, EN60947-5-1 | ||
- COO (Country of Origin):
- JP
The CW series gives a sleek, stylish image to your machines or control panels. The surface is safer with less chance of unexpected operation or accidents by hitting the projections, and also is cleaner with less dust build-up.
Flush silhouette switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
