모두 선택	제품 정보	값
	브랜드	Idec
	Illuminated	Yes
	Series	YW
	Panel Cut Out Diameter	22mm
	Mounting Type	Panel Mount
	Push Button Colour	White
	Contact Configuration	SPST
	Push Button Style	Round
	IP Rating	IP65
	Push Button Diameter	23.6mm
	Push Button Material	Plastic
	Manufacturer Part No.	YW1L-MF2E10QM3PW
	Body Material	Plastic
	Terminal Type	Screw
	Maximum AC Voltage	230 / 240V
	Maximum DC Voltage	230 / 240V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+55°C

	모두 선택
	브랜드 Idec
	Illuminated Yes
	Series YW
	Panel Cut Out Diameter 22mm
	Mounting Type Panel Mount
	Push Button Colour White
	Contact Configuration SPST
	Push Button Style Round
	IP Rating IP65
	Push Button Diameter 23.6mm
	Push Button Material Plastic
	Manufacturer Part No. YW1L-MF2E10QM3PW
	Body Material Plastic
	Terminal Type Screw
	Maximum AC Voltage 230 / 240V
	Maximum DC Voltage 230 / 240V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +55°C

Datasheet

COO (Country of Origin):: CN

From miniature pilot lights and industrial switches that mount into 8mm panel cut outs through full size industrial switches that mount into 30mm cutouts, we have an industrial switch or indicator for almost any application. Terminations include solder / quick connect terminals, screw terminals, or PC board pins for direct board mounting. Miniature models use snap action gold plated contacts for superior low level switching, whereas larger models use slow-make, double break contacts for switching heavier loads, up to 10A.

Compact and light-weight
Finger-safe screw terminals

22MM YW Series Illuminated Pushbuttons (Plastic Bezel) Momentary Extended with Full Shroud LED

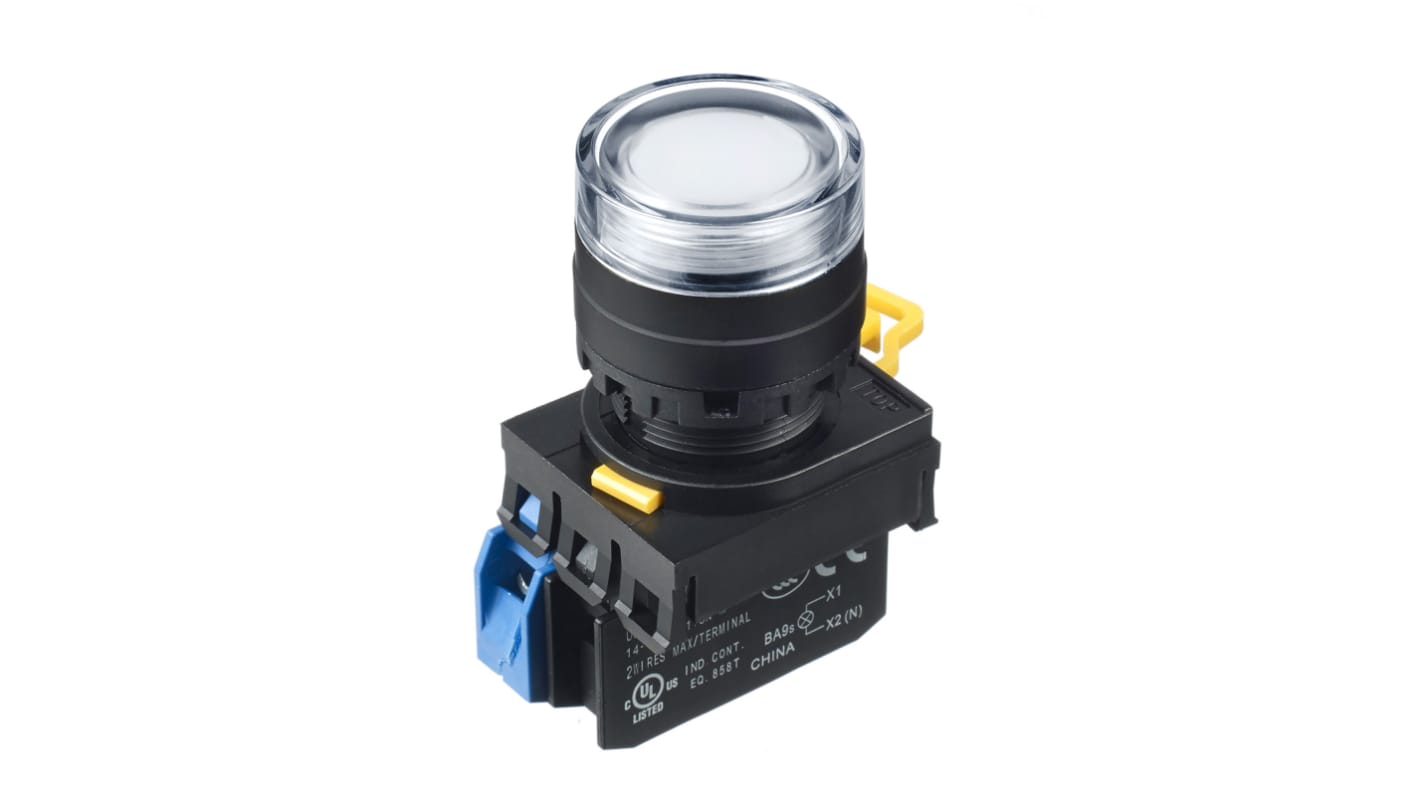

Idec YW Series Illuminated Push Button Complete Unit, Panel Mount, 22mm Cutout, SPST, IP65
