제조사부품번호

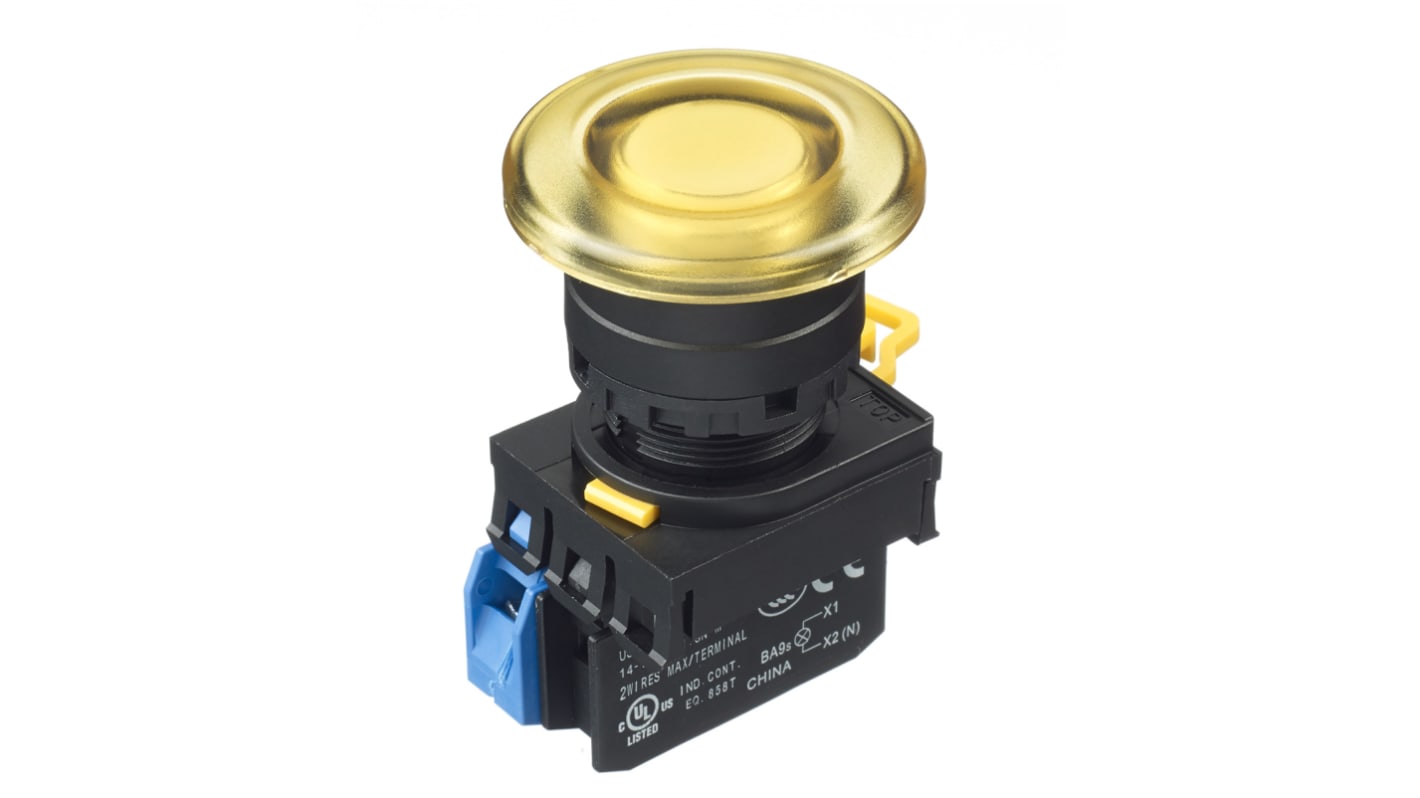

Idec YW Series Illuminated Push Button Complete Unit, Panel, 22 mm Cutout Yellow, SPST, IP65

RS 제품 번호:: 168-2609
제조사 부품 번호:: YW1L-M4E10Q4Y
제조업체:: Idec

Idec YW Series Illuminated Push Button Complete Unit, Panel, 22 mm Cutout Yellow, SPST, IP65

Subtotal (1 unit)*

₩48,673.20

재고있음

추가로 2026년 1월 19일 부터 10 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩48,673.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 168-2609
제조사 부품 번호:: YW1L-M4E10Q4Y
제조업체:: Idec

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Idec
	Product Type	Push Button Complete Unit
	Illuminated	Yes
	Cutout Diameter	22mm
	Series	YW
	Push Button Actuation	Momentary
	Mount Type	Panel
	Push Button Colour	Yellow
	Contact Configuration	SPST
	Push Button Style	Round
	Terminal Type	Screw
	Push Button Shape	Round
	IP Rating	IP65
	Minimum Operating Temperature	-20°C
	Push Button Diameter	40mm
	Maximum Operating Temperature	55°C
	Push Button Material	Plastic
	Hazardous Area Certification	No
	Standards/Approvals	CCC, C-UL, CE, UKCA, UL
	Body Material	Plastic

	모두 선택
	브랜드 Idec
	Product Type Push Button Complete Unit
	Illuminated Yes
	Cutout Diameter 22mm
	Series YW
	Push Button Actuation Momentary
	Mount Type Panel
	Push Button Colour Yellow
	Contact Configuration SPST
	Push Button Style Round
	Terminal Type Screw
	Push Button Shape Round
	IP Rating IP65
	Minimum Operating Temperature -20°C
	Push Button Diameter 40mm
	Maximum Operating Temperature 55°C
	Push Button Material Plastic
	Hazardous Area Certification No
	Standards/Approvals CCC, C-UL, CE, UKCA, UL
	Body Material Plastic

Datasheet

COO (Country of Origin):: CN

From miniature pilot lights and industrial switches that mount into 8mm panel cut outs through full size industrial switches that mount into 30mm cutouts, we have an industrial switch or indicator for almost any application. Terminations include solder / quick connect terminals, screw terminals, or PC board pins for direct board mounting. Miniature models use snap action gold plated contacts for superior low level switching, whereas larger models use slow-make, double break contacts for switching heavier loads, up to 10A.

Compact and light-weight

Finger-safe screw terminals

22MM YW Series Illuminated Pushbuttons (Plastic Bezel) Momentary Extended LED

Idec YW Series Illuminated Push Button Complete Unit, Panel, 22 mm Cutout Yellow, SPST, IP65
