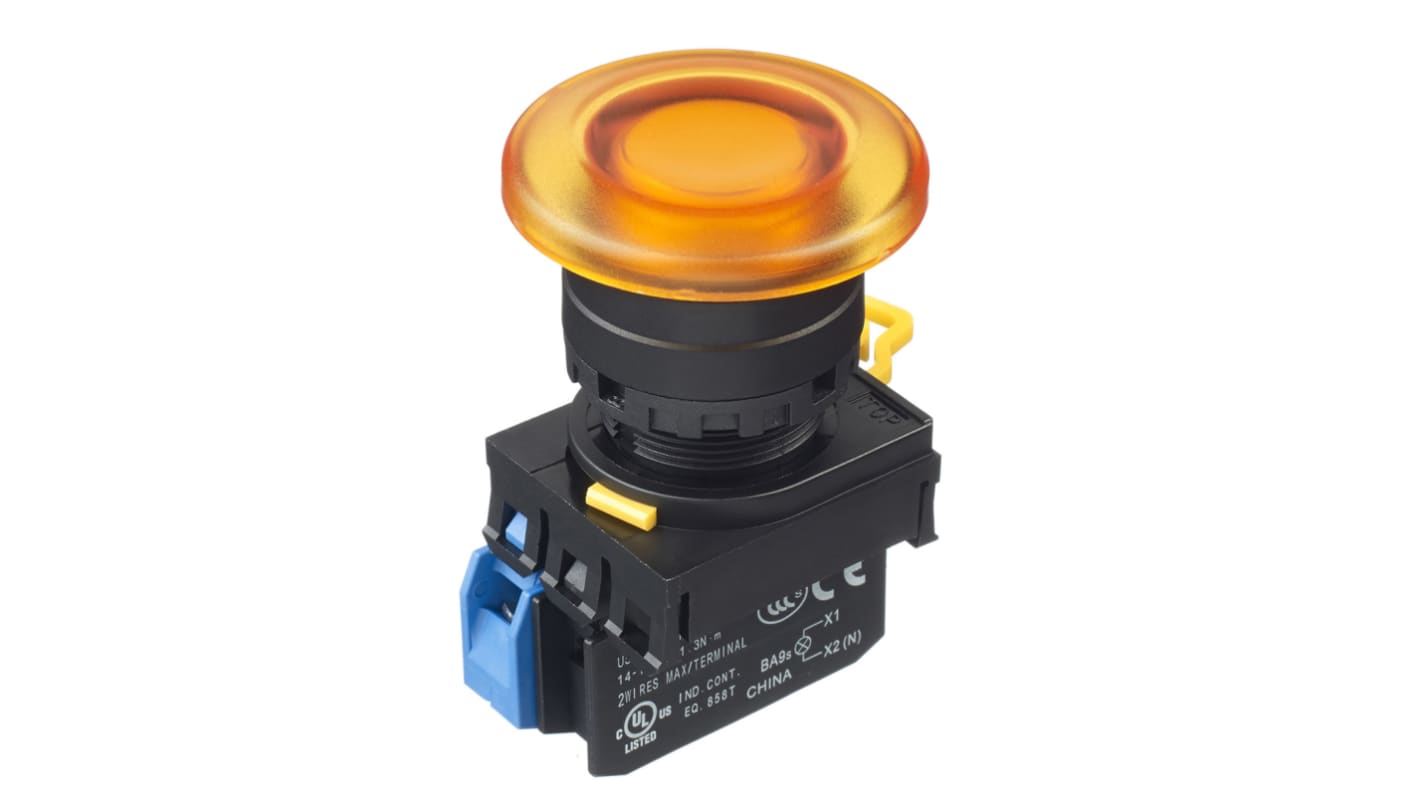

Idec YW Series Illuminated Push Button Complete Unit, Panel Mount, 22mm Cutout, SPST, IP65
- RS 재고 번호:
- 168-2574
- 제조 부품 번호:
- YW1L-A4E10QM3A
- 제조업체:
- Idec
Subtotal (1 unit)*
₩27,579.60
일시적 품절
- 2026년 6월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 + | ₩27,579.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 168-2574
- 제조 부품 번호:
- YW1L-A4E10QM3A
- 제조업체:
- Idec
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Illuminated | Yes | |
| Series | YW | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Amber | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Push Button Diameter | 40mm | |
| Push Button Material | Plastic | |
| Manufacturer Part No. | YW1L-A4E10QM3A | |
| Maximum DC Voltage | 230 / 240V | |
| Body Material | Plastic | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 230 / 240V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Illuminated Yes | ||
Series YW | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Amber | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Push Button Diameter 40mm | ||
Push Button Material Plastic | ||
Manufacturer Part No. YW1L-A4E10QM3A | ||
Maximum DC Voltage 230 / 240V | ||
Body Material Plastic | ||
Terminal Type Screw | ||
Maximum AC Voltage 230 / 240V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- CN
Compact and light-weight
finger-safe screw terminals
Emergency stop switches feature safety lock mechanism, direct opening action, and safe pushbutton design.
Separate contact block makes installation and removal easy. Pilot lights feature a large lens for a wide viewing angle.
Matted surfaces on the buttons, lenses, and bezels reduce reflection of ambient light.
finger-safe screw terminals
Emergency stop switches feature safety lock mechanism, direct opening action, and safe pushbutton design.
Separate contact block makes installation and removal easy. Pilot lights feature a large lens for a wide viewing angle.
Matted surfaces on the buttons, lenses, and bezels reduce reflection of ambient light.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
