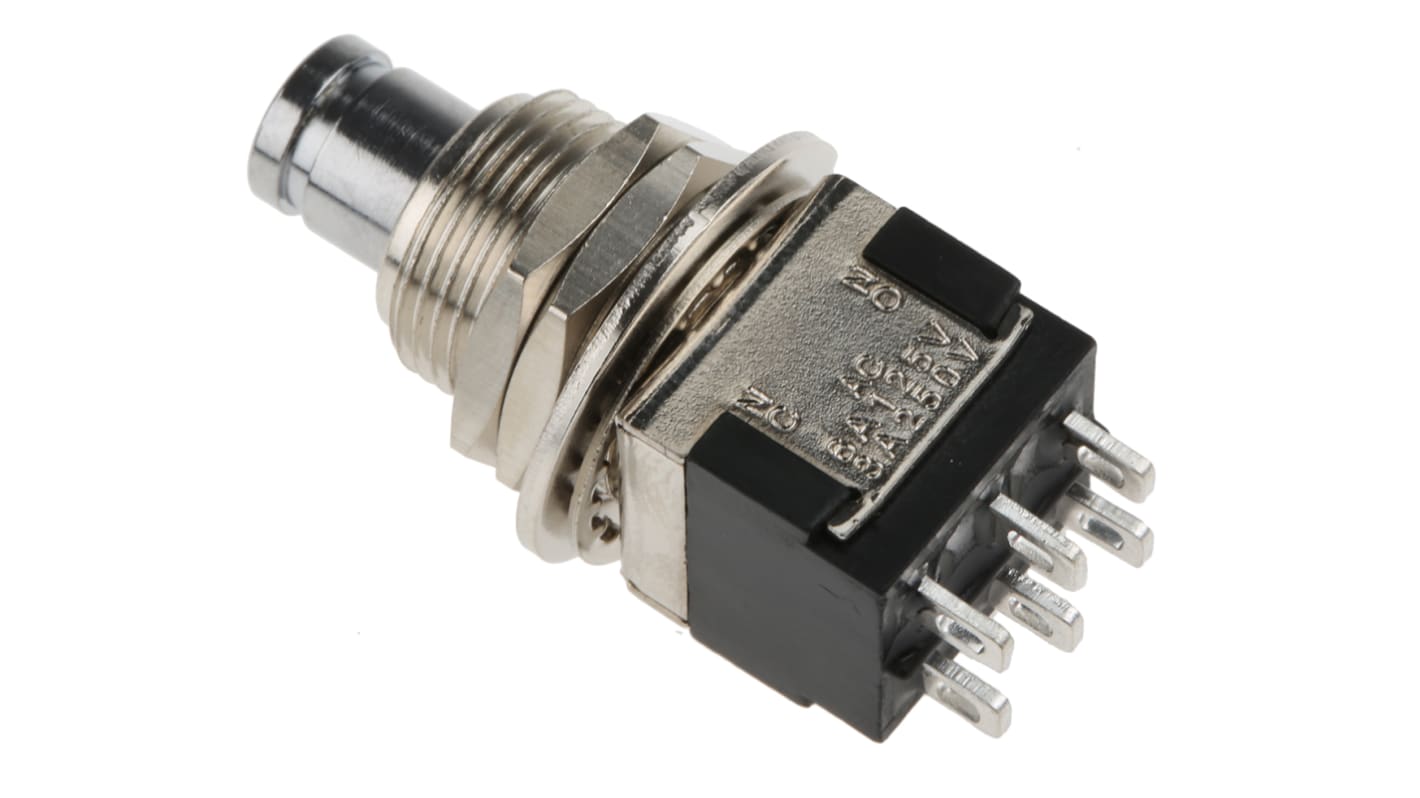

KNITTER-SWITCH MPG Series Push Button Switch, Momentary, Panel, 12.5 mm Cutout, DPDT, IP67 250 V
- RS 제품 번호:
- 134-2513
- Distrelec 제품 번호:
- 300-39-969
- 제조사 부품 번호:
- MPG 206 R
- 제조업체:
- KNITTER-SWITCH
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩25,812.40
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩25,812.40 |
| 10 - 49 | ₩25,041.60 |
| 50 - 99 | ₩24,270.80 |
| 100 - 249 | ₩23,744.40 |
| 250 + | ₩23,218.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 134-2513
- Distrelec 제품 번호:
- 300-39-969
- 제조사 부품 번호:
- MPG 206 R
- 제조업체:
- KNITTER-SWITCH
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | KNITTER-SWITCH | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Illuminated | No | |
| Panel Cutout Size | 12.5 mm | |
| Series | MPG | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 120°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | CSA, UL | |
| Switch Contact Current | 4 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 KNITTER-SWITCH | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Illuminated No | ||
Panel Cutout Size 12.5 mm | ||
Series MPG | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Contact AC Voltage 250V | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 120°C | ||
Switch Configuration On-Off | ||
Standards/Approvals CSA, UL | ||
Switch Contact Current 4 A | ||
- COO (Country of Origin):
- CN
12mm Push-button, Type MPG
Supplied with two panel fixing nuts
Silicone rubber sealing caps available
