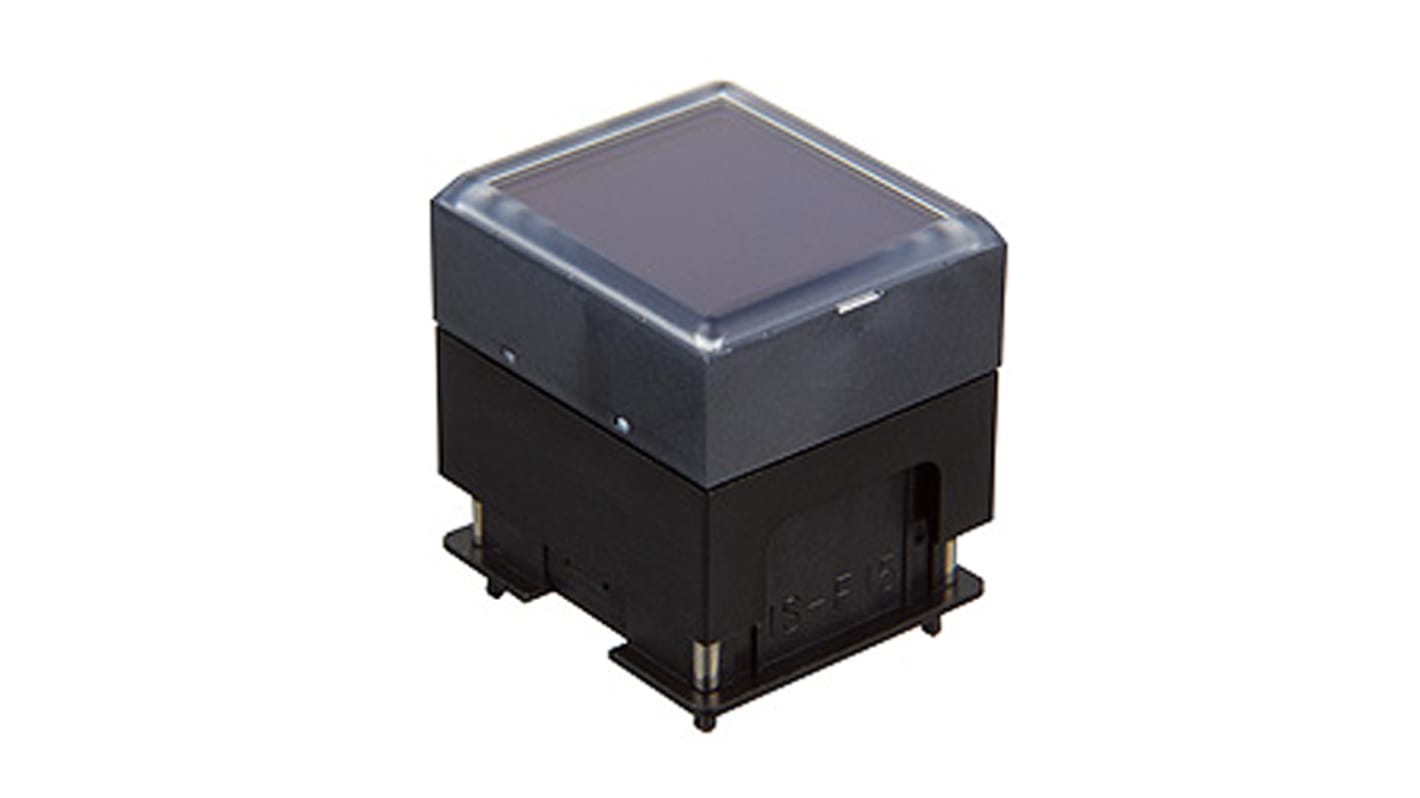

NKK Switches Illuminated Push Button Switch, Momentary, PCB, SPST, Blue, Green, Red LED, 12V dc
- RS 제품 번호:
- 125-1941
- 제조사 부품 번호:
- ISF15ACP4
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩142,660.04
일시적 품절
- 2026년 2월 27일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩142,660.04 |
| 5 - 19 | ₩136,954.24 |
| 20 - 99 | ₩131,250.32 |
| 100 + | ₩128,396.48 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 125-1941
- 제조사 부품 번호:
- ISF15ACP4
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Mounting Type | PCB | |
| Push Button Colour | Silver | |
| Contact Configuration | SPST | |
| Voltage Rating | 12V dc | |
| Push Button Style | Square | |
| LED Colour | Blue, Green, Red | |
| Contact Current Rating | 100 mA | |
| Contact Material | Gold Plated | |
| Contact DC Voltage Rating | 12V | |
| Manufacturer Part No. | ISF15ACP4 | |
| Case Colour | Black | |
| Terminal Type | PC Pin | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Mounting Type PCB | ||
Push Button Colour Silver | ||
Contact Configuration SPST | ||
Voltage Rating 12V dc | ||
Push Button Style Square | ||
LED Colour Blue, Green, Red | ||
Contact Current Rating 100 mA | ||
Contact Material Gold Plated | ||
Contact DC Voltage Rating 12V | ||
Manufacturer Part No. ISF15ACP4 | ||
Case Colour Black | ||
Terminal Type PC Pin | ||
- COO (Country of Origin):
- JP
NKK Frameless OLED Pushbutton SmartSwitch
Features and Benefits
• High definition, contrast, resolution of 96RGB x 64 pixels in compact screen and minimal frame
• 65,536 colours in 16 bit mode
• 50,000 minimum hours operating life
• Ultra thin frame providing full screen capacity
• Multiple units combining to form one screen
• Silent smooth operation • Identical dimensions of switch and footprint aids current switch replacement
• Command operation and data supplied via serial communications (SPI)
• Bitmap display function incorporated
• Low energy consumption
• Construction - Dust tight
• Secure mounting and alignment snap in standoff
• Gold plated twin contacts
• PC terminals epoxy sealed
• Viewing area 21.28 x 18.74 mm (Horizontal x Vertical)
• 65,536 colours in 16 bit mode
• 50,000 minimum hours operating life
• Ultra thin frame providing full screen capacity
• Multiple units combining to form one screen
• Silent smooth operation • Identical dimensions of switch and footprint aids current switch replacement
• Command operation and data supplied via serial communications (SPI)
• Bitmap display function incorporated
• Low energy consumption
• Construction - Dust tight
• Secure mounting and alignment snap in standoff
• Gold plated twin contacts
• PC terminals epoxy sealed
• Viewing area 21.28 x 18.74 mm (Horizontal x Vertical)
NKK Pushbutton Switches
