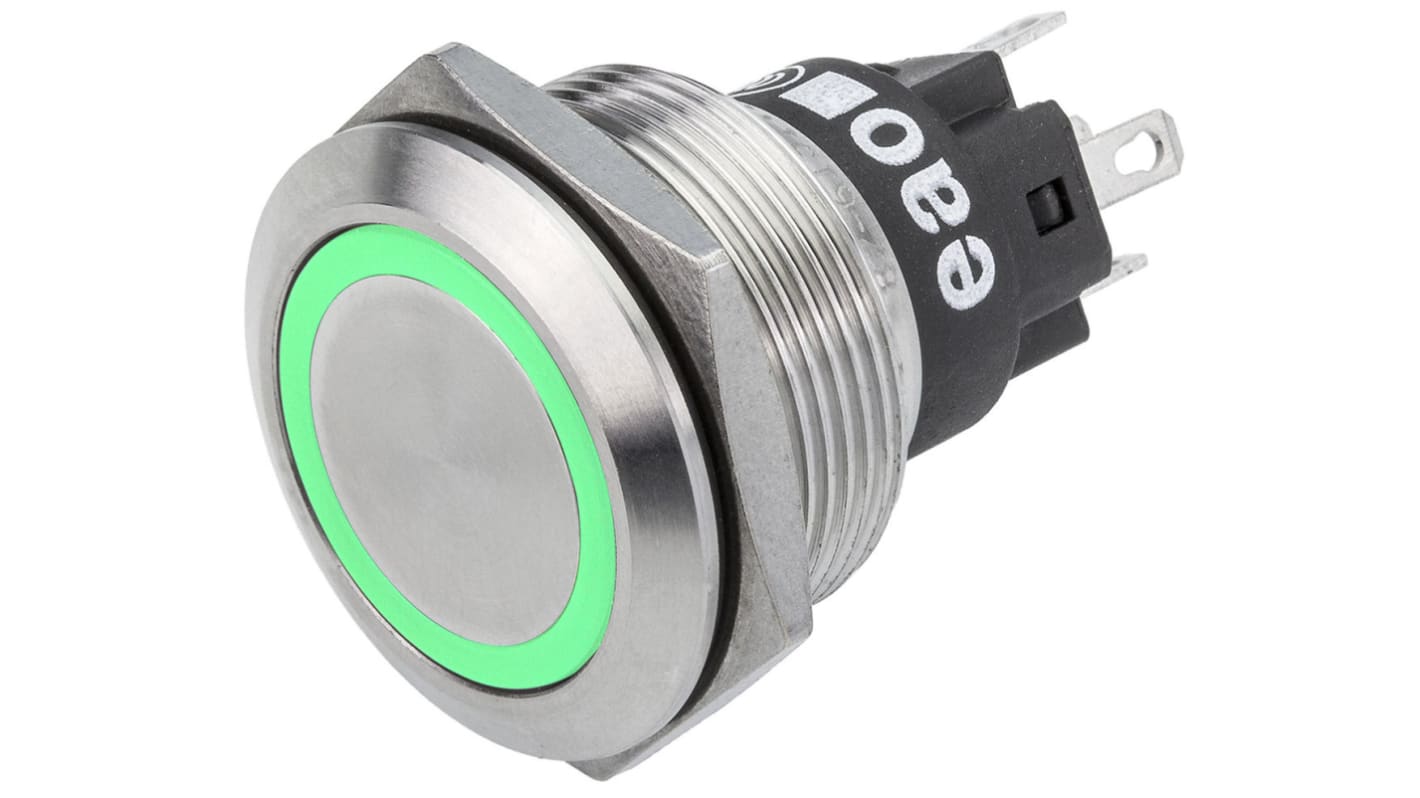

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3mm Cutout, SPDT, Green LED, 240V, IP65, IP67

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩28,500.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 22일 부터 278 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩28,500.80
10 - 24₩27,636.00
25 - 49₩26,808.80
50 - 149₩26,263.60
150 +₩25,643.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
124-4509
Distrelec 제품 번호:
110-72-579
제조사 부품 번호:
82-6151.1134
제조업체:
EAO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EAO

Switch Operation

Momentary

Illuminated

Yes

Panel Cut Out Diameter

22.3mm

Series

82

Mounting Type

Panel Mount

Push Button Colour

Silver

Contact Configuration

SPDT

Voltage Rating

240V

Push Button Style

Round

LED Colour

Green

IP Rating

IP65, IP67

Push Button Material

Stainless Steel

Contact Current Rating

3A

Contact Material

Silver Alloy

Case Colour

Silver

Contact AC Voltage Rating

240V

Contact DC Voltage Rating

240V

Manufacturer Part No.

82-6151.1134

Operating Temperature Range

-30°C to +70°C

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+70°C

Terminal Type

Plug In, Solder

COO (Country of Origin):
CH

EAO Series 82 Stainless Steel Illuminated Anti-Vandal Switch


EAO Series 82 of robust stainless steel housed vandal resistant switches. Series 82 have been designed to adhere to IK10 impact resistance & IP67 sealing requirements, making them suitable for exposed public applications. The series 82 are offered with either silver alloyed or gold-plated contacts, to offer reliable switching for low voltages & currents.

Features and Benefits

Vandal resistant: IK10 impact resistance & frontal protection up to IP67.
Optional illumination & laser marking options available.
Excellent, crisp tactile feedback.
> 1 million cycles of operation.

Typical Applications

Exposed public areas.
Medical equipment.
Audio and video equipment.
Building management.
Machinery & factory equipment.

EAO Momentary Green LED Push Button Switch, 250V AC Switching Voltage, 10mA - 82 Series - 82-6151.1134


Choose this easy-to-use push button from EAO to control functions on your industrial equipment. It's designed for flush mounting on panels, and its 22mm cut-out diameter means it's a good fit for setups with limited space. This switch has an LED ring that's green in colour, making it ideal for use as an 'on' switch. As it's a momentary push button, it only performs an action when it's pressed down, so you can use it for precise machine control. Thanks to its IP67 rating, it's protected against dust and submersion in 1m of water for up to 30 minutes.

Features & Benefits


• LED operating current of 10mA for energy efficiency
• Stainless steel body for resistance to impact and corrosion
• Light weight of 18g for reduced strain on the panel
• Long mechanical lifespan of one million operations for long-term performance
• Switching voltage of 250V AC for use in low-voltage systems

Applications


• Building management systems
• Medical equipment
• Industrial automation

Can I use this push button in extreme temperatures?


Yes, this push button has a broad operating temperature range of -30ºC to +70ºC, making it suitable for use in demanding conditions.
