Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPDT, Red LED

RS 제품 번호:: 123-8169
Distrelec 제품 번호:: 303-02-568
제조사 부품 번호:: XB5AW34M5
제조업체:: Schneider Electric

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPDT, Red LED

Subtotal (1 unit)*

₩61,006.00

재고있음

추가로 2026년 2월 23일 부터 9 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩61,006.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 123-8169
Distrelec 제품 번호:: 303-02-568
제조사 부품 번호:: XB5AW34M5
제조업체:: Schneider Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Switch Operation	Spring Return
	Actuator Colour	Red
	Product Type	Push Button Switch
	Illuminated	Yes
	Panel Cutout Size	22 mm
	Series	Harmony XB5
	Mount Type	Panel
	Contact Configuration	SPDT
	LED Colour	Red
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Contact AC Voltage	240V ac
	Actuator Style	Round
	Maximum Operating Temperature	70°C
	Switch Configuration	1 NO/1 NC
	Standards/Approvals	UL 508, JIS C8201-5-1, JIS C8201-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14
	Switch Contact Current	10 A
	Height	42mm
	Length	57mm
	Width	30 mm
	Legend	Blank

	모두 선택
	브랜드 Schneider Electric
	Switch Operation Spring Return
	Actuator Colour Red
	Product Type Push Button Switch
	Illuminated Yes
	Panel Cutout Size 22 mm
	Series Harmony XB5
	Mount Type Panel
	Contact Configuration SPDT
	LED Colour Red
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Contact AC Voltage 240V ac
	Actuator Style Round
	Maximum Operating Temperature 70°C
	Switch Configuration 1 NO/1 NC
	Standards/Approvals UL 508, JIS C8201-5-1, JIS C8201-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No. 14
	Switch Contact Current 10 A
	Height 42mm
	Length 57mm
	Width 30 mm
	Legend Blank

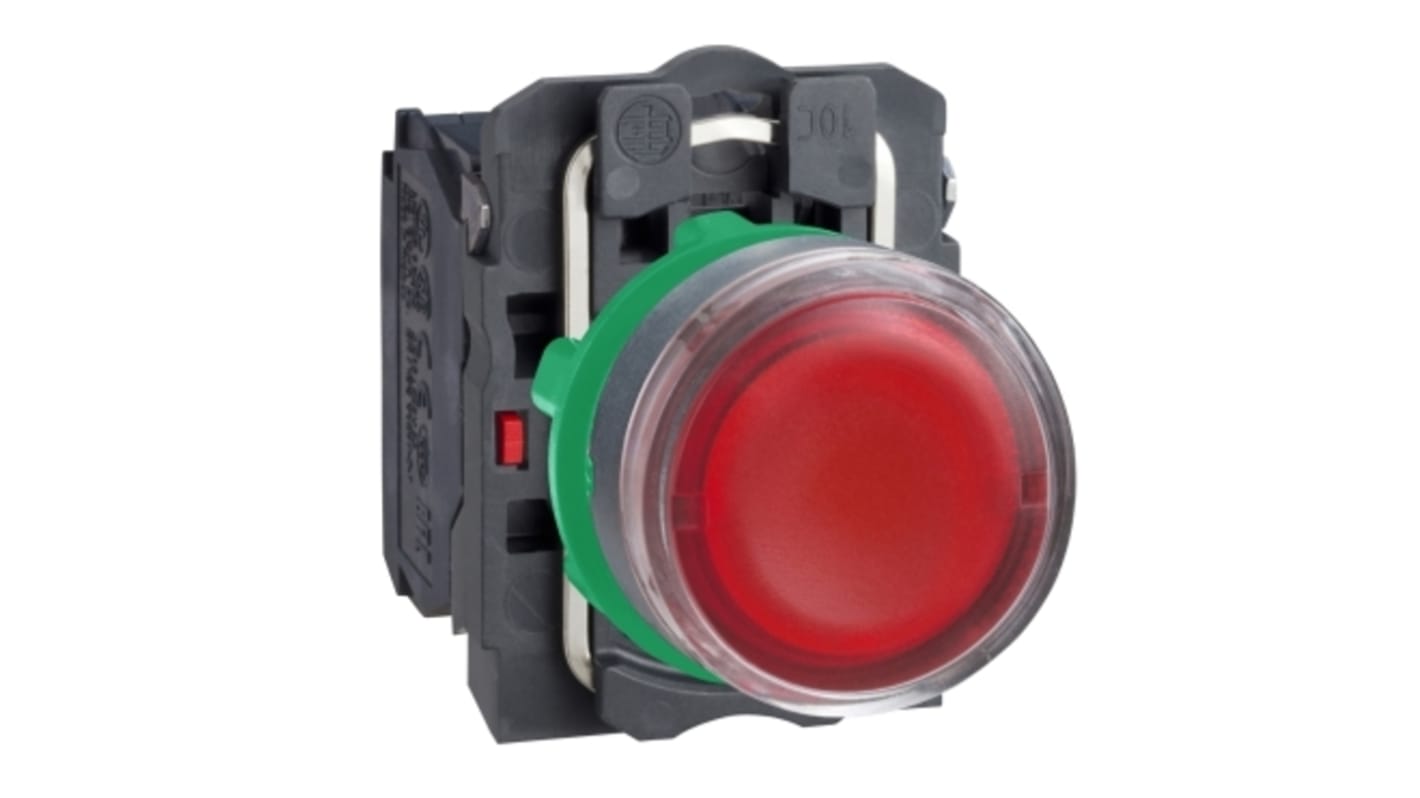

Schneider Electric Harmony XB5 Series Push Button, Illuminated, Round Style - XB5AW34M5

This illuminated push button is a reliable component in the automation and electrical sectors. The push button features a round red design, manufactured from durable plastic, and is designed for panel mounting. With a diameter of 22mm, it integrates well into various control systems while maintaining a streamlined appearance.

Features & Benefits

• Illuminated design enhances visibility in low-light conditions

• Red colour ensures easy identification in control panels

• SPDT configuration supports a variety of applications

• Spring return mechanism provides efficient operation and safety

• Robust construction ensures longevity under rigorous conditions

• Compatible with universal LED light sources for versatile use

Applications

• Used in industrial controls for machinery and equipment

• Employed in lighting systems for quick activation

• Ideal for control panels in HVAC

• Utilised in automation systems for reliable signalling

What are the electrical characteristics of this component?

The component supports a rated supply voltage of 230...240 V AC and operates within a temperature range of -25°C to +70°C, ensuring functionality in various environments. It features screw terminals suitable for cables conforming to EN/IEC 60947-1 standards, allowing easy and secure connections.

How can this button withstand harsh operating conditions?

Its construction allows it to resist high pressure washing up to 7000000 Pa at 55°C, and it meets IP66, IP67, and IP69K standards for moisture and dust protection, ensuring it remains functional in challenging settings.

What is the expected lifespan of this push button?

This button has a mechanical durability of 10 million cycles and an electrical durability of 1 million cycles, making it highly reliable for frequent use in operational settings.
