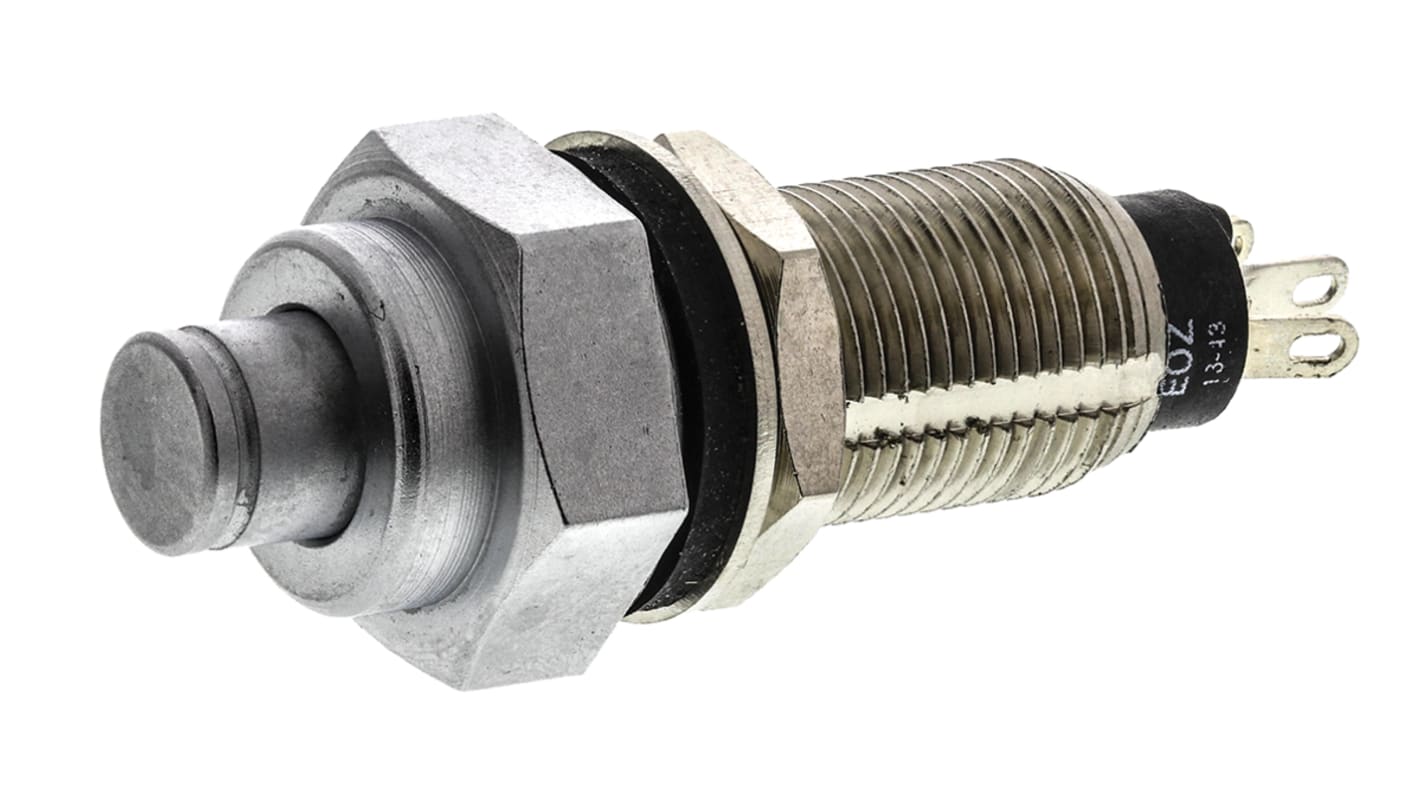

EOZ DJET Series Push Button Switch, Momentary, Panel, 10 mm Cutout, SPST, IP67
- RS 제품 번호:
- 115-6053
- 제조사 부품 번호:
- 17.17282.22
- 제조업체:
- EOZ
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩118,101.60
재고있음
- 536 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩118,101.60 |
| 10 - 49 | ₩114,548.40 |
| 50 - 99 | ₩111,032.80 |
| 100 - 249 | ₩108,645.20 |
| 250 + | ₩106,295.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 115-6053
- 제조사 부품 번호:
- 17.17282.22
- 제조업체:
- EOZ
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EOZ | |
| Actuator Colour | Silver | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | DJET | |
| Panel Cutout Size | 10 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Actuator Style | Round | |
| Contact AC Voltage | 110V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | CO | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 2.5 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 EOZ | ||
Actuator Colour Silver | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series DJET | ||
Panel Cutout Size 10 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Actuator Style Round | ||
Contact AC Voltage 110V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration CO | ||
Standards/Approvals RoHS | ||
Switch Contact Current 2.5 A | ||
- COO (Country of Origin):
- CH
This 17.17282.22 momentary push button switch has a mat chrome finish.
Features and Benefits
• Silver contact material is an excellent conductor of both electricity and heat and is a strong metal that easily resists corrosion and rust.
• IP67 front sealing – (totally protected against dust and protected against the effects of temporary immersion in liquids between 15cm and 1m. Duration of test 30 minutes).
• Single pole switch which controls just one circuit.
• Momentary push switch button only makes electrical contact whilst held in that position, once you let go the switch returns to the off position.
• Fit in to a mounting hole of 10 mm.
DJET miniature pushbuttons
These DJET series toggle and pushbutton switches are ideal for use across a number of industries and environments such as:-
• Outdoor applications
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies
How are they fitted?
The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.
