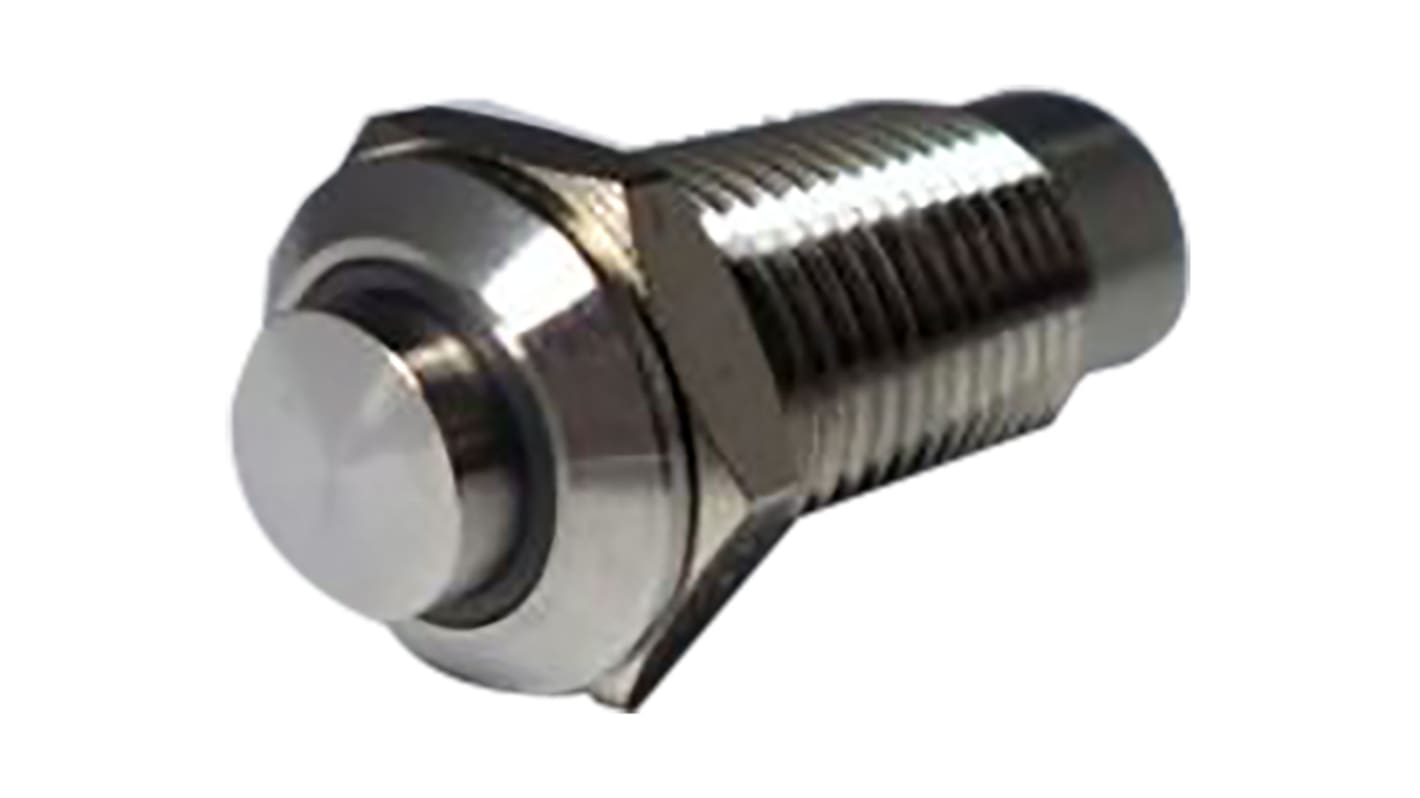

RS PRO 1116513 Series Illuminated Push Button Switch, Latching, Panel, 12 mm Cutout, SPST, Blue LED, IP40, 36 V dc

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩20,572.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 6월 29일 부터 59 개 단위 배송
  • 추가로 2026년 10월 01일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 9₩20,572.50
10 - 24₩19,948.50
25 - 49₩19,344.00
50 - 249₩18,934.50
250 +₩15,580.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
111-6513
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Latching

Illuminated

Yes

Series

1116513

Panel Cutout Size

12 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Quick Connect

LED Colour

Blue

IP Rating

IP40

Contact DC Voltage

36V dc

Minimum Operating Temperature

-20°C

Actuator Style

Round

Maximum Operating Temperature

55°C

Switch Configuration

SPST

Switch Contact Current

1A

Standards/Approvals

RoHS

COO (Country of Origin):
TW

RS PRO Single Pole Single Throw (SPST) Latching Blue LED Push Button Switch, IP65, IP67, 12 mm (Dia.), Panel Mounting, 24 V AC/DC


Need a switch you can use both indoors and outdoors? This RS PRO switch keeps your machines and panels functioning in harsh conditions. It's a good choice for busy public spaces as it's vandal-proof, thanks to its high impact resistance rating of IK08.

The stainless steel material makes this switch highly durable, while the silver alloy contacts provide excellent conductivity. The switch has a blue LED ring, making it easy to see when it's running.

This type of switch is commonly used by transport companies, vending machine manufacturers and local council maintenance departments. You can use it on a wide range of devices, such as security keypads, ticket machines and signal-controlled pedestrian crossings.

Features and Benefits


  • Silver actuator colour

  • Round actuator shape

  • Raised actuator type

  • Single pole single throw (SPST) contact configuration

  • Contact current rating of 15 mA

  • Contact voltage rating of 36 V DC

  • Silver alloy contact material

  • Illuminated

  • Ingress Protection (IP) rating of IP65 and IP67

  • Blue LED colour

  • Panel mounting type

  • Panel cut-out size of 12 mm (diameter)

  • Latching switch operation

  • Quick-connect terminal type

  • Voltage rating of 24 V AC/DC
