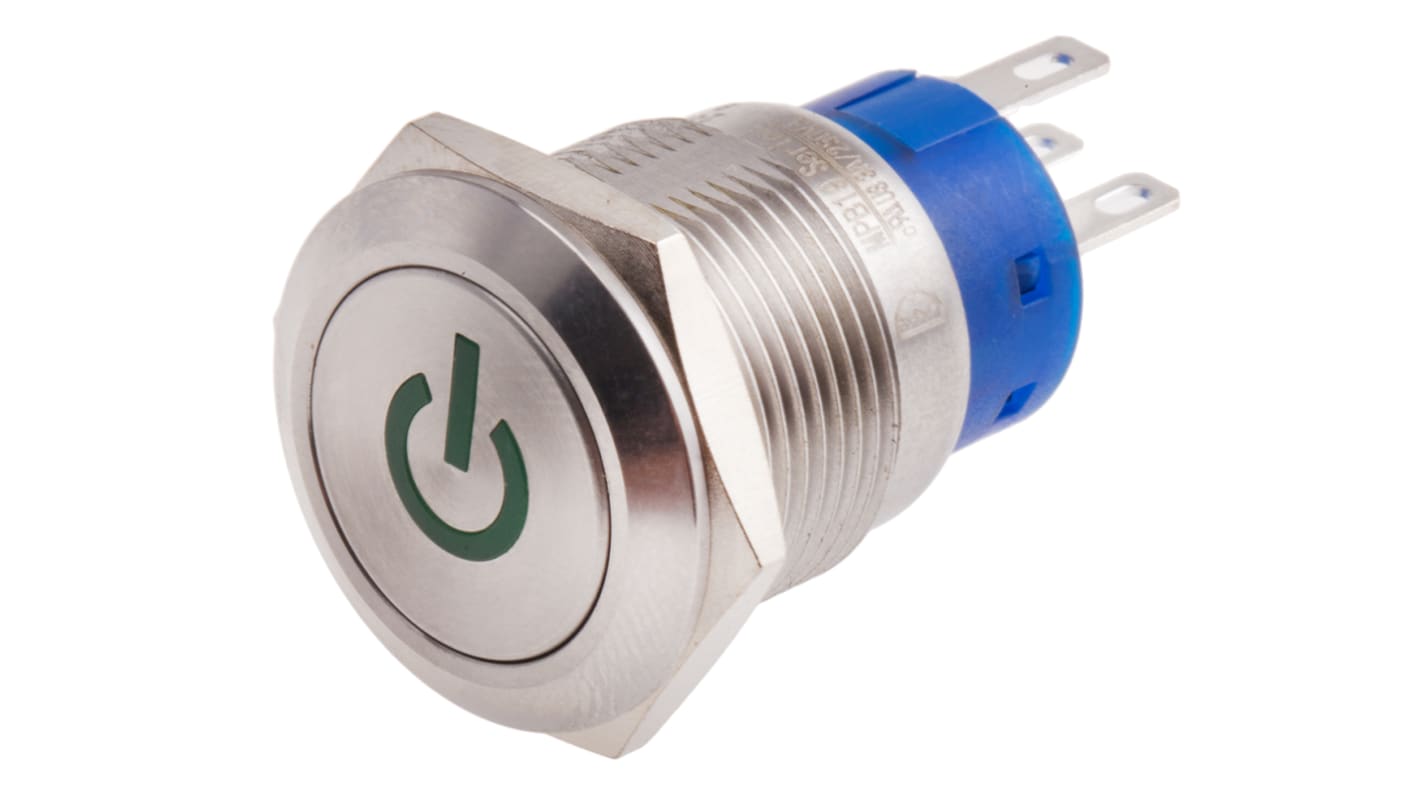

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, Green LED, 250V ac, IP67
- RS 제품 번호:
- 111-3903
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩22,578.80
재고있음
- 162 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩22,578.80 |
| 10 - 24 | ₩21,902.00 |
| 25 - 49 | ₩21,225.20 |
| 50 - 249 | ₩20,774.00 |
| 250 + | ₩17,089.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-3903
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 19mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | SPDT | |
| Voltage Rating | 250V ac | |
| Push Button Style | Round | |
| LED Colour | Green | |
| IP Rating | IP67 | |
| Contact Current Rating | 5 A | |
| Contact Material | Copper | |
| Legend | Power Symbol | |
| Manufacturer Part No. | MPB19-D0F11P-624-JQ | |
| Case Colour | Natural | |
| Contact AC Voltage Rating | 250V | |
| Terminal Type | Solder Pin | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cut Out Diameter 19mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration SPDT | ||
Voltage Rating 250V ac | ||
Push Button Style Round | ||
LED Colour Green | ||
IP Rating IP67 | ||
Contact Current Rating 5 A | ||
Contact Material Copper | ||
Legend Power Symbol | ||
Manufacturer Part No. MPB19-D0F11P-624-JQ | ||
Case Colour Natural | ||
Contact AC Voltage Rating 250V | ||
Terminal Type Solder Pin | ||
- COO (Country of Origin):
- CN
RS PRO Single Pole Double Throw (SPDT) Latching Green LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC
This RS PRO single pole double throw (SPDT) latching green LED push button switch lets you control the flow of electricity in your circuit. It's clearly marked with a power symbol, making it easy to identify. You'll commonly find it in industrial environments like scientific labs and food production lines.
The switch's IP67 rating means it's resistant to dust and submersion in up to one metre of water for 30 minutes. It has copper contacts for good connectivity, so there's no need to worry about losing power while you work.
For ease of installation, this product can be panel mounted or soldered into place. This switch is often used in machinery, medical equipment and communications technology.
The switch's IP67 rating means it's resistant to dust and submersion in up to one metre of water for 30 minutes. It has copper contacts for good connectivity, so there's no need to worry about losing power while you work.
For ease of installation, this product can be panel mounted or soldered into place. This switch is often used in machinery, medical equipment and communications technology.
Features and Benefits
- Round, flat silver actuator
- Natural case colour
- Contact AC voltage rating of 250 V AC
- Single Pole Double Throw (SPDT) contact configuration
- Contact current rating of 5 A
- Copper contact material
- Illuminated
- Illumination voltage of 24 V
- IP67 rated
- Green LED colour
- Power symbol
- Panel mounting type
- Panel cut out size of 19 mm (diameter)
- Standards met include cULus Recognized E 187490, ENEC 18, IK10
- Latching switch operation
- Solder pin terminal type
