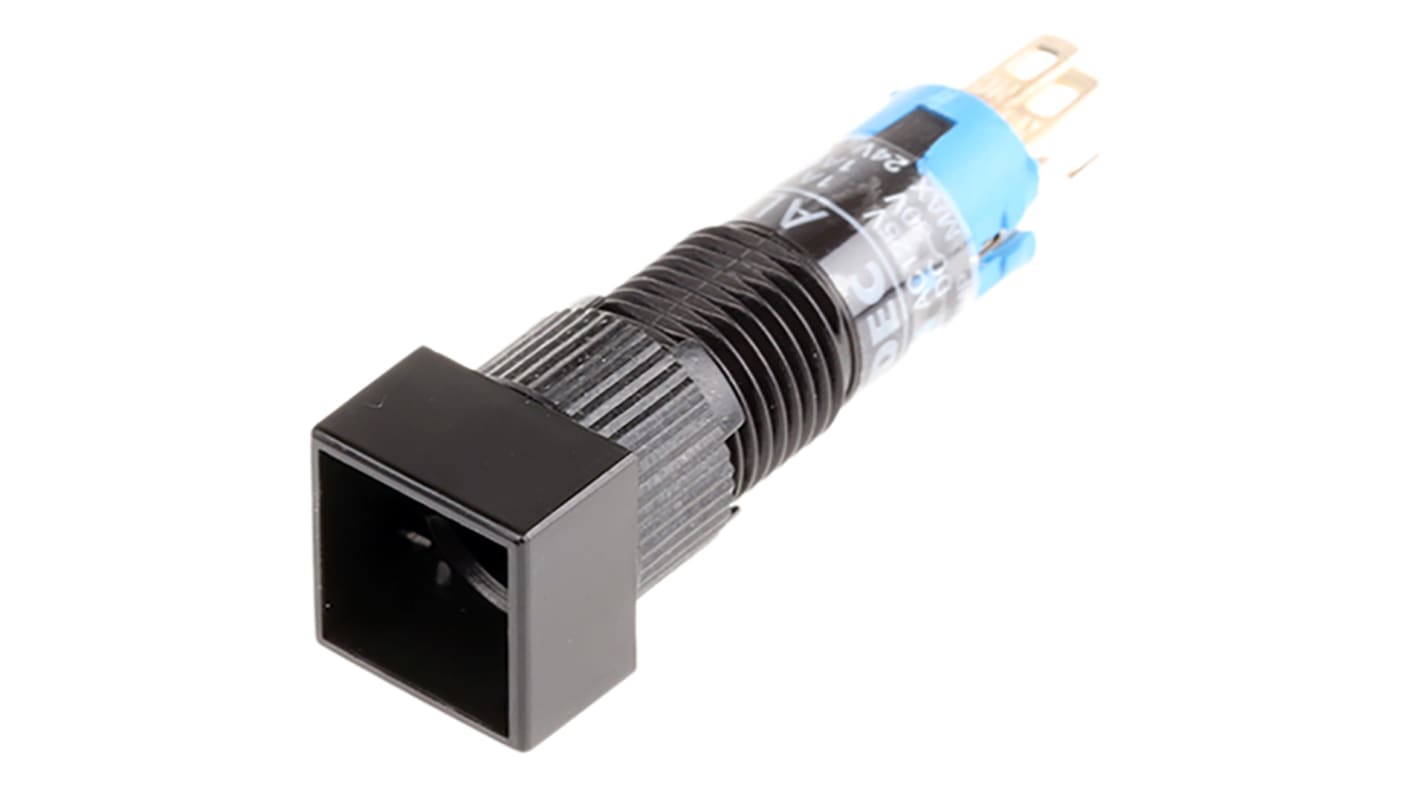

Idec AL Series Illuminated Miniature Push Button Switch, Momentary, Panel, 8 mm Cutout, SPDT, IP40

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩11,524.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 85 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩11,524.40
10 - 49₩11,280.00
50 - 99₩10,922.80
100 - 249₩10,678.40
250 +₩10,452.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
664-755
제조사 부품 번호:
AL8Q-M10
제조업체:
Idec
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Idec

Actuator Colour

Black

Product Type

Miniature Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Panel Cutout Size

8 mm

Series

AL

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

IP Rating

IP40

Contact AC Voltage

125V

Actuator Style

Cylinder

Maximum Operating Temperature

120°C

Switch Configuration

On-Off

Switch Contact Current

100 mA

Standards/Approvals

UL, CSA

COO (Country of Origin):
JP

8mm Sub-miniature Illuminated Push-button Switches


8mm contact indicators for panel mounting

LED illumination, Suitable LEDs are supplied separately

Indicators are available in both square and round styles

Solder Tab terminals

LEDs


A range of LEDs specifically for use with this sub-miniature indicator series

Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)

Note: When not illuminated, the green LED appears to be yellow.

Lenses


Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc

Note

Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.
