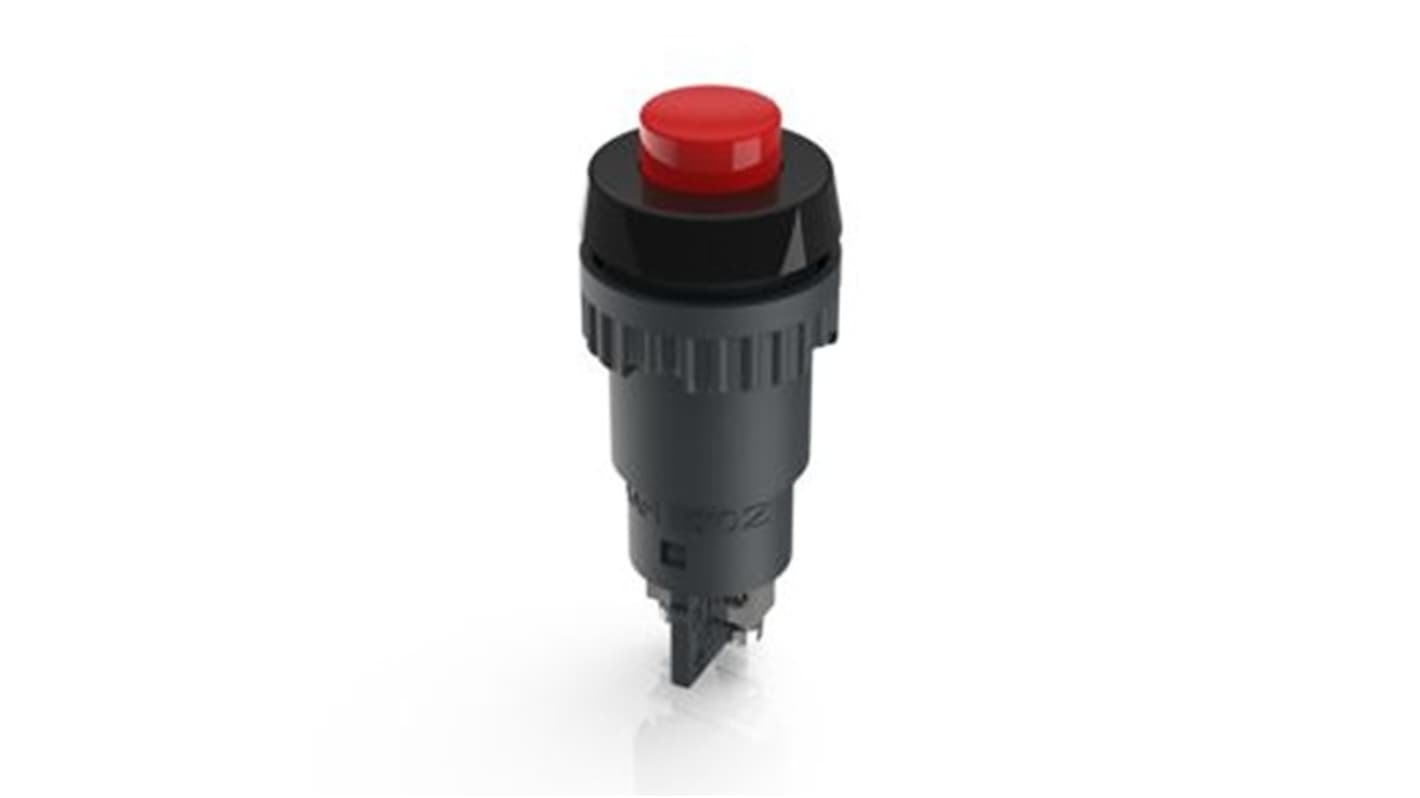

RAFI 1.1 Series Illuminated Push Button, Momentary, Through Hole, 16.2 mm Cutout, 1 NO, IP40, IP65 250 V ac
- RS 제품 번호:
- 524-619
- 제조사 부품 번호:
- 1.10.102.001/0301
- 제조업체:
- RAFI
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 524-619
- 제조사 부품 번호:
- 1.10.102.001/0301
- 제조업체:
- RAFI
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RAFI | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Product Type | Illuminated Push Button | |
| Illuminated | No | |
| Series | 1.1 | |
| Panel Cutout Size | 16.2 mm | |
| Mount Type | Through Hole | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| IP Rating | IP40, IP65 | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -25°C | |
| Contact AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | 1 NO | |
| Standards/Approvals | REACH, RoHS | |
| Length | 20mm | |
| Height | 50mm | |
| Width | 20 mm | |
| Switch Contact Current | 2 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 RAFI | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Product Type Illuminated Push Button | ||
Illuminated No | ||
Series 1.1 | ||
Panel Cutout Size 16.2 mm | ||
Mount Type Through Hole | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
IP Rating IP40, IP65 | ||
Actuator Style Round | ||
Minimum Operating Temperature -25°C | ||
Contact AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration 1 NO | ||
Standards/Approvals REACH, RoHS | ||
Length 20mm | ||
Height 50mm | ||
Width 20 mm | ||
Switch Contact Current 2 A | ||
- COO (Country of Origin):
- HU
The RAFI Pushbutton features a momentary contact function and a non-illuminated design. It is a dependable choice for applications in mechanical and system engineering, model construction, and home technology. Its screw terminal connection ensures straightforward and reliable installation.
Red bezel colour
Mounting hole 16.2 mm
IP65 and IP40 protection
Contact function 1 NO
RoHS and REACH compliant
