EAO 61 Series Illuminated Push Button Switch, Snap Action, Plug-in, DPST, 150 V

RS 제품 번호:: 441-659
제조사 부품 번호:: 61-8460.12
제조업체:: EAO

EAO 61 Series Illuminated Push Button Switch, Snap Action, Plug-in, DPST, 150 V

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩24,770.88

일시적 품절

2026년 4월 13일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩24,770.88

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 441-659
제조사 부품 번호:: 61-8460.12
제조업체:: EAO

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	EAO
	Switch Operation	Snap Action
	Product Type	Push Button Switch
	Illuminated	Yes
	Series	61
	Mount Type	Plug-in
	Contact Configuration	DPST
	Terminal Type	Plug
	Minimum Operating Temperature	-25°C
	Actuator Style	Push Button
	Contact DC Voltage	150V
	Switch Configuration	Snap Action
	Maximum Operating Temperature	70°C
	Standards/Approvals	CB (IEC 61058-1), CENELEC CCA-NTR (EN 60947-5-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), EN IEC 60947-5-1, SEV (EN / IEC 60947-5-1), RoHS Compliant, REACH Compliant, NFF, EN IEC 61058-1, CB (IEC 60947-5-1), 2014 / 35 / EU (LVD), 2011 / 65 / EC (RoHS), UKCA, UL CE
	Switch Contact Current	3 A

	모두 선택
	브랜드 EAO
	Switch Operation Snap Action
	Product Type Push Button Switch
	Illuminated Yes
	Series 61
	Mount Type Plug-in
	Contact Configuration DPST
	Terminal Type Plug
	Minimum Operating Temperature -25°C
	Actuator Style Push Button
	Contact DC Voltage 150V
	Switch Configuration Snap Action
	Maximum Operating Temperature 70°C
	Standards/Approvals CB (IEC 61058-1), CENELEC CCA-NTR (EN 60947-5-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), EN IEC 60947-5-1, SEV (EN / IEC 60947-5-1), RoHS Compliant, REACH Compliant, NFF, EN IEC 61058-1, CB (IEC 60947-5-1), 2014 / 35 / EU (LVD), 2011 / 65 / EC (RoHS), UKCA, UL CE
	Switch Contact Current 3 A

Datasheet - 61-8460.12

COO (Country of Origin):: CH

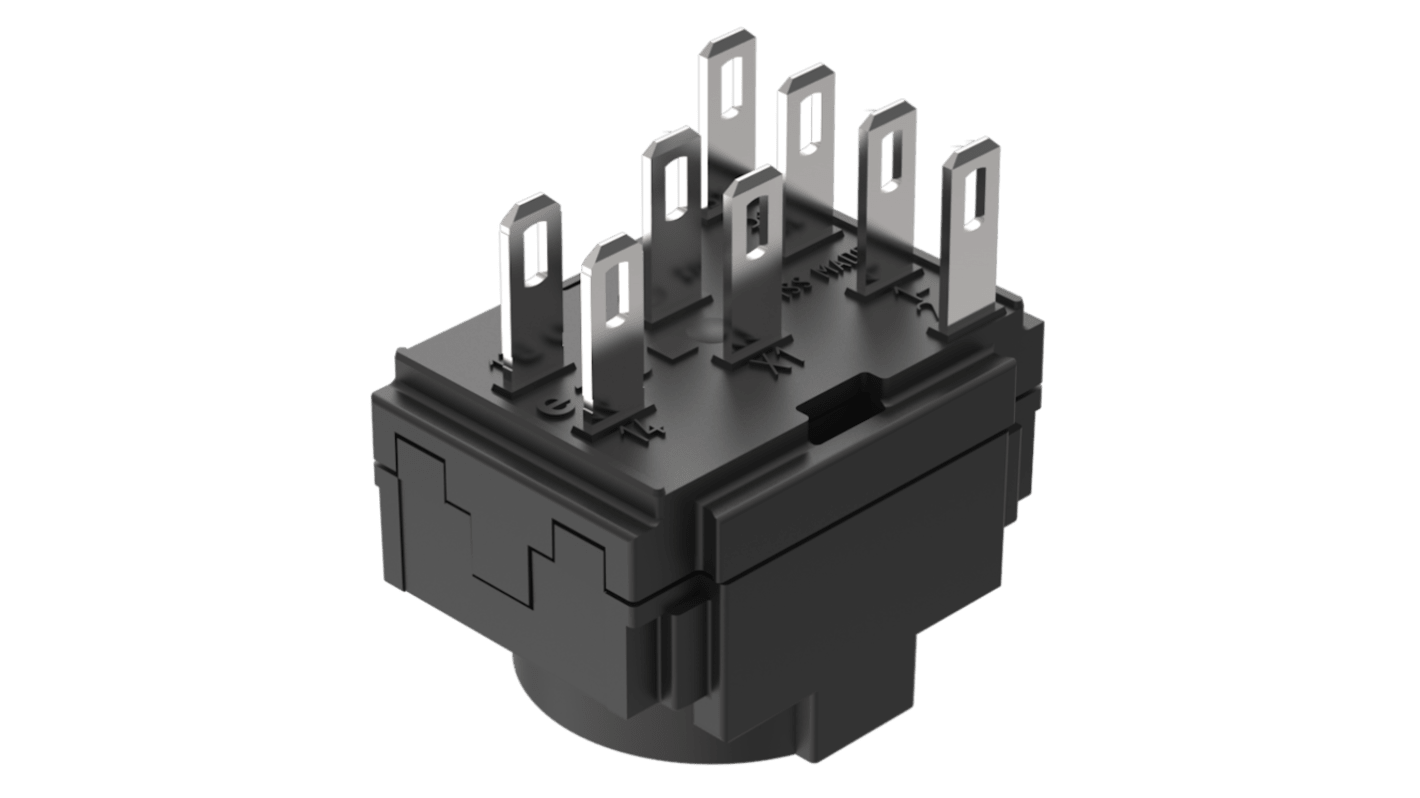

The EAO Switching Element represents a reliable solution for your electrical control needs, designed with precision to enhance performance and longevity. With its snap-action mechanism, it guarantees consistent operation, making it ideal for a range of industrial applications. The unique combination of normally closed contacts offers versatility, accommodating various wiring configurations. Built to withstand challenging environments, this component ensures operational efficacy across a wide temperature range. Its sturdy construction and high-quality materials culminate in a product that not only meets but exceeds industry standards.

The compact design facilitates easy installation in various setups

Silver contacts provide superior conductivity and durability

Rated for high electrical lifetime, ensuring fewer replacements

Ability to handle significant electrical loads enhances reliability

Designed for both AC and DC applications boosts versatility

The plug-in terminal simplifies the wiring process

Shock and vibration resistance ensures stability in dynamic conditions

Conforms to stringent international safety standards for peace of mind

Environmentally compliant materials contribute to sustainability initiatives

Compact weight facilitates lightweight applications without sacrificing quality

EAO 61 Series Illuminated Push Button Switch, Snap Action, Plug-in, DPST, 150 V
