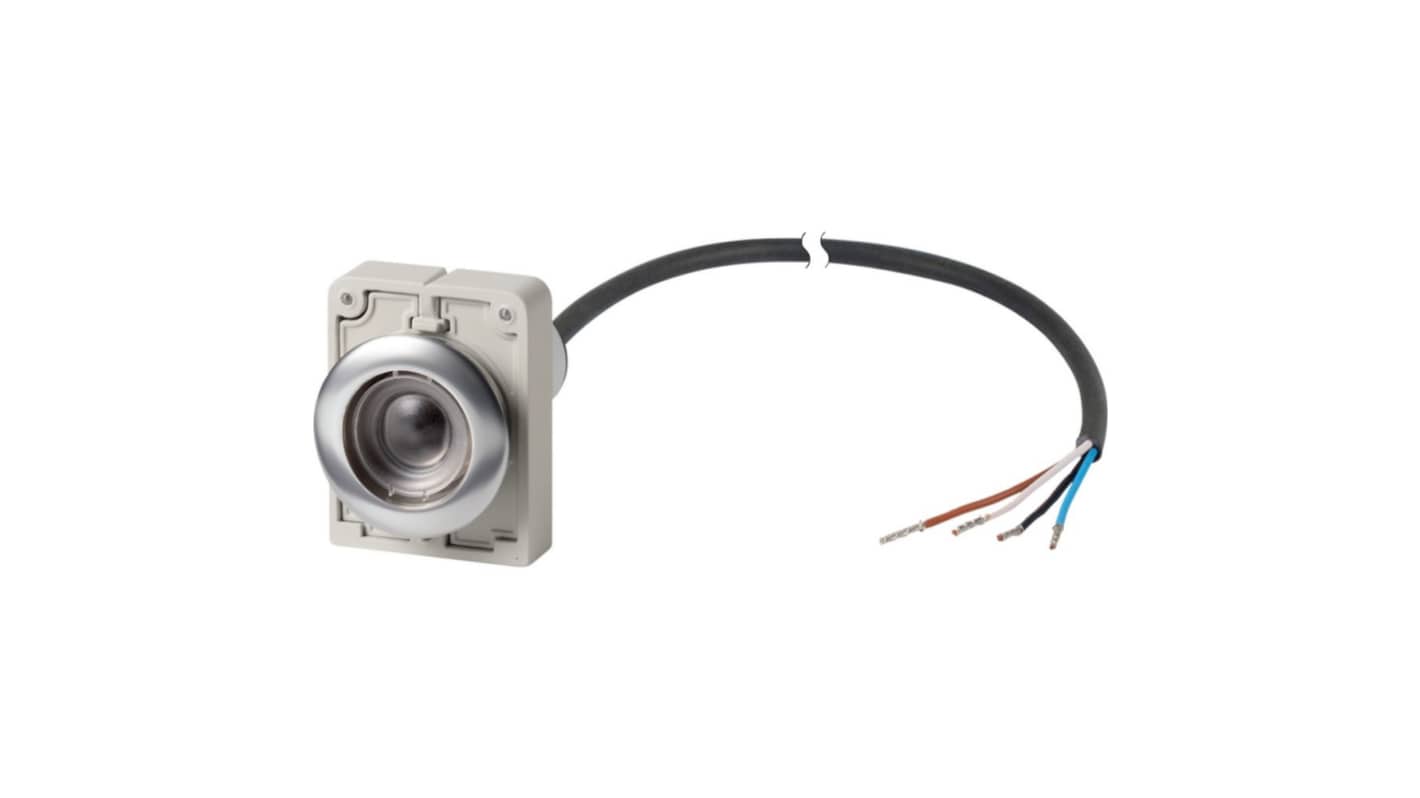

Eaton C30C Series Push Button Switch, Cable, 30.5 mm Cutout, 1 NO, IP69K, IP67 800 V ac
- RS 제품 번호:
- 246-576
- 제조사 부품 번호:
- 185963 C30C-FD-X-K10-P65
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩122,397.40
일시적 품절
- 2026년 5월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩122,397.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-576
- 제조사 부품 번호:
- 185963 C30C-FD-X-K10-P65
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Panel Cutout Size | 30.5 mm | |
| Series | C30C | |
| Mount Type | Cable | |
| Contact Configuration | 1 NO | |
| Terminal Type | Cable | |
| IP Rating | IP69K, IP67 | |
| Contact AC Voltage | 800V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | Momentary | |
| Height | 46mm | |
| Width | 36 mm | |
| Switch Contact Current | 4 A | |
| Standards/Approvals | VDE 0660, IEC/EN 60947-5-1, CSA-C22.2 No. 14-18 and No. 94.2-15, UL File No.: E29184, UL Category Control No.: NKCR, UL 508, CSA File No.: 165628, CE marking, CSA Class No.: 321103 | |
| Length | 3560mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Panel Cutout Size 30.5 mm | ||
Series C30C | ||
Mount Type Cable | ||
Contact Configuration 1 NO | ||
Terminal Type Cable | ||
IP Rating IP69K, IP67 | ||
Contact AC Voltage 800V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration Momentary | ||
Height 46mm | ||
Width 36 mm | ||
Switch Contact Current 4 A | ||
Standards/Approvals VDE 0660, IEC/EN 60947-5-1, CSA-C22.2 No. 14-18 and No. 94.2-15, UL File No.: E29184, UL Category Control No.: NKCR, UL 508, CSA File No.: 165628, CE marking, CSA Class No.: 321103 | ||
Length 3560mm | ||
제외
- COO (Country of Origin):
- DE
The Eaton Moeller series C30 pushbutton actuator is engineered for precision and reliability in demanding operational environments. Designed with a flat, momentary action, it provides a robust solution for various control applications. The actuator is equipped with a non-terminated, 4-pole cable that ensures seamless integration into your existing systems. Built with high-quality materials, including a metal bezel and chrome finish, it offers both durability and aesthetic appeal. The versatile mounting options allow for tailored installations, while its exceptional performance capabilities, highlighted by a rated impulse withstand voltage of 800 V AC, make it a standout choice for automation solutions. This product not only meets strict industry standards but also ensures user confidence with outstanding operational reliability.
Durable metal construction assures long-lasting performance
Flat design enhances compatibility with various installations
High-quality chrome bezel adds to aesthetic appeal
Rated impulse withstand voltage enhances safety during operation
Offers momentary action for precise control
Robust damping resistance to mechanical shock ensures reliability
Wide operational temperature range supports diversified environments
Sealed construction guarantees protection against moisture and dust
