ITW Switches 76-94 Series Push Button Switch, Momentary, Panel Mount, 22mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS Stock No.:
- 199-245
- Mfr. Part No.:
- 76-9440/439088N
- Brand:
- ITW Switches

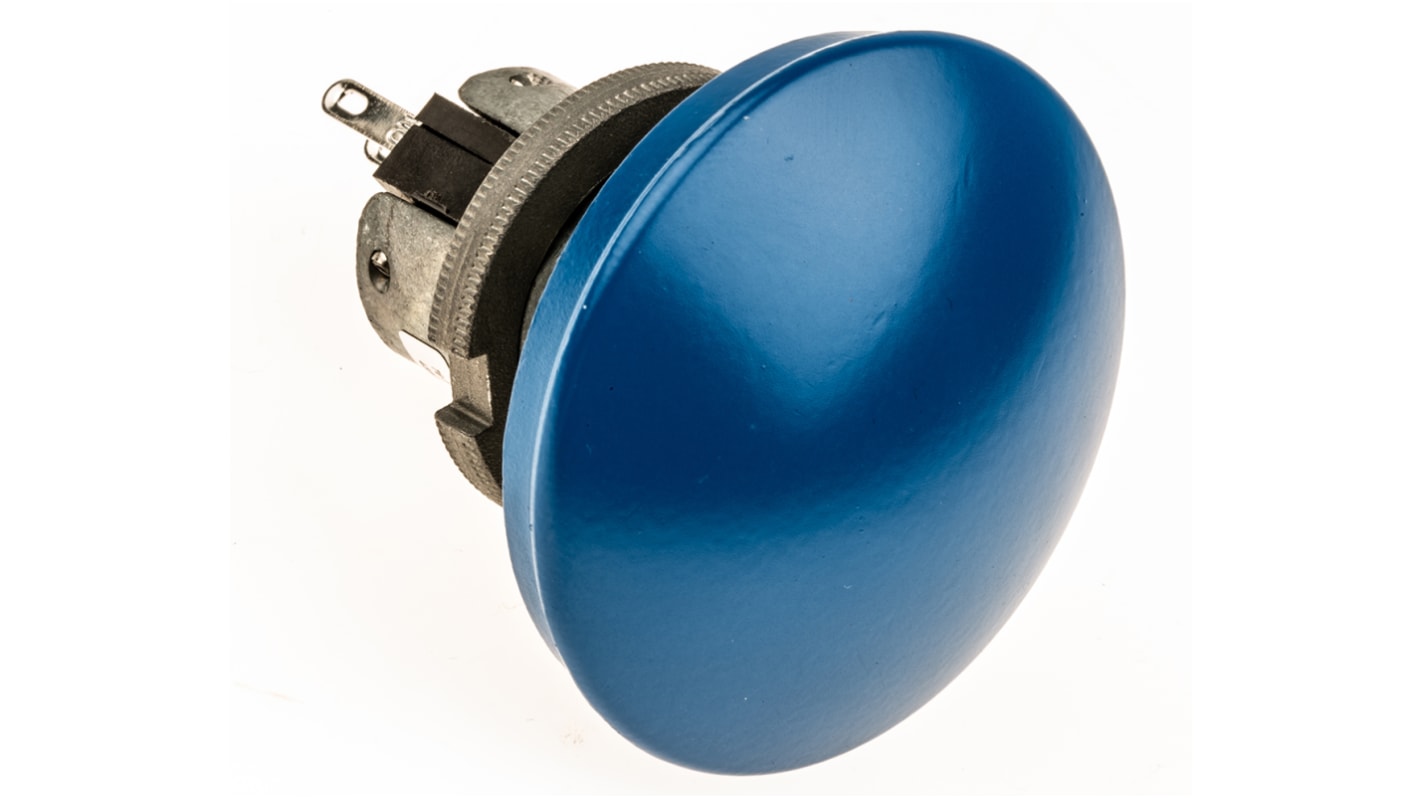

Image representative of range
Bulk discount available
Subtotal (1 unit)*
₩42,732.40
재고있음
- 추가로 2025년 12월 15일 부터 416 개 단위 배송
- 추가로 2025년 12월 22일 부터 1,530 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 - 7 | ₩42,732.40 |
| 8 - 14 | ₩41,660.80 |
| 15 + | ₩41,021.60 |
*price indicative
- RS Stock No.:
- 199-245
- Mfr. Part No.:
- 76-9440/439088N
- Brand:
- ITW Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | ITW Switches | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22mm | |
| Series | 76-94 | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Blue | |
| Contact Configuration | Single Pole Double Throw (SPDT) | |
| Voltage Rating | 250V ac | |
| Push Button Style | Mushroom | |
| LED Colour | Clear | |
| IP Rating | IP67 | |
| Contact Current Rating | 10.1 A @ 250 V ac | |
| Contact Material | Fine Silver | |
| Case Colour | Black | |
| Manufacturer Part No. | 76-9440/439088N | |
| Contact AC Voltage Rating | 250V | |
| Operating Temperature Range | -40 → +125°C | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Select all | ||
|---|---|---|
브랜드 ITW Switches | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 22mm | ||
Series 76-94 | ||
Mounting Type Panel Mount | ||
Push Button Colour Blue | ||
Contact Configuration Single Pole Double Throw (SPDT) | ||
Voltage Rating 250V ac | ||
Push Button Style Mushroom | ||
LED Colour Clear | ||
IP Rating IP67 | ||
Contact Current Rating 10.1 A @ 250 V ac | ||
Contact Material Fine Silver | ||
Case Colour Black | ||
Manufacturer Part No. 76-9440/439088N | ||
Contact AC Voltage Rating 250V | ||
Operating Temperature Range -40 → +125°C | ||
Terminal Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- BZ
High Impact IP67 Pushbutton Switches
The 76-94 Series from ITW, have been designed to cover a wide range of harsh environmental applications. Such as:-
• Military Environments
• Robust Industrial
• Vandal resistant requirements
• Mining Industries
• Petrochemical
• Process control
• Material Handling
• Robust Industrial
• Vandal resistant requirements
• Mining Industries
• Petrochemical
• Process control
• Material Handling
Features and Benefits
• The range is available in 3 styles, push-button, rotary and panel lamp.
• Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
• The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
• The indicator version is available with a red, green or amber lens.
• Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• The bezels and the actuators have been designed from non- sparking zinc alloy.
• Explosive-proof material used.
• Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
• The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
• The indicator version is available with a red, green or amber lens.
• Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• The bezels and the actuators have been designed from non- sparking zinc alloy.
• Explosive-proof material used.
