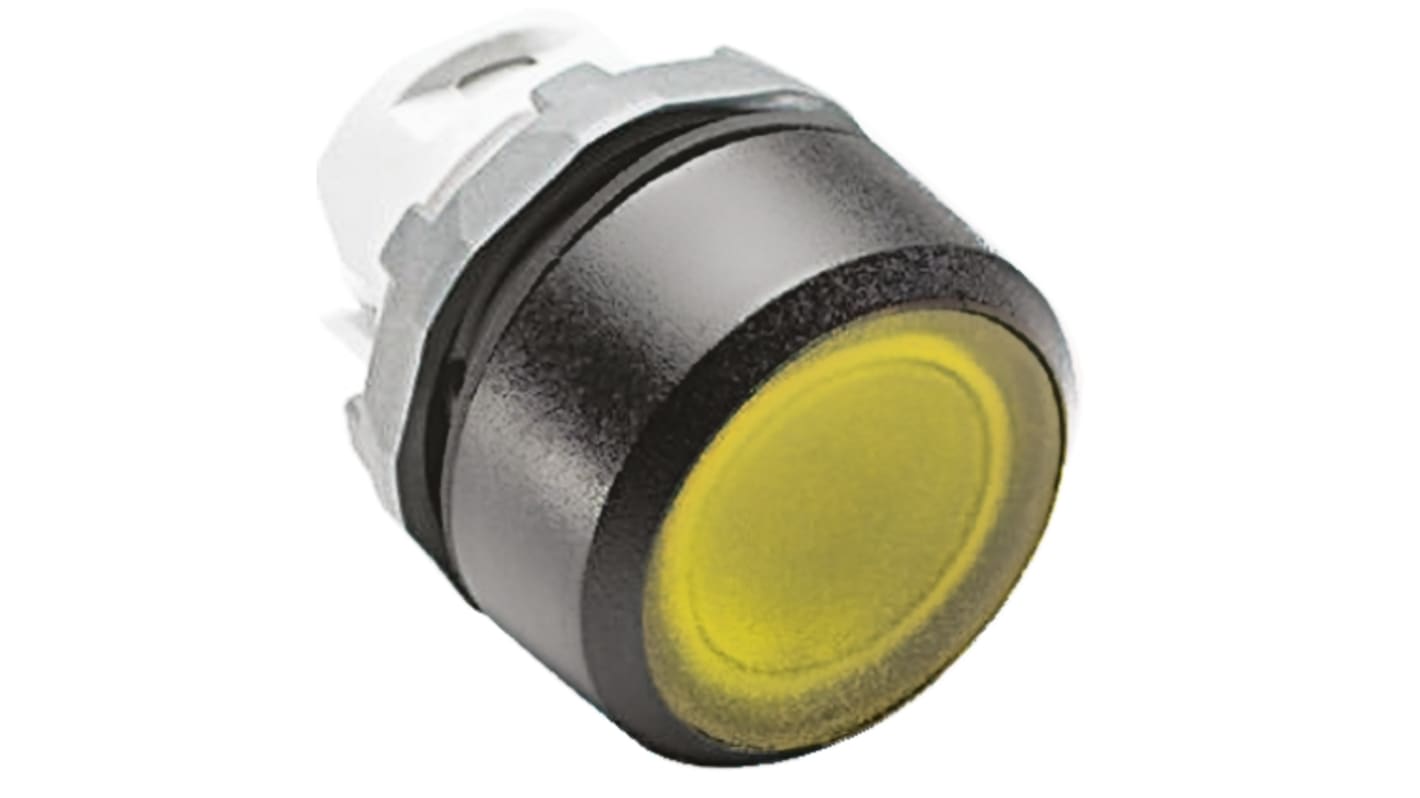

ABB ABB Modular Series Yellow Momentary Push Button Head, 22 mm Cutout, IP66

RS 제품 번호:: 757-8724
제조사 부품 번호:: 1SFA611100R1103 MP1-11Y
제조업체:: ABB

ABB ABB Modular Series Yellow Momentary Push Button Head, 22 mm Cutout, IP66

모든 Push Button Heads 열람하기

Subtotal (1 unit)*

₩10,320.00

재고있음

22 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩10,320.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 757-8724
제조사 부품 번호:: 1SFA611100R1103 MP1-11Y
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	Push Button Head
	Series	ABB Modular
	Cutout Diameter	22mm
	Push Button Colour	Yellow
	Push Button Shape	Round
	Push Button Actuation	Momentary
	Push Button Style	Round
	Push Button Material	Plastic
	IP Rating	IP66
	Push Button Marking	Unmarked
	Push Button Diameter	22mm
	Body/Fixing Collar Included	No
	Standards/Approvals	IEC/EN 60947-5-5, UL 508, CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1
	Hazardous Area Certification	No

	모두 선택
	브랜드 ABB
	Product Type Push Button Head
	Series ABB Modular
	Cutout Diameter 22mm
	Push Button Colour Yellow
	Push Button Shape Round
	Push Button Actuation Momentary
	Push Button Style Round
	Push Button Material Plastic
	IP Rating IP66
	Push Button Marking Unmarked
	Push Button Diameter 22mm
	Body/Fixing Collar Included No
	Standards/Approvals IEC/EN 60947-5-5, UL 508, CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1
	Hazardous Area Certification No

제외

COO (Country of Origin):: CH

ABB Modular Series Push Button Head, 22mm Cutout Diameter, Yellow - 1SFA611100R1103 MP1-11Y

This push-button head provides a compact, round actuator intended for control panels and operator stations in industrial environments. It is designed for momentary actuation and constructed from plastic, offering a straightforward input device for signalling or control tasks where a bright, unmarked yellow control point is required. The component fits a 22mm panel cut-out and is suitable for installations demanding a sealed interface.

Features and Benefits:

• IP66 rating delivers protection against dust and high-pressure water jets • 22mm diameter ensures compatibility with standard panel cut-outs • Momentary actuation enables temporary signal input during operation • Unmarked yellow finish offers clear Visual identification without legends • Plastic construction reduces weight while maintaining actuator durability • Complies with IEC/EN and North American standards for interoperability

Applications

• Suitable for use in machine control panels requiring sealed push interfaces • Ideal for emergency or attention signalling where bright yellow is needed • Used for temporary operator inputs in industrial automation systems • Can be used with modular control stations in electrical switchgear

What environmental protection does it provide for outdoor use?

The enclosure meets IP66, which prevents dust ingress and resists powerful water jets, allowing use in harsh wash-down or exposed conditions.

How is the device installed into a control panel?

It requires a 22mm diameter cut-out and is designed to be mounted into standard panel holes for straightforward retrofit or new-panel assembly.

What standards support its safe integration into equipment?

It is manufactured to meet multiple international and regional standards for control devices, including IEC/EN 60947 series and UL 508, facilitating compliance with common safety frameworks.

Which colour and marking options does it present for identification?

The actuator is supplied in yellow and is unmarked, providing a conspicuous, blank surface for custom labelling or universal signalling schemes.

Note

Light bulb max. 2 W, not included.
