Eaton Red Maintained Push Button Actuator, 22.5 mm Cutout, IP69K, IP67

RS 제품 번호:: 276-6553
제조사 부품 번호:: 216751 M22-DRP-R-X0
제조업체:: Eaton

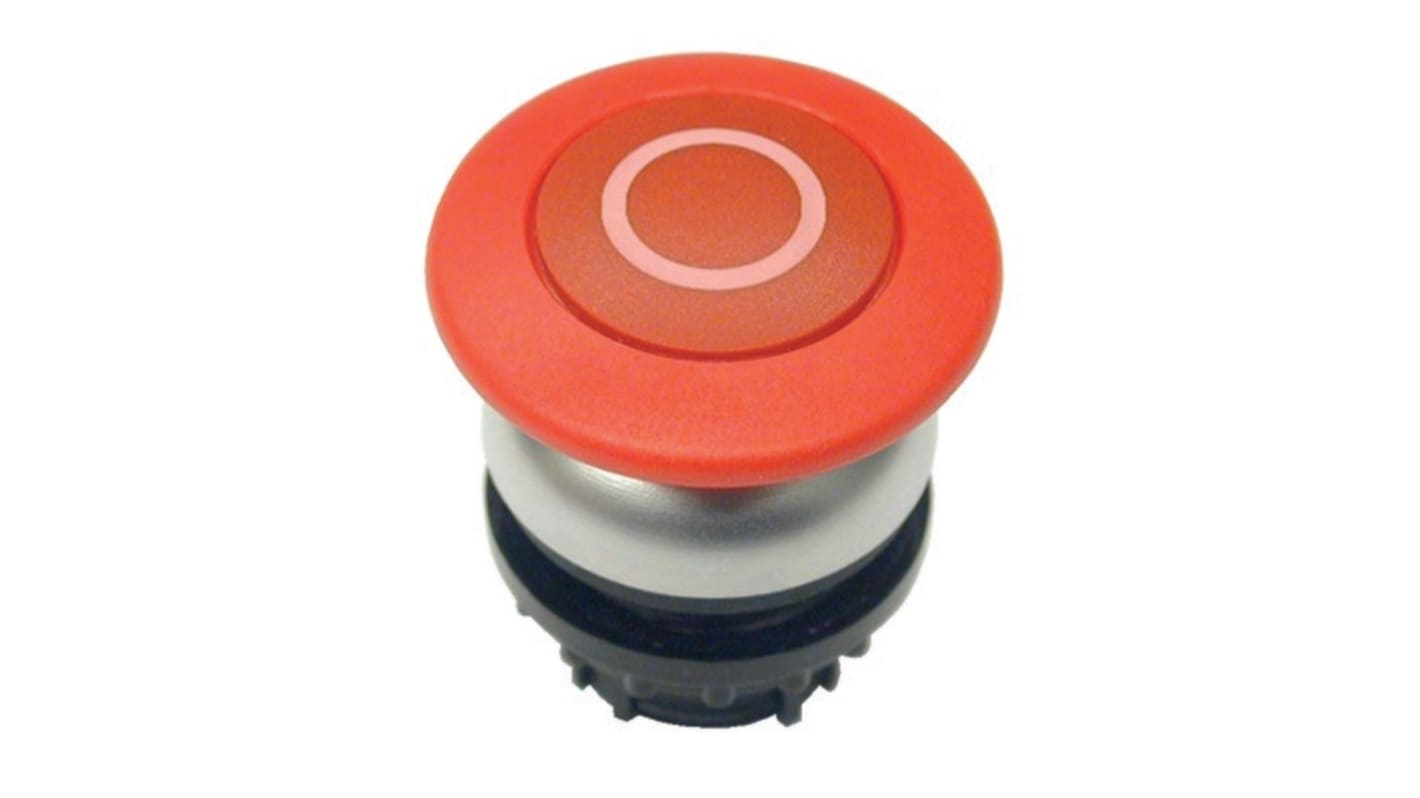

Eaton Red Maintained Push Button Actuator, 22.5 mm Cutout, IP69K, IP67

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 5 units)*

₩215,640.00

일시적 품절

2026년 11월 12일 부터 5 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 +	₩43,128.00	₩215,638.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 276-6553
제조사 부품 번호:: 216751 M22-DRP-R-X0
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Push Button Actuator
	Series	Eaton Moeller
	Cutout Diameter	22.5mm
	Push Button Colour	Red
	Push Button Shape	Mushroom
	Push Button Actuation	Maintained
	Push Button Style	Flat
	Push Button Material	Plastic
	IP Rating	IP69K, IP67
	Push Button Marking	O
	Push Button Diameter	22mm
	Standards/Approvals	DNV, RoHS, IEC/EN 60947-5, IEC/EN 60947, GL, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CSA Class No.:3211-03, CSA, UL Category Control No.:NKCR, CE, LR, CSA File No.:012528, UL File No.:E29184, VDE 0660, UL, UL 508
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Product Type Push Button Actuator
	Series Eaton Moeller
	Cutout Diameter 22.5mm
	Push Button Colour Red
	Push Button Shape Mushroom
	Push Button Actuation Maintained
	Push Button Style Flat
	Push Button Material Plastic
	IP Rating IP69K, IP67
	Push Button Marking O
	Push Button Diameter 22mm
	Standards/Approvals DNV, RoHS, IEC/EN 60947-5, IEC/EN 60947, GL, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, CSA Class No.:3211-03, CSA, UL Category Control No.:NKCR, CE, LR, CSA File No.:012528, UL File No.:E29184, VDE 0660, UL, UL 508
	Hazardous Area Certification No

Datasheet - 216751

COO (Country of Origin):: DE

Eaton Push Button Actuator, 22.5mm Cutout Diameter, Red - 216751 M22-DRP-R-X0

This push-button actuator is a maintained mushroom-headed control designed for industrial panels where a high-visibility emergency-style operator is required. It provides a manually latched red actuator with an inscribed O marking and a flat front element, intended for use in switchgear assemblies that require robust operator interfaces and straightforward mounting into a 22.5 mm cut-out.

Features and Benefits:

• IP69K IP67 waterproof actuator provides washdown resistance
• 22.5 mm cut-out supports standard panel-mount installation
• 22 mm flat mushroom push-button offers large contact area
• Actuating force 5N ensures consistent manual operation
• Mechanical lifespan 1,000,000 operations for long service life
• Operating temperature range -25°C to 70°C suits varied environments

Applications

• Suitable for emergency‑stop style control stations in machinery panels
• Ideal for food processing where IP69K wash‑down is required
• Used with industrial control cabinets requiring UL and CSA approvals
• Can be used on marine‑rated switchboards due to DNV and GL listings
• Appropriate for hazardous‑weather outdoor cabinets needing NEMA 4X performance

What mounting aperture is required for panel installation?

The device fits an opening with a 22.5 mm cut‑out and a 22.5 mm opening diameter.

How is the operator marked and what is its appearance?

The actuator is red, mushroom‑shaped with a flat front and an inscribed O marking.

What materials compose the bezel and cap?

The bezel is titanium‑coloured plastic and the cap is plastic.

What approval listings support industrial compliance?

It carries listings including UL File No. E29184, CSA files and various class and national approvals.

How does the device perform under mechanical shock?

It withstands sinusoidal mechanical shock to IEC/EN 60068‑2‑27 at 30 g, 11 ms.
