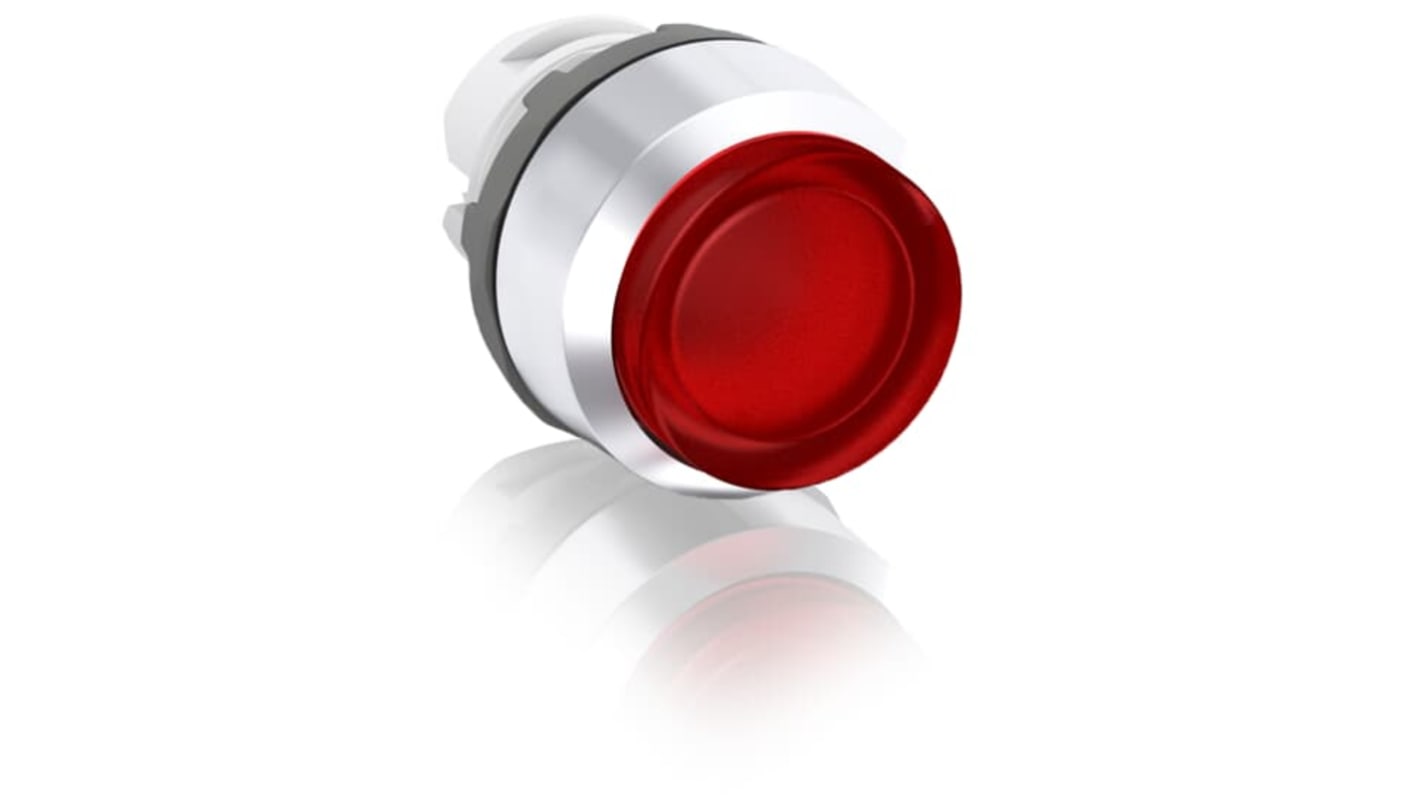

ABB MP3 Series Red Momentary Push Button Head, 22.5 mm Cutout, IP66

RS 제품 번호:: 237-4969
제조사 부품 번호:: 1SFA611102R3101
제조업체:: ABB

ABB MP3 Series Red Momentary Push Button Head, 22.5 mm Cutout, IP66

모든 Push Button Heads 열람하기

Subtotal (1 unit)*

₩17,019.60

재고있음

추가로 2026년 6월 22일 부터 4 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩17,019.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 237-4969
제조사 부품 번호:: 1SFA611102R3101
제조업체:: ABB

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Series	MP3
	Product Type	Push Button Head
	Cutout Diameter	22.5mm
	Push Button Colour	Red
	Push Button Shape	Round
	Push Button Actuation	Momentary
	Push Button Style	Round
	Push Button Material	Chrome Plated Metal
	IP Rating	IP66
	Push Button Marking	Unmarked
	Body/Fixing Collar Included	No
	Standards/Approvals	CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
	Hazardous Area Certification	No

	모두 선택
	브랜드 ABB
	Series MP3
	Product Type Push Button Head
	Cutout Diameter 22.5mm
	Push Button Colour Red
	Push Button Shape Round
	Push Button Actuation Momentary
	Push Button Style Round
	Push Button Material Chrome Plated Metal
	IP Rating IP66
	Push Button Marking Unmarked
	Body/Fixing Collar Included No
	Standards/Approvals CSA C22.2 No 14, DIN 40050-9, EN 50013, IEC60947-5-5, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
	Hazardous Area Certification No

Datasheet - 1SFA611102R3101

COO (Country of Origin):: SE

ABB MP3 Series Push Button Head, 22.5mm Cutout Diameter, Red - 1SFA611102R3101

This push button head is a round, red momentary actuator designed for control Interfaces in industrial environments. It provides a user-operated signalling Interface mounted in a 22.5mm panel cut-out and delivers tactile, short-duration switching action for machine and process control assemblies. The component is built with a chrome metal appearance and intended for integration into panels where ingress protection and recognised electrical standards are required.

Features and Benefits:

• IP66 rating provides protection against dust and powerful water jets • Chrome metal construction offers Durable external wear resistance • Unmarked red cap ensures clear Visual signalling without labels • Momentary actuation enables temporary contact for control inputs • Conforms to multiple international standards for system interoperability

Applications

• Suitable for control panels requiring a 22.5mm operator Interface • Ideal for industrial machinery operator stations needing momentary input • Used with modular operator units in automated production lines • Can be used for emergency stop indication circuits as a Visual element

What mounting aperture is required for installation?

A 22.5mm circular cut-out is needed to accommodate the head in a panel.

How does the unit perform in wet or dusty environments?

Its IP66 classification means it resists dust ingress and strong water jets.

Which material is the actuator formed from for mechanical wear?

The visible actuator is MADE from chrome metal, providing a robust exterior finish.

Which standards support its use in international equipment?

It meets a range of approvals including IEC and UL-style standards, and DIN 40050-9 for environmental protection.
