Siemens SIRIUS ACT 3SU10 Series Green Momentary Push Button, 22mm Cutout, IP66, IP67, IP69K

모든 Push Button Heads 열람하기

Subtotal (1 unit)*

₩38,464.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 29일 부터 23 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩38,464.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:
173-6728
제조사 부품 번호:
3SU1050-1BD40-0AA0
제조업체:
Siemens
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Siemens

Series

SIRIUS ACT 3SU10

Cutout Diameter

22mm

Push Button Colour

Green

Push Button Shape

mushroom

Push Button Actuation

Momentary

Push Button Style

Mushroom

Push Button Material

Plastic

IP Rating

IP66, IP67, IP69K

Push Button Diameter

40mm

Body/Fixing Collar Included

No

Better World Claim

Extended product life, Low carbon manufacture

Illuminated

No

Better World Product

Yes

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

COO (Country of Origin):
CN

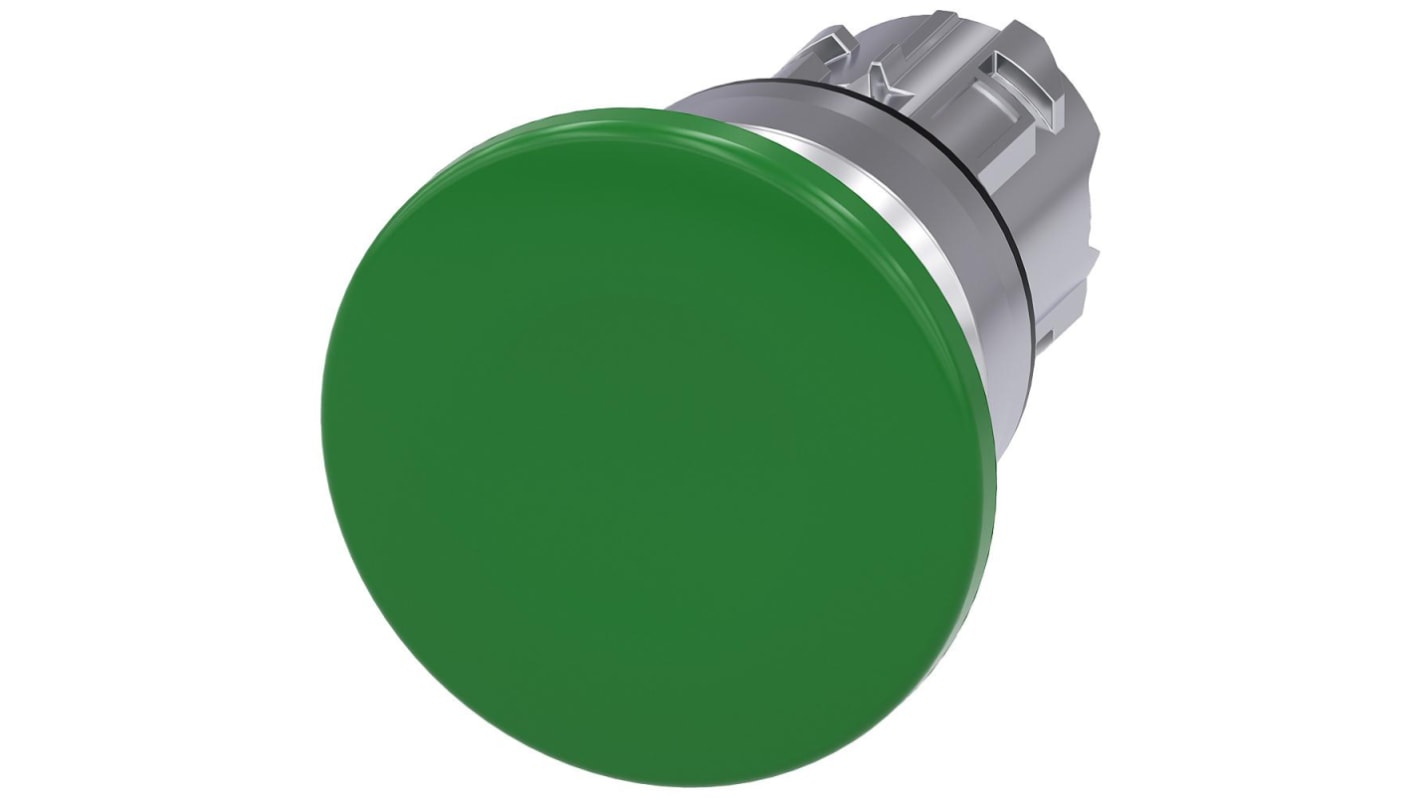

Siemens Push Button, IP66/IP67/IP69K, 40mm Push Button Diameter - 3SU1050-1BD40-0AA0


This green mushroom push button is crafted for dependable control in a variety of automation applications. With a cutout diameter of 22mm and a robust outer diameter of 40mm, it features momentary contact operation. Made from durable plastic, it boasts an IP66, IP67, and IP69K rating, ensuring excellent protection against harsh environments, making it suitable for industrial use.

Features & Benefits


• Solid plastic construction offers lasting durability
• IP66 rating provides strong resistance to dust and moisture
• Operating temperature range from -25 to +70°C
• Momentary contact design allows for quick actuation
• High gloss metal front ring enhances aesthetics

Applications


• Machine control in industrial settings
• Environments with high moisture levels
• Assembly lines for efficient operations
• Equipment requiring reliable signal indication

Can it withstand high temperatures?


Yes, it operates effectively from -25°C to +70°C.

Will it function in wet conditions?


Yes, it is rated IP66, ensuring water resistance.

Can it handle extensive use?


Yes, it has a mechanical service life of up to 10,000,000 operations.

Does it require a light source?


No, this variant does not include an optional light source.
