Siemens SIRIUS ACT 3SU15 Series Contact Block, 5 → 500V ac/dc, 1NO
- RS 제품 번호:
- 874-2282
- 제조사 부품 번호:
- 3SU1550-1AA10-1BA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩34,385.20
재고있음
- 47 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩34,385.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 874-2282
- 제조사 부품 번호:
- 3SU1550-1AA10-1BA0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Block Type | Contact Block | |
| Voltage Rating | 5 → 500V ac/dc | |
| Series | SIRIUS ACT 3SU15 | |
| Contact Configuration | 1NO | |
| LED Included | No | |
| Terminal Type | Screw | |
| Body/Fixing Collar Included | Yes | |
| Current Rating | 6A | |
| Better World Product | Yes | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Block Type Contact Block | ||
Voltage Rating 5 → 500V ac/dc | ||
Series SIRIUS ACT 3SU15 | ||
Contact Configuration 1NO | ||
LED Included No | ||
Terminal Type Screw | ||
Body/Fixing Collar Included Yes | ||
Current Rating 6A | ||
Better World Product Yes | ||
Better World Claim Extended product life, Low carbon manufacture | ||
- COO (Country of Origin):
- DE

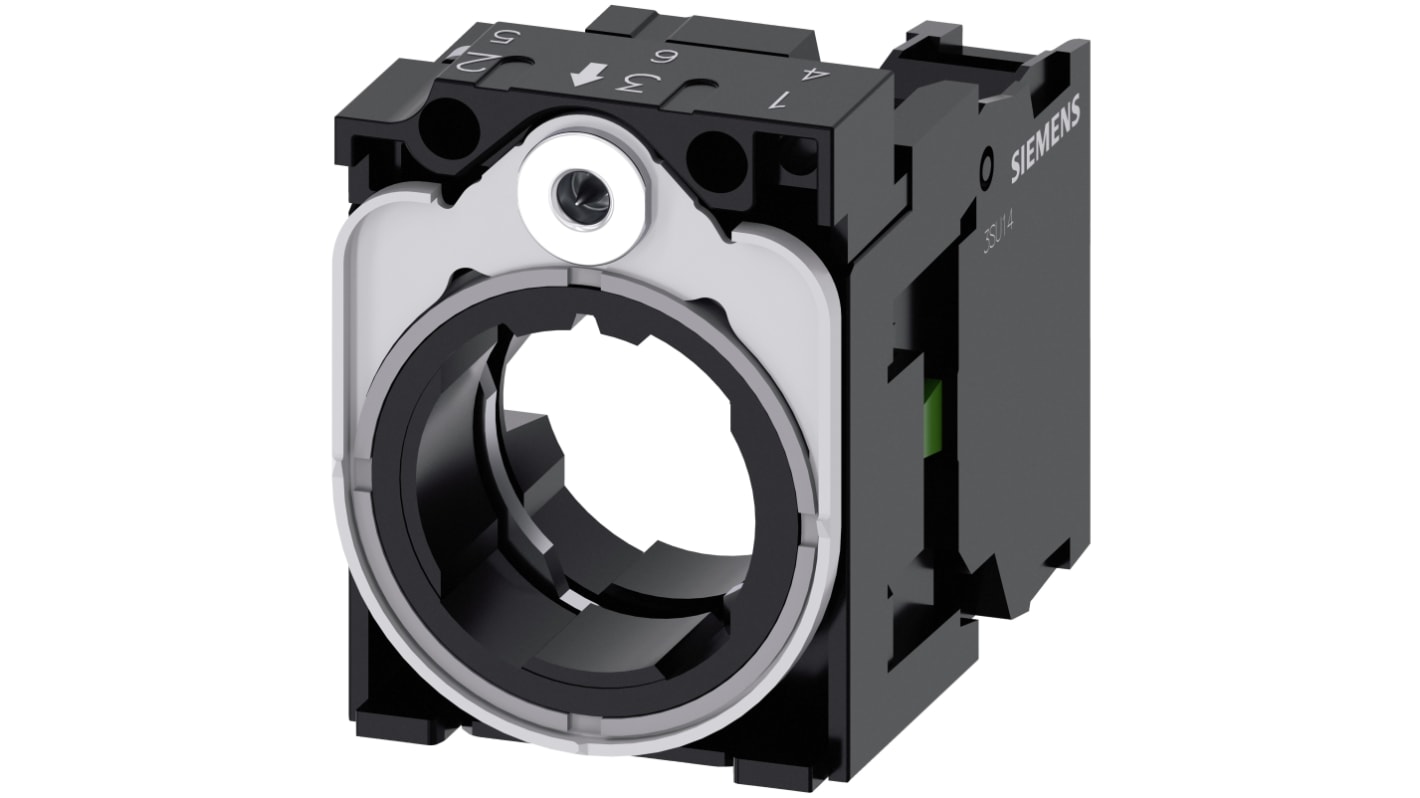

Siemens Contact Block and Holder, Screw Terminal Connection, Front Plate Mounting - SIRIUS ACT Series - 3SU1550-1AA10-1BA0
Keep the current flowing in your electrical system with this contact block and holder from Siemens. When wired up to a switching element, it allows electricity to pass through it and complete the circuit in the on position. A wide operating temperature range between -25°C and +70°C makes it the ideal choice for heavy-duty industrial settings. You’ll find a unit like this commonly used with lighting networks and reset switches.
Features & Benefits
• Space-saving size of 40 (H) x 30 (W) x 49.8mm (D) lets you squeeze it into tight work areas
• Voltage-tested up to 6kV for protection from electrical surges
• Terminal has an IP20 rating, so it's touch-proof and protected against objects larger than 12mm, like tools and wires
• Voltage-tested up to 6kV for protection from electrical surges
• Terminal has an IP20 rating, so it's touch-proof and protected against objects larger than 12mm, like tools and wires
How reliable is this product?
The contacts in this unit have a high reliability rating of just one maloperation per 100 million when operated at 17V and 5mA, so it's a dependable choice.
What's this unit's supply voltage range?
This device has a broad operating voltage range between 5 and 500V for compatibility with common electrical sources.
