Eaton M22 Series Light Block, 12 → 30V ac/dc
- RS 제품 번호:
- 399-3646
- Distrelec 제품 번호:
- 304-10-376
- 제조사 부품 번호:
- 216558 M22-LED-R
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩20,022.00
재고있음
- 8 개 단위 배송 준비 완료
- 추가로 다른 지역에서 225 개 단위 배송 준비 완료
- 추가로 2025년 12월 16일 부터 80 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩20,022.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 399-3646
- Distrelec 제품 번호:
- 304-10-376
- 제조사 부품 번호:
- 216558 M22-LED-R
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Block Type | Light Block | |
| Voltage Rating | 12 → 30V ac/dc | |
| Series | M22 | |
| Illumination Type | LED | |
| LED Included | Yes | |
| Terminal Type | Screw | |
| Body/Fixing Collar Included | No | |
| Current Rating | 15mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Block Type Light Block | ||
Voltage Rating 12 → 30V ac/dc | ||
Series M22 | ||
Illumination Type LED | ||
LED Included Yes | ||
Terminal Type Screw | ||
Body/Fixing Collar Included No | ||
Current Rating 15mA | ||
- COO (Country of Origin):
- DE

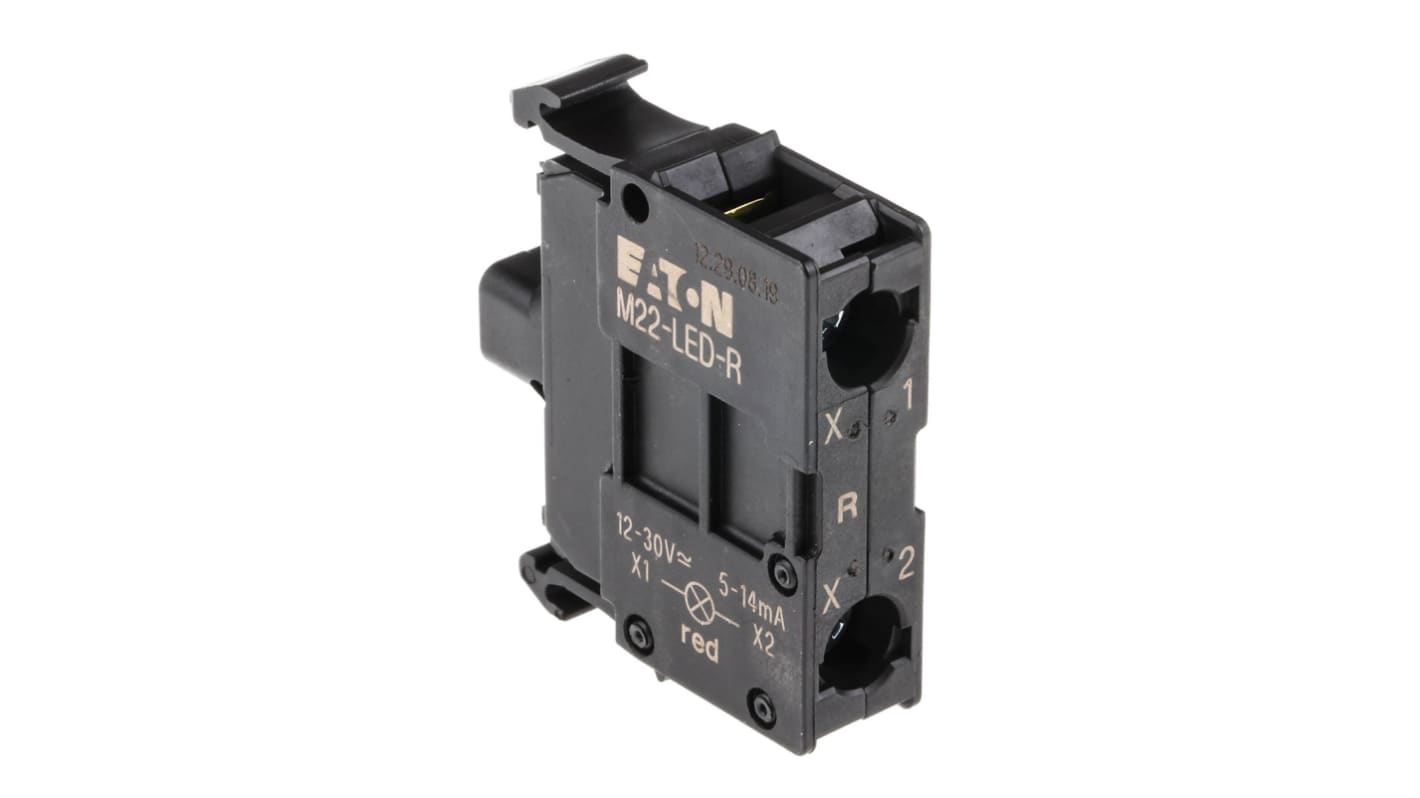

Eaton Light Block, Red LED, 6000V AC Impulse Withstand Voltage - M22 Series - 216558 M22-LED-R
Want to know if a push button in your panel is on or off? This red light block from Eaton lets you know at a glance. Working hand in hand with your contact block, the built-in LED in the unit comes on when you push the button, so you won't be left in the dark about its status. Thanks to a broad operating voltage range of -25°C to +70°C, this is a reliable option for harsh settings. Its front-fixing and front-fastening design means that you can easily give it centre stage on your panel.
Features & Benefits
• Lifespan of 100,000 hours at -25°C for durable performance
• Minimal power consumption of 0.26W for energy-efficient operation
• Impulse withstand voltage of 6000V AC to minimise damage caused by current surges
• Minimal power consumption of 0.26W for energy-efficient operation
• Impulse withstand voltage of 6000V AC to minimise damage caused by current surges
Where should I use a red-coloured light block?
As the colour red in industrial settings typically indicates an emergency situation, you can use this light block with controlled stop or emergency stop push buttons in your panel.
What protective feature does this light block have?
This light block is resistant to mechanical shock of up to 30g, so it can withstand harsh conditions.
Note
Eaton formerly known as Moeller
