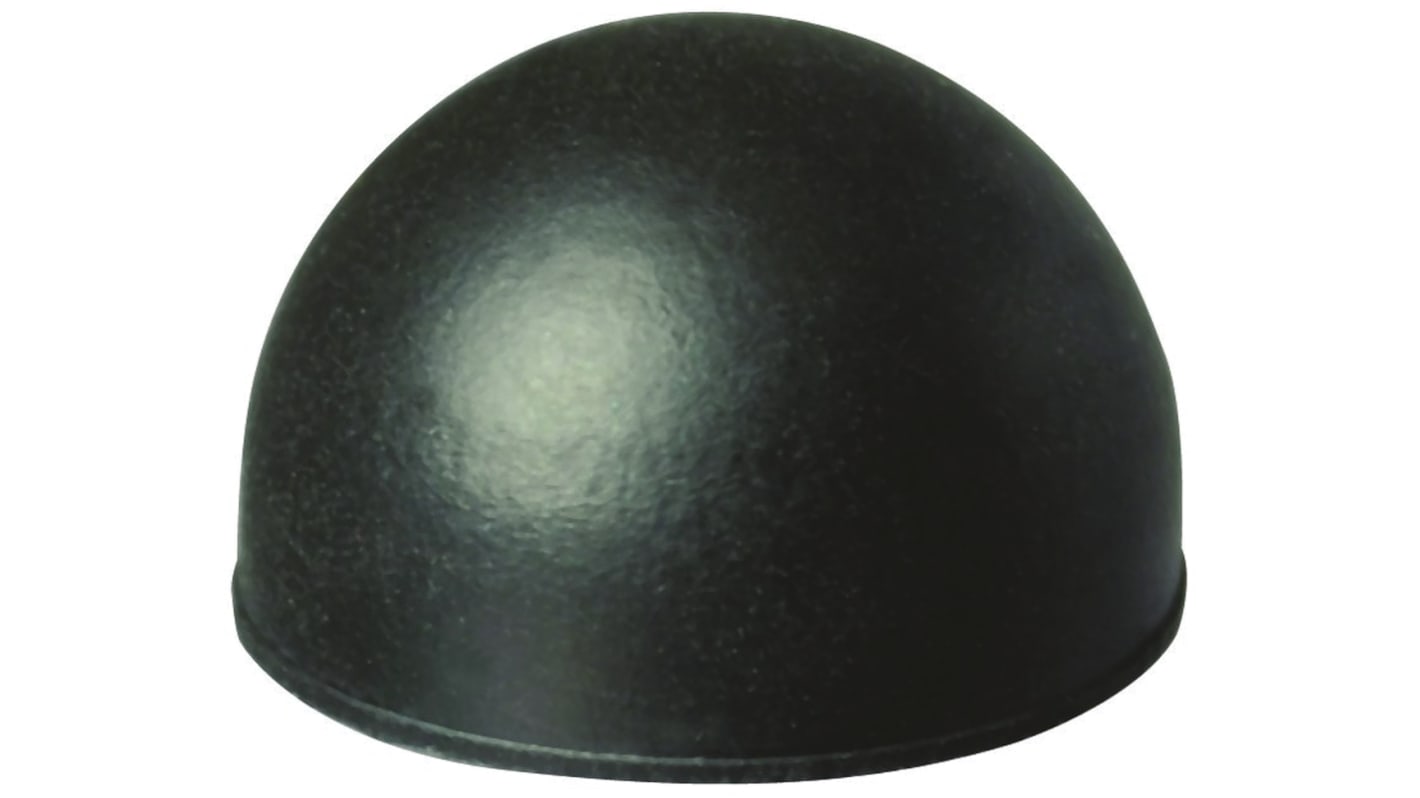

Otto Push Button Boot for Use with Sealed Dome Push Button Switch

모든 Push Button Caps 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩13,554.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 15일 부터 49 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩13,554.80
10 - 24₩13,141.20
25 - 99₩12,746.40
100 +₩12,464.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
811-7951
제조사 부품 번호:
402246
제조업체:
Otto
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Otto

Accessory Type

Raised Neoprene Black Boot

For Use With

Sealed Dome Push Button Switch

COO (Country of Origin):
US

Otto P9 Series - Black Body Push Button Switch


Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

Black bezel and body with a choice of flush and raised dome button cap styles
Choice of button cap colours
Sealed to IP64
Withstands extreme shock & vibration
Positive tactile feedback
15/32-32 threaded body
Moistureproof and dust tight to IP64

Note

For white body versions see stock number 737-3787 typically.
For panel sealing use gasket stock number 737-3863.

Approvals

UL; CSA
