Murata Power Solutions Through Hole Pulse Transformer 1CT:1CT Turns Ratio
- RS Stock No.:
- 106-8800
- Mfr. Part No.:
- 78615/1C
- Brand:
- Murata Power Solutions

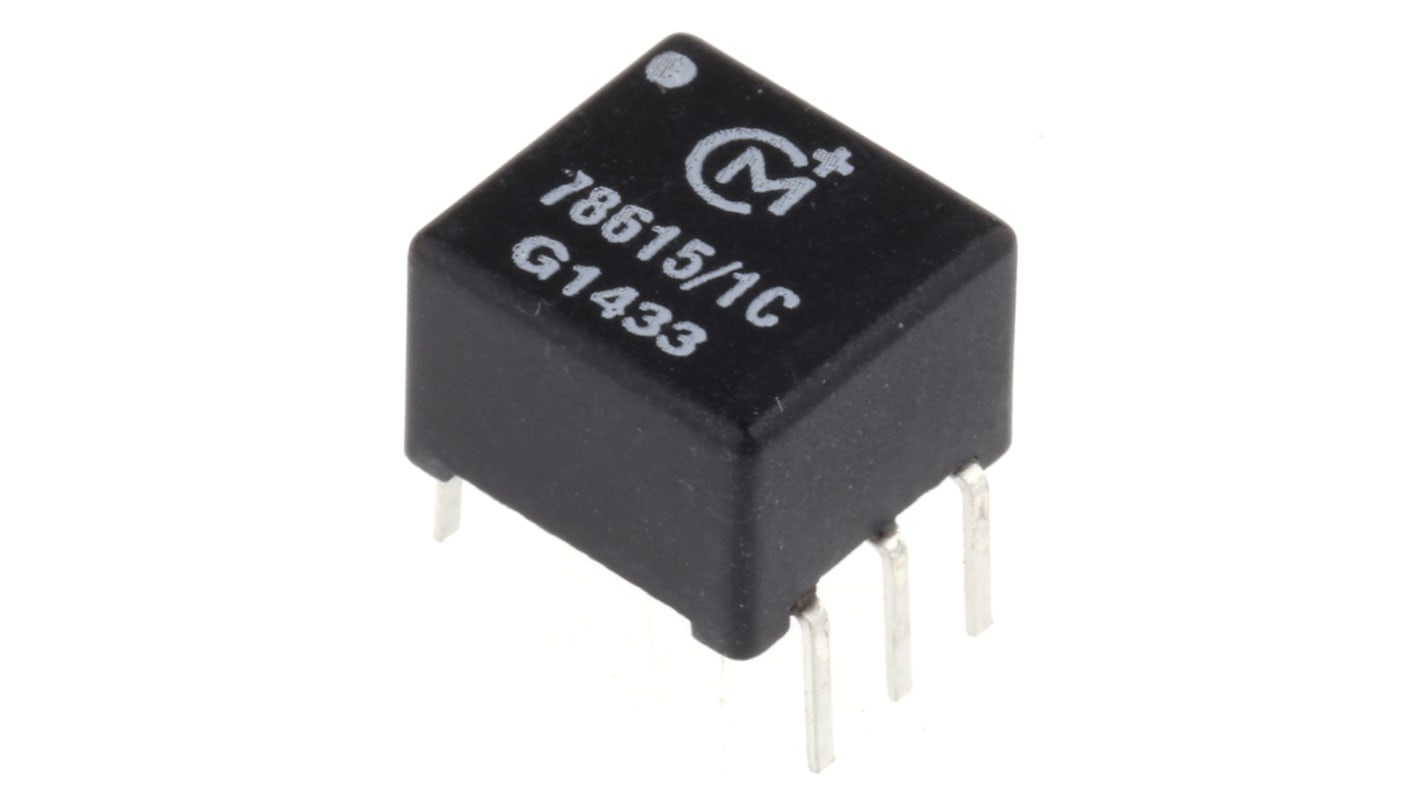

Image representative of range
Bulk discount available
Subtotal (1 tube of 50 units)*
₩119,004.00
재고있음
- 추가로 2025년 12월 15일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | ₩2,380.08 | ₩119,022.80 |
| 100 - 150 | ₩2,321.80 | ₩116,052.40 |
| 200 + | ₩2,284.20 | ₩114,247.60 |
*price indicative
- RS Stock No.:
- 106-8800
- Mfr. Part No.:
- 78615/1C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | Murata Power Solutions | |
| Turns Ratio | 1CT:1CT | |
| Mounting Type | Through Hole | |
| Leakage Inductance | 16µH | |
| Dimensions | 9.52 x 9 x 6.35mm | |
| Length | 9.52mm | |
| Termination Type | Pin | |
| Isolation Voltage | 1kV | |
| Maximum Temperature | 70°C | |
| Minimum Temperature | 0°C | |
| Select all | ||
|---|---|---|
브랜드 Murata Power Solutions | ||
Turns Ratio 1CT:1CT | ||
Mounting Type Through Hole | ||
Leakage Inductance 16µH | ||
Dimensions 9.52 x 9 x 6.35mm | ||
Length 9.52mm | ||
Termination Type Pin | ||
Isolation Voltage 1kV | ||
Maximum Temperature 70°C | ||
Minimum Temperature 0°C | ||
- COO (Country of Origin):
- CN
Pulse Transformer 786 Series
General purpose pulse transformers used in coupling, thyristor/triac firing and small sized switch mode power supply applications
The standard turns ratios may be modified by connecting any two windings in series
Can also be used as a common mode choke in filtering applications
The standard turns ratios may be modified by connecting any two windings in series
Can also be used as a common mode choke in filtering applications
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
