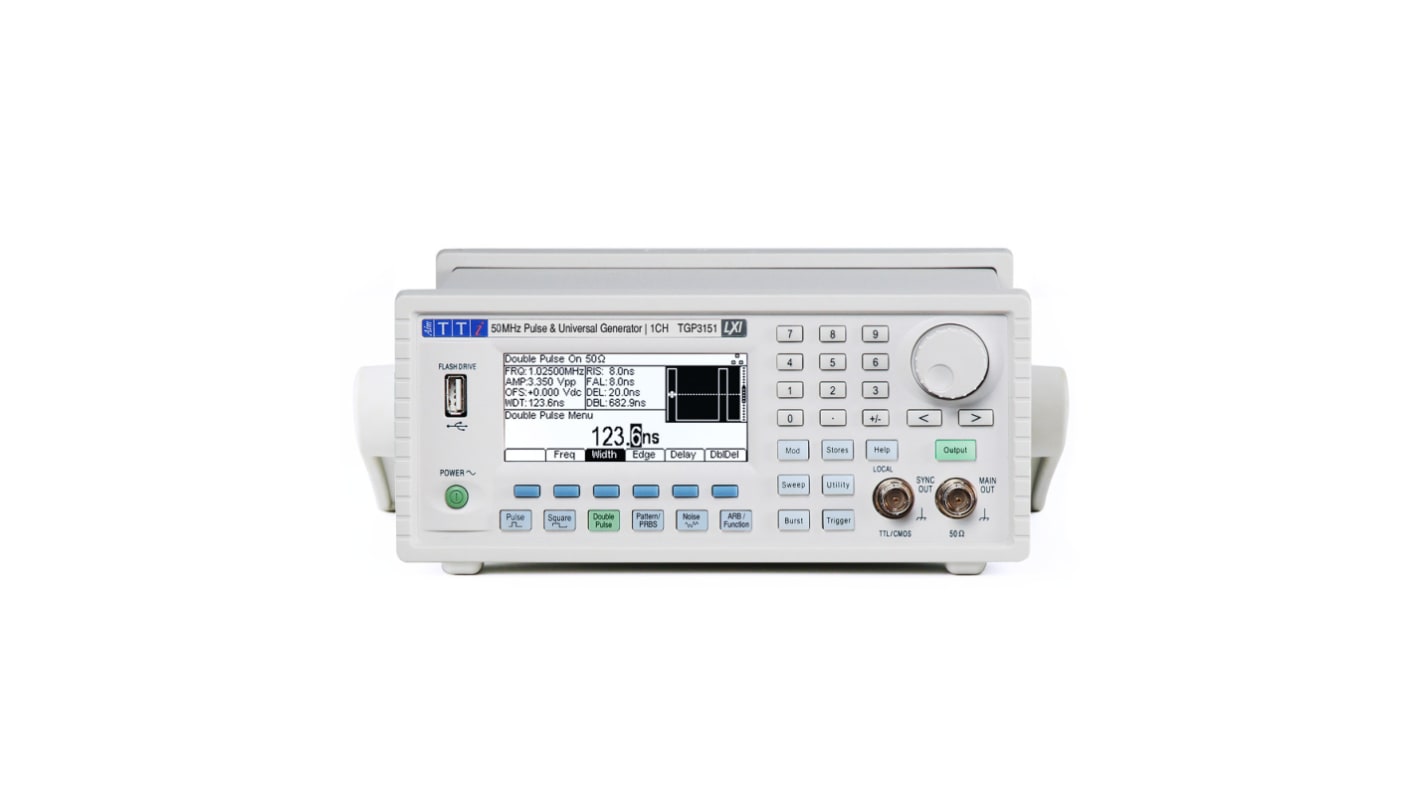

Aim-TTi TGP3151 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max

RS 제품 번호:: 112-0943
제조사 부품 번호:: TGP3151
제조업체:: Aim-TTi

Aim-TTi TGP3151 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max

Subtotal (1 unit)*

₩2,936,917.20

재고있음

추가로 2025년 12월 22일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩2,936,917.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 112-0943
제조사 부품 번호:: TGP3151
제조업체:: Aim-TTi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Aim-TTi
	Maximum Frequency	25 (Double Pulse) MHz, 50 (Pulse) MHz
	Minimum Frequency	1 mHz
	Maximum Pulse Width	499.99999999 (Double Pulse) s, 999.99999999 (Pulse) s
	Modes	Burst, Double Pulse, Function/Arbitrary, Modulation, Noise, Pattern/PBRS, Pulse, Square, Sweep, Triggered
	Minimum Pulse Width	10ns
	Maximum Pulse Delay	999.99999996 (Double Pulse) s, 999.99999998 (Pulse) s
	Minimum Pulse Delay	0ns
	Adjustable Output Amplitude	Yes
	Jitter	<30%
	Rise - Fall Time	5 ns → 399.999999989 s (Double Pulse), 5 ns → 799.999999989 s (Pulse)
	Input Impedance	10 kΩ
	Connector Type	USB
	Interface Type	GPIB, LAN, LXI, Remote, USB 2.0, USB Flash Drive
	Dimensions	269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top Mount) mm
	Maximum Operating Temperature	+40°C
	Width	213.5 (Rack Mount) mm, 250 (Bench Top Mount) mm
	Length	269 (Rack Mount) mm, 295 (Bench Top Mount) mm
	Weight	3.2kg
	Height	86.5 (Rack Mount) mm, 97 (Bench Top Mount) mm
	Minimum Operating Temperature	+5°C
	Model Number p	TGP3151

	모두 선택
	브랜드 Aim-TTi
	Maximum Frequency 25 (Double Pulse) MHz, 50 (Pulse) MHz
	Minimum Frequency 1 mHz
	Maximum Pulse Width 499.99999999 (Double Pulse) s, 999.99999999 (Pulse) s
	Modes Burst, Double Pulse, Function/Arbitrary, Modulation, Noise, Pattern/PBRS, Pulse, Square, Sweep, Triggered
	Minimum Pulse Width 10ns
	Maximum Pulse Delay 999.99999996 (Double Pulse) s, 999.99999998 (Pulse) s
	Minimum Pulse Delay 0ns
	Adjustable Output Amplitude Yes
	Jitter <30%
	Rise - Fall Time 5 ns → 399.999999989 s (Double Pulse), 5 ns → 799.999999989 s (Pulse)
	Input Impedance 10 kΩ
	Connector Type USB
	Interface Type GPIB, LAN, LXI, Remote, USB 2.0, USB Flash Drive
	Dimensions 269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top Mount) mm
	Maximum Operating Temperature +40°C
	Width 213.5 (Rack Mount) mm, 250 (Bench Top Mount) mm
	Length 269 (Rack Mount) mm, 295 (Bench Top Mount) mm
	Weight 3.2kg
	Height 86.5 (Rack Mount) mm, 97 (Bench Top Mount) mm
	Minimum Operating Temperature +5°C
	Model Number p TGP3151

COO (Country of Origin):: GB

Aim-TTi Pulse Generator, 10 kO Input Impedance, 1 Channel - 59120-5340

This pulse generator by Aim-TTi is a versatile and advanced piece of equipment designed for applications in areas such as automation, electronics, electrical, and mechanical industries. With adjustable output amplitude and high frequencies, it offers precise and reliable performance for various applications.

Features & Benefits

• Adjustable output amplitude for precise control
• High frequency capability for applications requiring fast pulses
• Pulse width modulation for flexible waveform generation
• Triggered burst mode for specific pulse sequencing
• Compact design for both benchtop and rack mount applications

Applications

• Used for stress testing designs requiring defined jitter and delay
• Ideal for clock frequency simulation with glitch-free parameter changes
• Suitable for creating data sequencing patterns for serial data testing
• Efficient for asynchronous pulse signal conditioning
• Helps in Op Amp slew rate and asymmetrical characterisation

Can it be used for clock frequency simulation applications?

Yes, it is ideal for simulating clock frequencies with glitch-free changes in pulse parameters.

Will it assist in stress testing designs?

Yes, it is designed for stress testing designs with defined jitter and delay requirements.

Is it suitable for data sequencing patterns?

Yes, it can efficiently generate data sequencing patterns for serial data testing applications.

Can it be used for signal conditioning?

Yes, it is suitable for asynchronous pulse signal conditioning purposes.

Is it helpful in Op Amp slew rate measurements?

Yes, it facilitates Op Amp slew rate and asymmetrical characterisation tasks.
