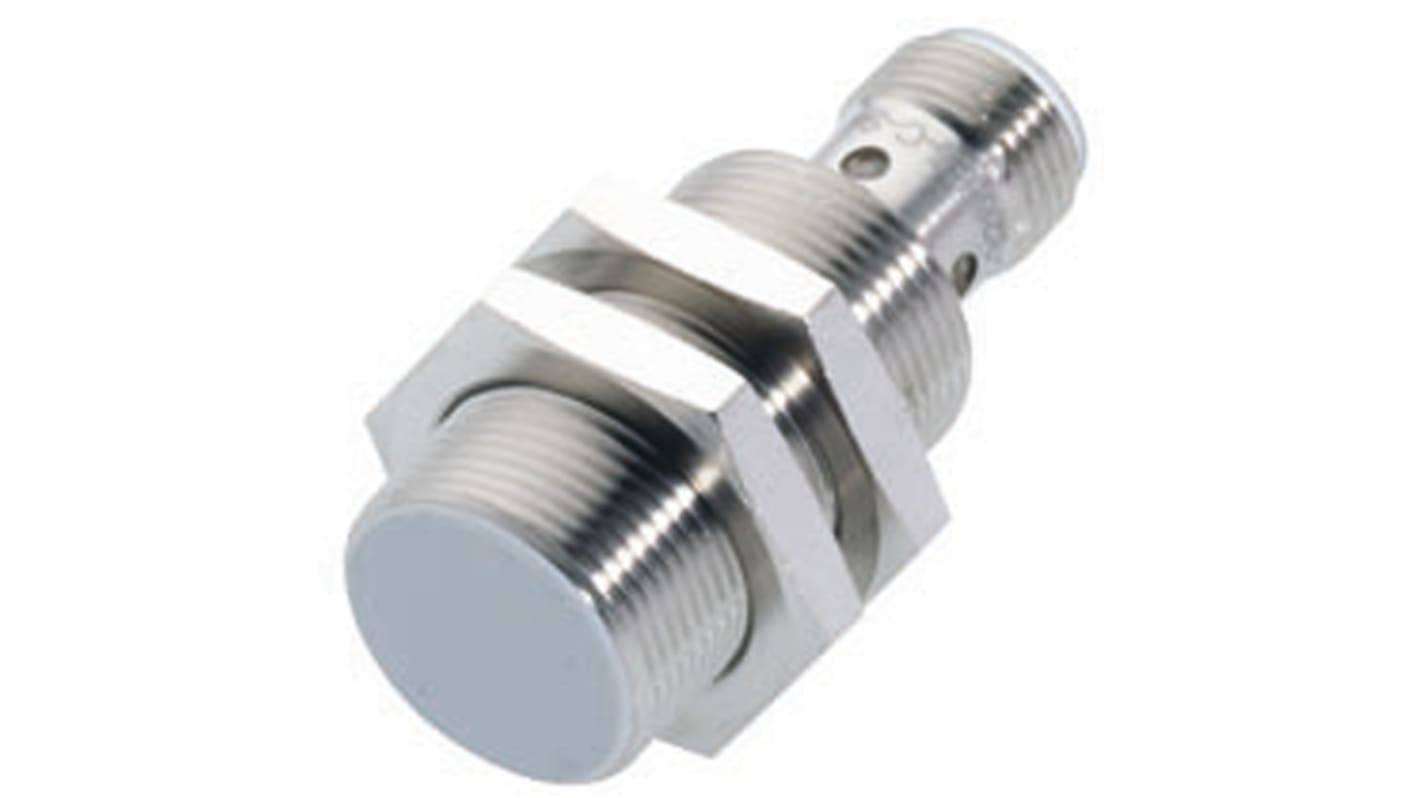

BALLUFF BES M18ME-PSC80B-S04G-003 Threaded Barrel Inductive Proximity Sensor, M18 PNP 3V 8 mm 30 V dc 130mA
- RS 제품 번호:
- 814-1011
- 제조사 부품 번호:
- BES M18ME-PSC80B-S04G-003
- 제조업체:
- BALLUFF
Subtotal (1 unit)*
₩105,000.00
재고있음
- 7 개 단위 배송 준비 완료
- 추가로 2026년 11월 03일 부터 13 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩105,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 814-1011
- 제조사 부품 번호:
- BES M18ME-PSC80B-S04G-003
- 제조업체:
- BALLUFF
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | BALLUFF | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M18 | |
| Body Style | Threaded Barrel | |
| Length | 44.5mm | |
| IP Rating | IP67 | |
| Terminal Type | Connector | |
| Mount Type | Flush | |
| Housing Material | Copper Zinc Alloy | |
| Maximum Supply Voltage | 3V | |
| Width | 18mm | |
| Maximum DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Detection | 8mm | |
| Materials Detected | Inductive | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60947-5-2 | |
| Shielding | Shielded | |
| Maximum Switching Frequency | 150Hz | |
| Switching Current | 130mA | |
| Output Type | PNP | |
| 모두 선택 | ||
|---|---|---|
브랜드 BALLUFF | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M18 | ||
Body Style Threaded Barrel | ||
Length 44.5mm | ||
IP Rating IP67 | ||
Terminal Type Connector | ||
Mount Type Flush | ||
Housing Material Copper Zinc Alloy | ||
Maximum Supply Voltage 3V | ||
Width 18mm | ||
Maximum DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Detection 8mm | ||
Materials Detected Inductive | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60947-5-2 | ||
Shielding Shielded | ||
Maximum Switching Frequency 150Hz | ||
Switching Current 130mA | ||
Output Type PNP | ||
- COO (Country of Origin):
- HU
BES 3 / 4Wire M18 Inductive Proximity Sensor
This range of M18 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide vareity of metal detection applications with in industrial environments.
Pre cabled or connector
Flush shielded or non-flush unshielded
3 wire DC configuration
