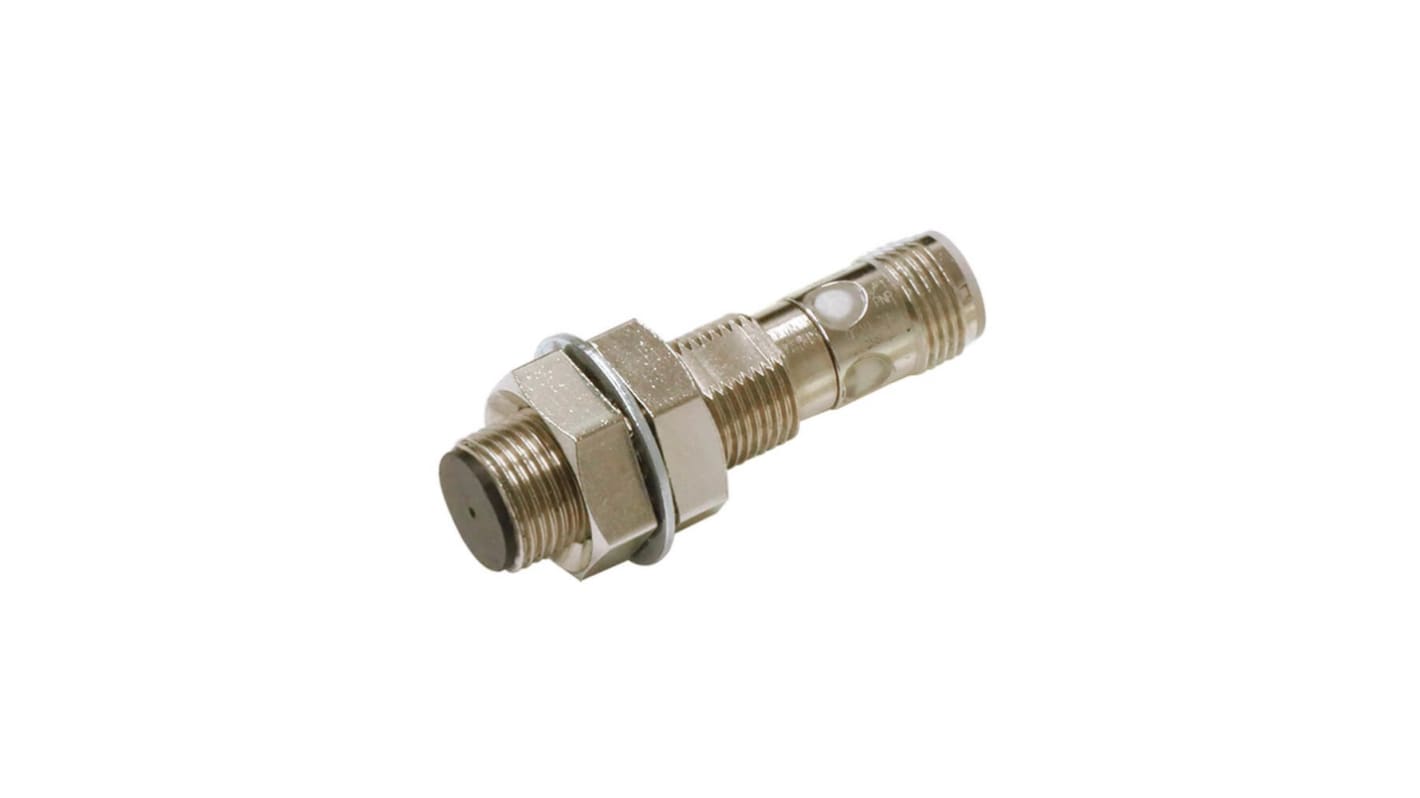

Omron Inductive Threaded Barrel Proximity Sensor, M12, 9 mm Detection, PNP NO, 10 → 30 V dc

RS 제품 번호:: 188-9119
Distrelec 제품 번호:: 302-29-716
제조사 부품 번호:: E2E-X9B1T12-M1
제조업체:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M12, 9 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

₩159,649.60

재고있음

10 개 단위 배송 준비 완료
추가로 2026년 2월 03일 부터 20 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩159,649.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 188-9119
Distrelec 제품 번호:: 302-29-716
제조사 부품 번호:: E2E-X9B1T12-M1
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Thread Size	M12
	Sensor Technology	Inductive
	Detection Range	9 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	PNP
	Output Function	NO
	Connection Type	M12
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67, IP67G, IP69K
	Length	47.1mm
	Mounting Type	Quasi-Flush
	Width	12mm
	Housing Material	Brass
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Switching Current	16 mA
	Maximum Switching Frequency	700Hz
	Shielding	Shielded
	Maximum Operating Temperature	+70°C
	Communication Protocol	IO-LINK
	Depth	17mm
	Short Circuit Overload Protection	Yes
	Series	E2E-NEXT
	Standards Met	CE
	Switching Frequency	700 Hz
	Reverse Polarity Protection	Yes

	모두 선택
	브랜드 Omron
	Thread Size M12
	Sensor Technology Inductive
	Detection Range 9 mm
	Body Style Threaded Barrel
	Digital Switching Output Type PNP
	Output Function NO
	Connection Type M12
	Supply Voltage 10 → 30 V dc
	IP Rating IP67, IP67G, IP69K
	Length 47.1mm
	Mounting Type Quasi-Flush
	Width 12mm
	Housing Material Brass
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Switching Current 16 mA
	Maximum Switching Frequency 700Hz
	Shielding Shielded
	Maximum Operating Temperature +70°C
	Communication Protocol IO-LINK
	Depth 17mm
	Short Circuit Overload Protection Yes
	Series E2E-NEXT
	Standards Met CE
	Switching Frequency 700 Hz
	Reverse Polarity Protection Yes

COO (Country of Origin):: CN

Omron E2E-NEXT Series Proximity Sensor, NO Output Function, IP67/IP67G/IP69K - E2E-X9B1T12-M1

This inductive proximity sensor is designed for precise detection in various industrial automation applications. With a robust design, it operates efficiently within a 9mm range, making it suitable for electrical and mechanical engineering contexts.

Features & Benefits

• Shielded design minimises interference
• Quasi-flush mounting reduces protrusion, ideal for space-limited settings
• PNP output type offers compatibility with a variety of control systems
• IO-Link capability enables smooth integration and data transfer
• Brass housing ensures durability and corrosion resistance
• Broad voltage supply range accommodates diverse system needs

Applications

• Utilised with industrial equipment for precise proximity detection
• Suitable for positioning tasks in automated assembly lines
• Ideal for sensors connected to IO-Link networks
• Effective in environments demanding high IP ratings

What type of environments can this sensor operate in?

It operates effectively in harsh environments with temperatures from -25°C to +70°C.

How does this sensor connect to existing systems?

It uses an M12 connector for easy integration into current setups.

What measures are in place against wiring errors?

It includes reverse polarity protection and short circuit overload protection for enhanced safety.
