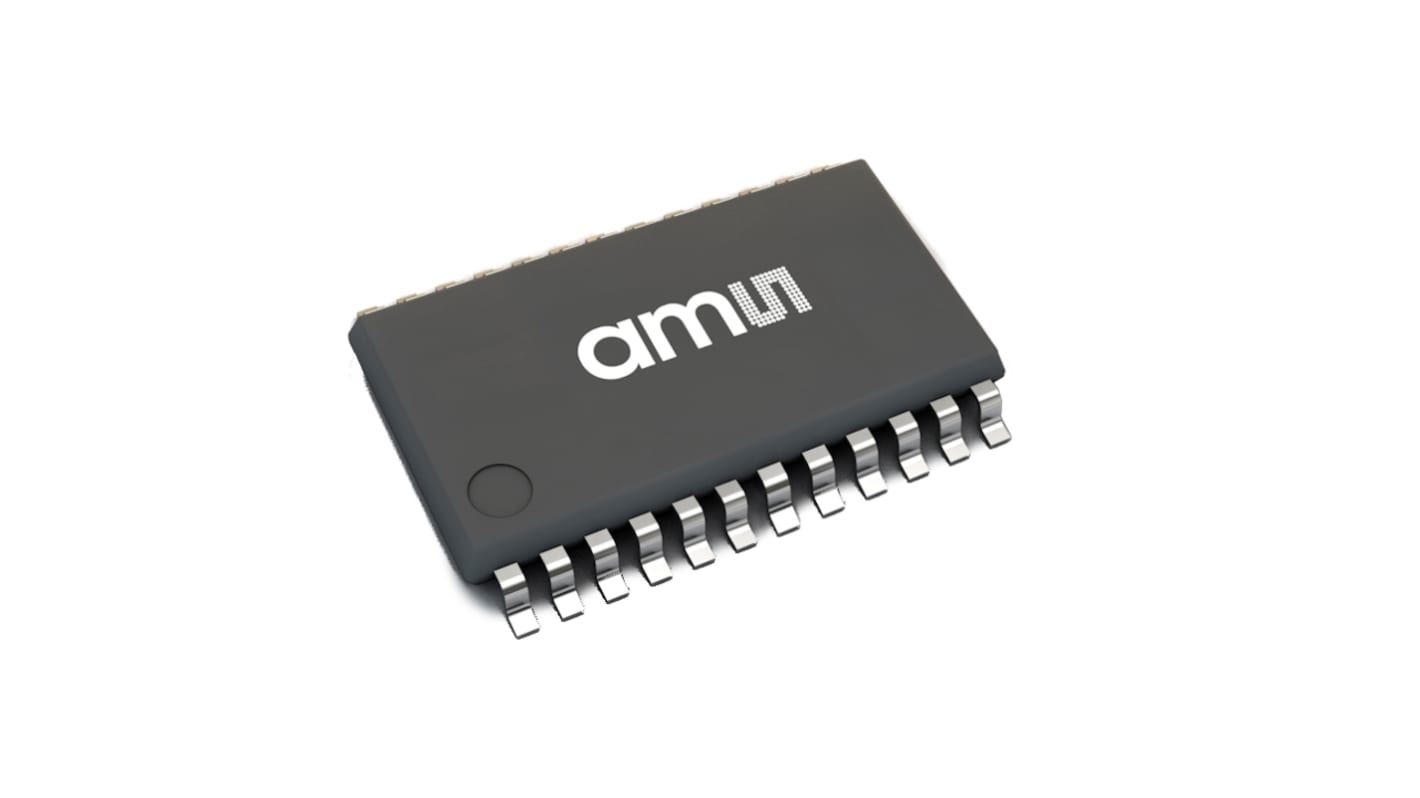

ams OSRAM AS8579 Capacitive Proximity Detector -0.3 V 7V 24 SSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Proximity Sensor ICs 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩13,720.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 470 개 unit(s)이 배송 준비 됨

수량
한팩당
1 - 24₩13,720.00
25 - 49₩13,480.00
50 - 99₩13,260.00
100 - 249₩13,000.00
250 +₩12,760.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
232-9709
제조사 부품 번호:
AS8579-ASSM
제조업체:
ams OSRAM
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ams OSRAM

Product Type

Capacitive Proximity Detector

Maximum Switching Frequency

125kHz

Maximum Output Current

4mA

Maximum Output Voltage

5V

Output Type

Digital

Mount Type

Surface

Package Type

SSOP

Pin Count

24

Width

5.6mm

Length

8.5mm

Height

1.99mm

Series

AS8579

Minimum Supply Voltage

-0.3V

Maximum Supply Voltage

7V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Automotive Standard

AEC-Q100

COO (Country of Origin):
AT
The ams AS8579 series is a capacitive sensor that detects the change of capacity in different applications. The capacitive sensor measures the impedance that originates between a conducting surface and a human being. The IC captures the current of a metal object and applies algorithms to determine the capacitive and resistive information. The outcome information can be read through a SPI Interface that can be also used for IC configuration. This high precision performance sensor also supports a multitude of diagnostic features that meet standard functional safety requirements.

I/Q-Signal demodulation

Up to 10 independent measurement lines possible (10 SEN lines)

VAR&FIX_SEN function to avoid parasitic influences from cable and PCB

Designed according functional safety standard

Accurate capacitive measurement (separation of resis
