STMicroelectronics VL53L1 Proximity Sensor IC 4 m 2.6 V 3.5V 12 LGA
- RS 제품 번호:
- 204-9879
- 제조사 부품 번호:
- VL53L1CBV0FY/1
- 제조업체:
- STMicroelectronics
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 reel of 3600 units)*
₩32,479,200.00
일시적 품절
- 2027년 2월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 3600 - 14400 | ₩9,022.00 | ₩32,478,480.00 |
| 18000 + | ₩8,752.00 | ₩31,508,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 204-9879
- 제조사 부품 번호:
- VL53L1CBV0FY/1
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Proximity Sensor IC | |
| Maximum Switching Frequency | 400kHz | |
| Maximum Output Voltage | 0.4V | |
| Sensing Distance | 4m | |
| Output Type | Digital | |
| Mount Type | Surface | |
| Package Type | LGA | |
| Pin Count | 12 | |
| Width | 2.5mm | |
| Length | 4.9mm | |
| Height | 1.56mm | |
| Minimum Supply Voltage | 2.6V | |
| Automotive Standard | No | |
| Maximum Supply Voltage | 3.5V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Series | VL53L1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Proximity Sensor IC | ||
Maximum Switching Frequency 400kHz | ||
Maximum Output Voltage 0.4V | ||
Sensing Distance 4m | ||
Output Type Digital | ||
Mount Type Surface | ||
Package Type LGA | ||
Pin Count 12 | ||
Width 2.5mm | ||
Length 4.9mm | ||
Height 1.56mm | ||
Minimum Supply Voltage 2.6V | ||
Automotive Standard No | ||
Maximum Supply Voltage 3.5V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Series VL53L1 | ||
- COO (Country of Origin):
- CN

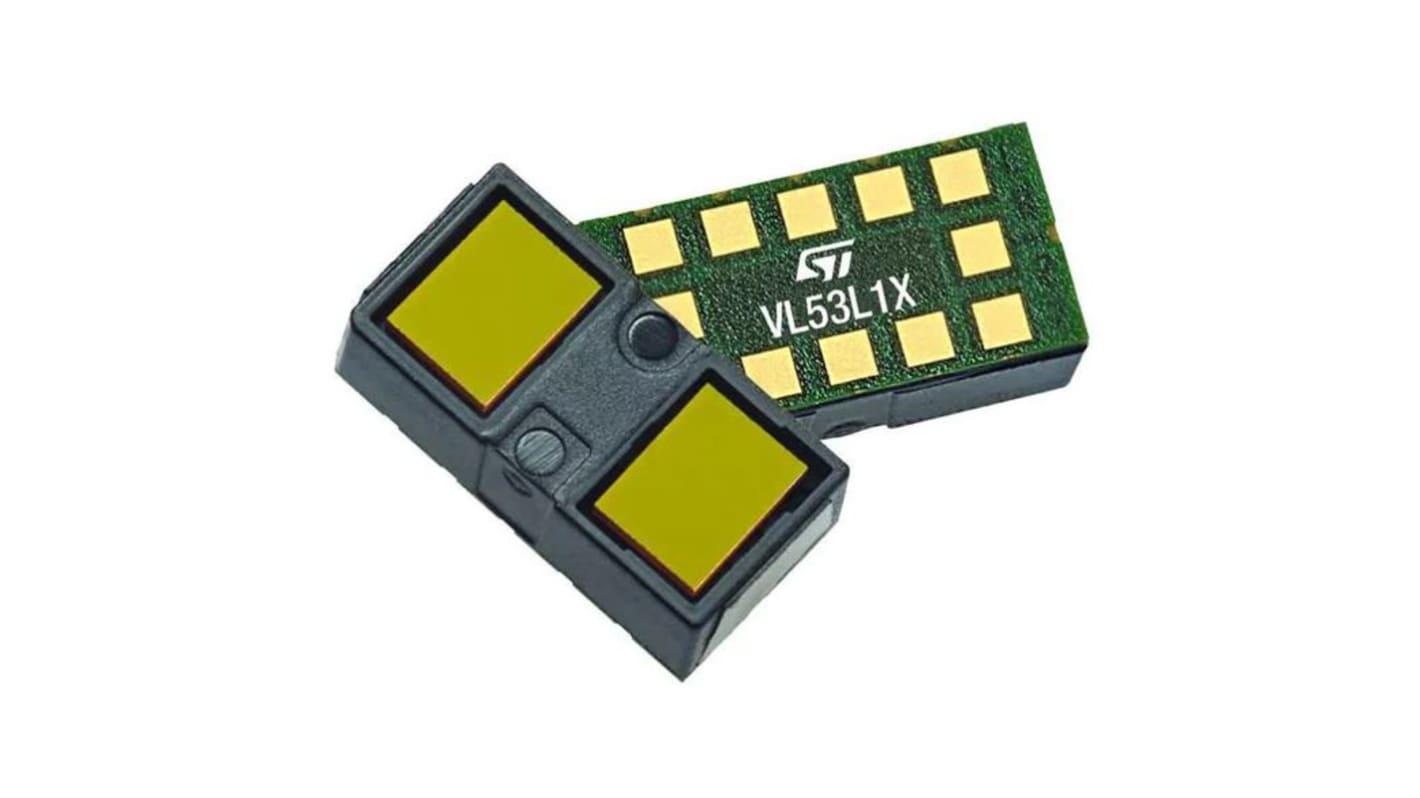

The STMicroelectronics VL53L1 is a state-of-the-art, Time-of-Flight (ToF), laser-ranging, miniature sensor enhancing STMicroelectronics’ Flight Sense product family. Housed in a miniature and reflow able package, it integrates a SPAD (single photon avalanche diode) array, physical infrared filters and optics to achieve the best ranging performance in various ambient lighting conditions, with a wide range of cover windows.
Fully integrated miniature module
Emitter: 940 nm invisible laser (VCSEL) and its analogue driver
Receiving array with integrated lens
Low-power microcontroller running advanced digital firmware
Size: 4.9 x 2.5 x 1.56 mm
