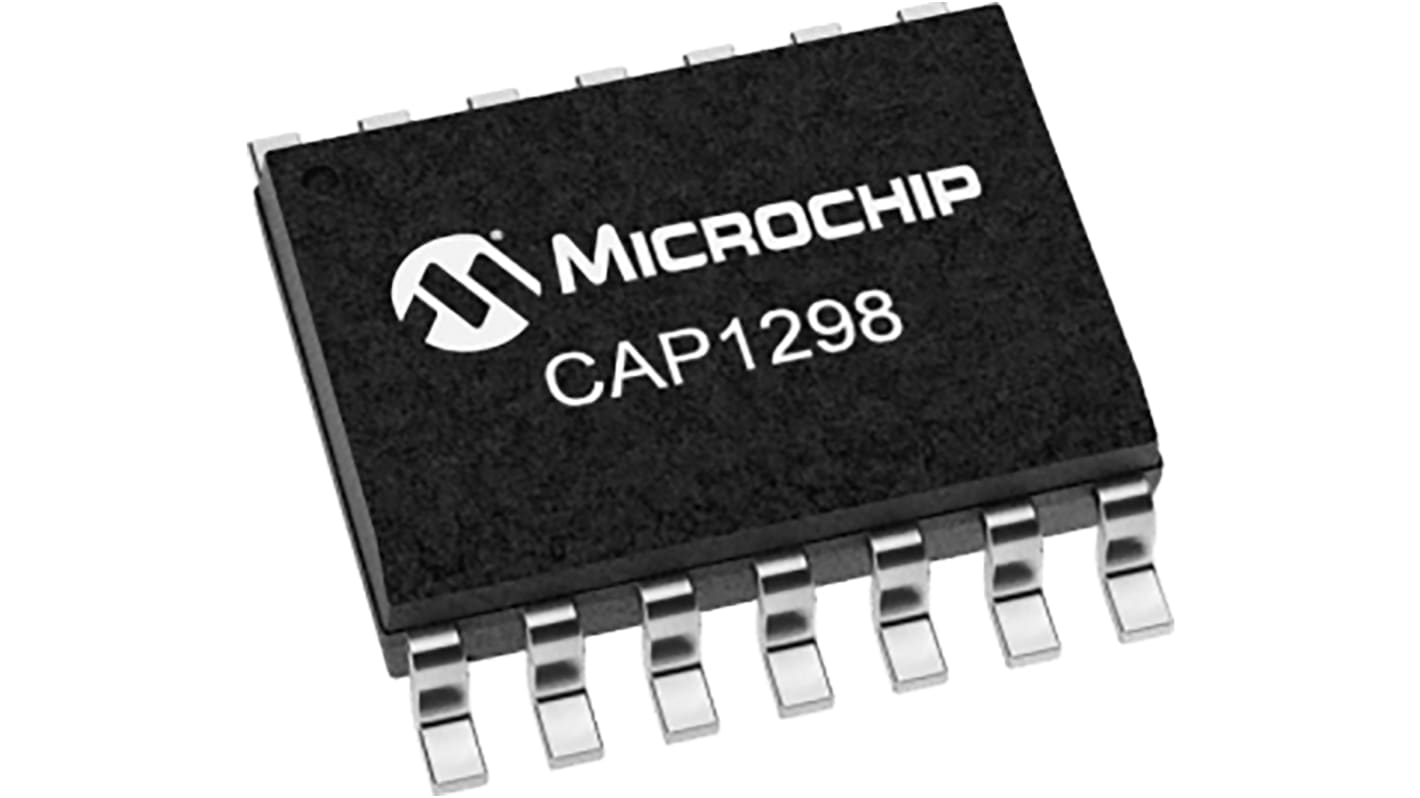

CAP1298-1-SL Microchip, CAP1298 Capacitive 3 V to 5.5 V 14-Pin SOIC

모든 Proximity Sensor ICs 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩16,882.40

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 30 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
10 - 10₩1,688.24₩16,882.40
20 +₩1,650.64₩16,506.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
177-1845
제조사 부품 번호:
CAP1298-1-SL
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Sensor Type

Capacitive

Maximum Switching Frequency

400 kHz

Maximum Output Voltage

0.4 V

Output Type

Open Drain

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Maximum Supply Current

750 μA

Dimensions

8.65 x 3.9 x 1.5mm

Height

1.5mm

Length

8.65mm

Series

CAP1298

Width

3.9mm

Maximum Operating Supply Voltage

5.5 V

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

3 V

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
TH
The CAP1298 is a turnkey capacitive touch controller providing a wide variety of button and proximity functionality, and making it easy for designers to add aesthetically pleasing, low-cost and robust touch interfaces. It also offers improved proximity detection with its Signal Guard option.

Additional Features:
8 Capacitive Touch Sensor inputs
Programmable sensitivity
Automatic recalibration
Combo Mode: Key and Proximity
Press and Hold feature for Volume-like Applications:
Proximity Detection
Signal Guard
Low Power operations
8kV protection
I²C™ and SMBus
3.0V to 5.5V
16-pin QFN, 14-pin SOIC

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
