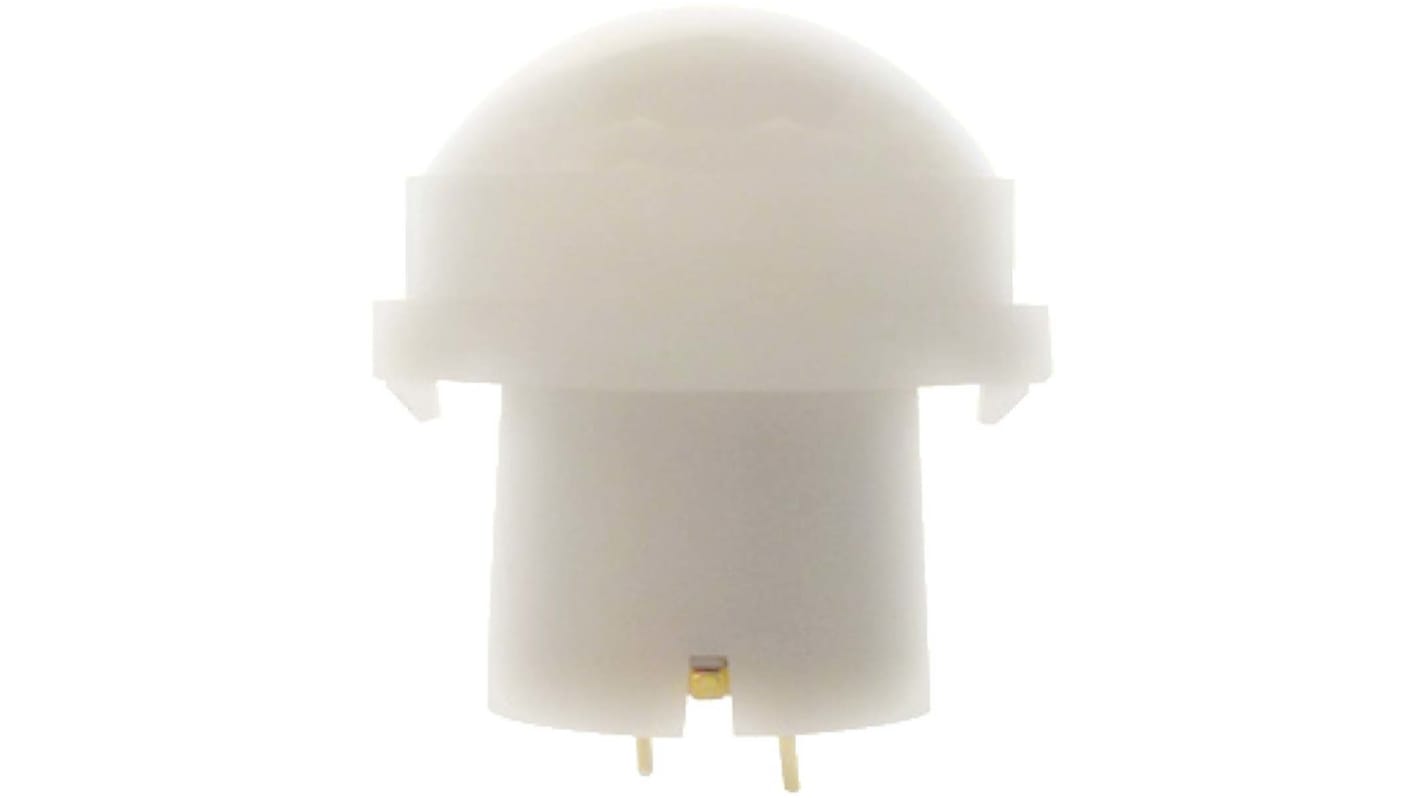

Panasonic EKMB Proximity Sensor 2.2 m -0.3 V 4.5V 3
- RS 제품 번호:
- 135-7106
- 제조사 부품 번호:
- EKMB1293112
- 제조업체:
- Panasonic
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 135-7106
- 제조사 부품 번호:
- EKMB1293112
- 제조업체:
- Panasonic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Panasonic | |
| Product Type | Proximity Sensor | |
| Maximum Output Current | 100μA | |
| Maximum Output Voltage | 500mV | |
| Sensing Distance | 2.2m | |
| Output Type | Digital | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Width | 14.9mm | |
| Height | 17.2mm | |
| Automotive Standard | No | |
| Series | EKMB | |
| Maximum Supply Voltage | 4.5V | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -20°C | |
| Minimum Supply Voltage | -0.3V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Panasonic | ||
Product Type Proximity Sensor | ||
Maximum Output Current 100μA | ||
Maximum Output Voltage 500mV | ||
Sensing Distance 2.2m | ||
Output Type Digital | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Width 14.9mm | ||
Height 17.2mm | ||
Automotive Standard No | ||
Series EKMB | ||
Maximum Supply Voltage 4.5V | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -20°C | ||
Minimum Supply Voltage -0.3V | ||
- COO (Country of Origin):
- JP
Panasonic Passive InfraRed (PIR) Motion Sensors, EKMB (WL) Series
Saturn Lens - Dual zone
Low Current consumption for battery-driven applications
Digital output
White, Pearl White and Black Colour options
EKMB1193xxx standby mode current consumption 1 μA
EKMB1293xxx standby mode current consumption 2 μA
EKMB1393xxx standby mode current consumption 6 μA
Differential Input circuit on EKMB1393xxx (6 μA type only) for applications where a high noise resistance is required
Operating Voltage 2.3 to 4 V
Motion Detectors
More detailed technical information is available from our web site.
