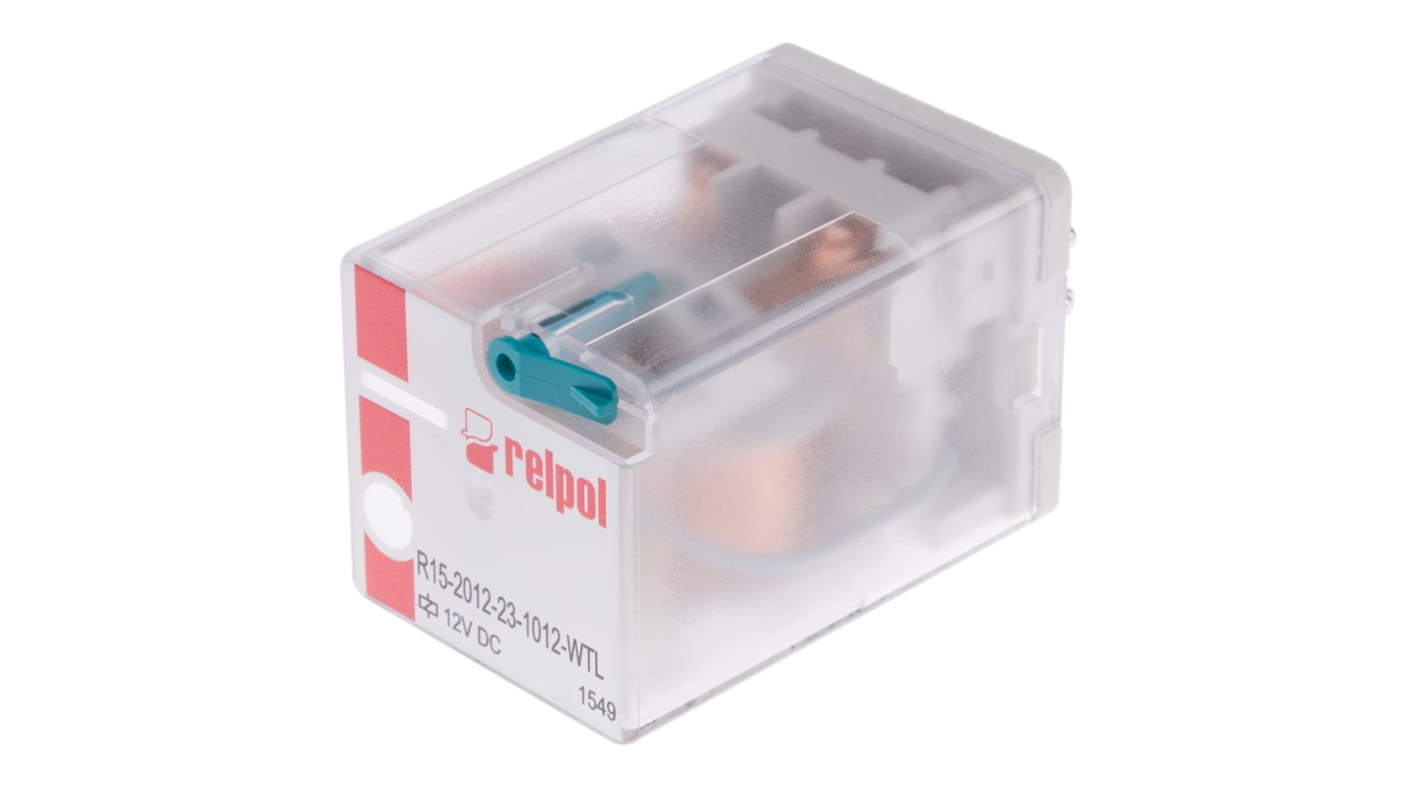

    Relpol Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT

    RS 제품 번호:
    805-2191
    제조사 부품 번호:
    R15-2012-23-1012-WTL
    제조업체:
    Relpol
    Relpol
    모든 Power Relays 열람하기
    27 <재고있음> 5-9영업일내 홍콩 발송
    Add to Basket
    수량

    추가완료!

    단가 Each

    ₩17,817.25

    수량한팩당
    1 +₩17,817.25
    RS 제품 번호:
    805-2191
    제조사 부품 번호:
    R15-2012-23-1012-WTL
    제조업체:
    Relpol
    COO (Country of Origin):
    PL

    제정법과 컴플라이언스

    COO (Country of Origin):
    PL

    제품 세부 사항

    Relpol Miniature Industrial Relays


    R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.


    R2N (2 CO), R3N (3 CO) and R4N (4 CO)
    Miniature dimensions
    Cadmium-free contacts
    AC and DC coils
    Relays may be provided with test buttons (non latching) and plugs
    RoHS compliant



    사양

    속성
    Coil Voltage12V dc
    Contact ConfigurationDPDT
    Mounting TypePlug In
    Switching Current10A
    Number of Poles2
    LatchingNo
    Terminal TypePlug In
    Coil Resistance110Ω
    Coil Power1.5W
    Maximum Switching Voltage AC440V
    Maximum Switching Voltage DC24V
    Length35mm
    Isolation Coil To Contact2.5kV ac
    Height35mm
    SeriesR15
    Depth54.4mm
    ApplicationGeneral Purpose
