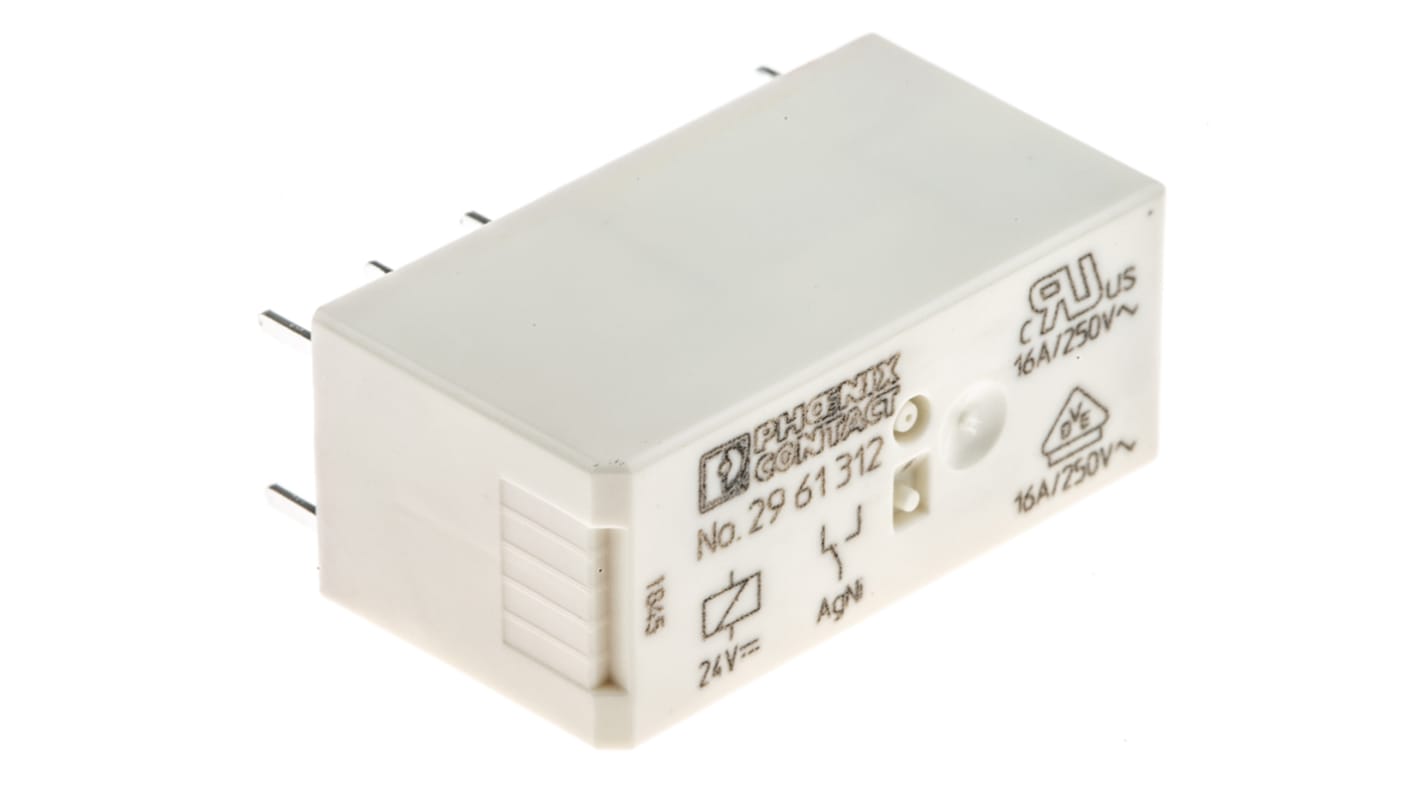

Phoenix Contact PCB Power Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS 제품 번호:
- 507-9972
- Distrelec 제품 번호:
- 304-01-207
- 제조사 부품 번호:
- 2961312
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩11,620.00
재고있음
- 추가로 2026년 11월 09일 부터 412 개 단위 배송
- 추가로 2026년 12월 04일 부터 110 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩11,620.00 |
| 25 - 49 | ₩11,440.00 |
| 50 - 99 | ₩11,120.00 |
| 100 - 249 | ₩10,760.00 |
| 250 + | ₩10,500.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 507-9972
- Distrelec 제품 번호:
- 304-01-207
- 제조사 부품 번호:
- 2961312
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | REL-MR- 24DC/21HC | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 4kVA | |
| Coil Resistance | 1.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Height | 29mm | |
| Width | 15.7mm | |
| Standards/Approvals | RoHS, VDE, EN, IEC, UL | |
| Length | 12.7mm | |
| Coil Power | 2kW | |
| Contact Material | Silver Alloy | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series REL-MR- 24DC/21HC | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -40°C | ||
Switching Power 4kVA | ||
Coil Resistance 1.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Height 29mm | ||
Width 15.7mm | ||
Standards/Approvals RoHS, VDE, EN, IEC, UL | ||
Length 12.7mm | ||
Coil Power 2kW | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- AT
Phoenix Contact Power Relay, 1440Ω Coil Resistance, 16A Switching Current - REL-MR- 24DC/21HC - 2961312
This power relay from Phoenix Contact opens and closes an electrical circuit using an internal coil. It keeps your circuit safe from overcurrent by automatically interrupting the power supply. The component is a non-latching type, so it saves energy by returning to a static NC position when the power is turned off. This feature also means there's no need for manual resetting.
A maximum switching voltage of 250V AC and 250V DC is on hand to support high-power and high-current applications. Thanks to its broad operating temperature range of -40°C to +85°C, this power relay is safe for use in industrial environments. Its compact size of 29 (H) x 12.7 (L) x 15.7mm (D) saves space in applications such as telecommunications equipment, keyboards and other household devices.
Features & Benefits
• Non-corrosive silver alloy contact material for a long service life
• Through-hole terminal type for wide compatibility
• Maximum switching power of 4kVA AC and 384W DC to handle high-power applications
• RoHS approved, meaning it's made with only trace amounts of any restricted materials that can harm your health
