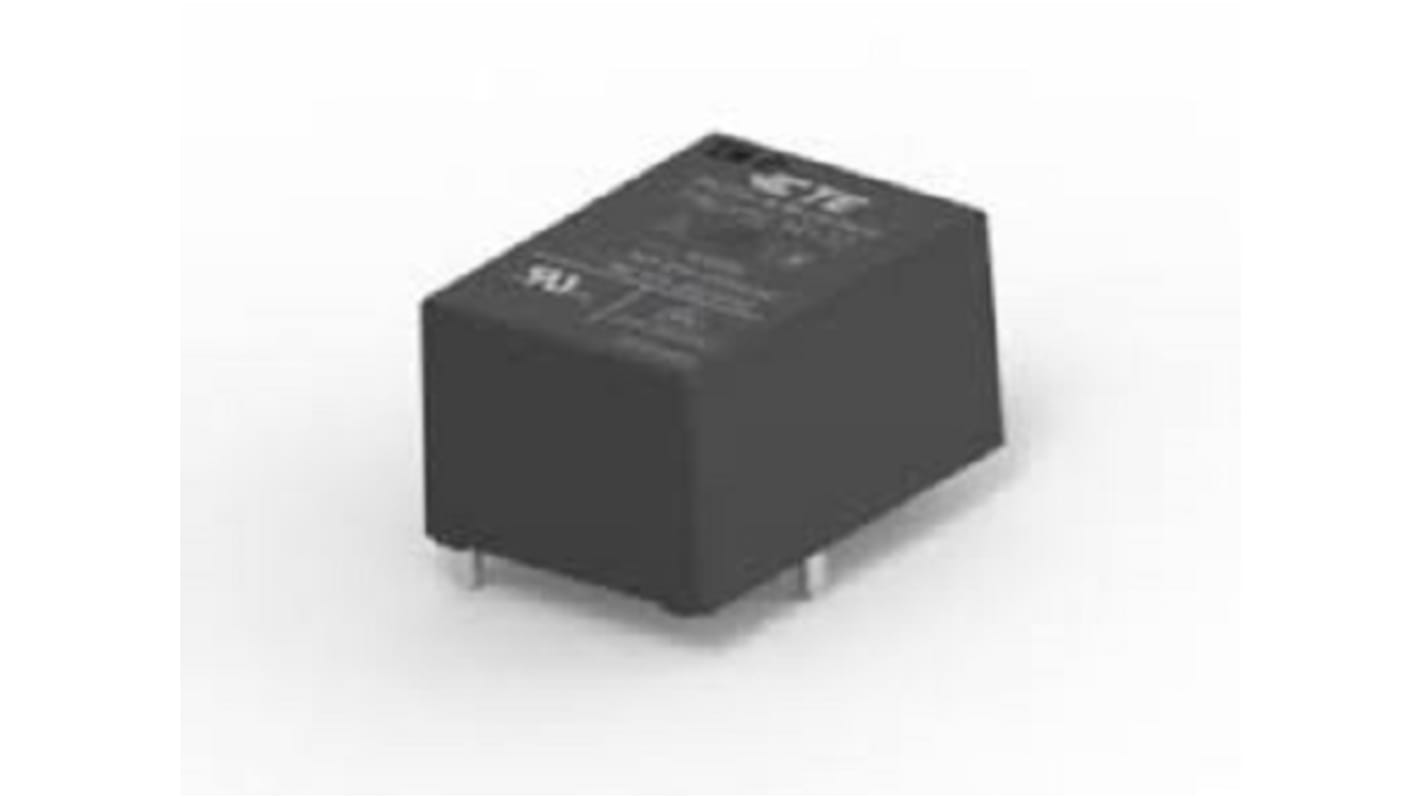

TE Connectivity PCB Non-Latching Relay, 24V dc Coil, 30A Switching Current, SPDT, SPST
- RS 제품 번호:
- 236-4561
- Distrelec 제품 번호:
- 304-50-212
- 제조사 부품 번호:
- 1558666-7
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (500 units, in boxes of 500)*
₩2,965,000.00
재고있음
- 500 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 500 - 2000 | ₩5,930.00 | ₩2,965,200.00 |
| 2500 + | ₩5,812.00 | ₩2,905,900.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 236-4561
- Distrelec 제품 번호:
- 304-50-212
- 제조사 부품 번호:
- 1558666-7
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT, SPST | |
| Mount Type | PCB | |
| Series | T9G | |
| Terminal Type | Solder | |
| Switching Current | 30A | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 640Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, UL | |
| Width | 10mm | |
| Height | 15mm | |
| Coil Power | 900mW | |
| Length | 20mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Non-Latching Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT, SPST | ||
Mount Type PCB | ||
Series T9G | ||
Terminal Type Solder | ||
Switching Current 30A | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 640Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, UL | ||
Width 10mm | ||
Height 15mm | ||
Coil Power 900mW | ||
Length 20mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
- COO (Country of Origin):
- PT
The TE - Automotive T9G series, DC Coil 30A PCB Relay is used in HVAC, Appliances, Industrial Controls, Energy Management and is UL approved for 480 VAC switching. WG versions are in accordance with IEC 60335-1.
30% smaller package size
Creepage or clearance with reinforced insulation
PCB and quick connect terminations
RoHS compliant cadmium free contact
Better PCB utilization in same footprint
